Top Quality HOWO Concrete Mixer Truck Export 4.29M3 for Building Industry

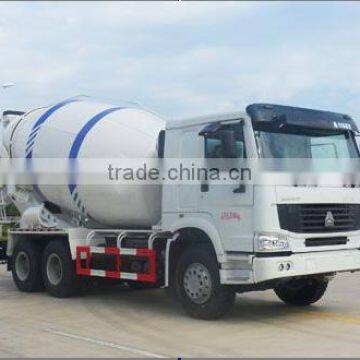

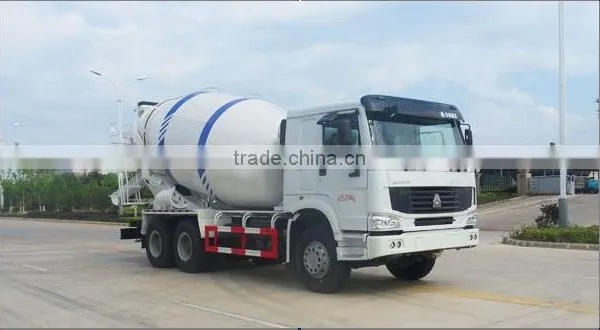

Top Quality HOWO Concrete Mixer Truck Export 4.29M3 for Building Industry photo-1
Top Quality HOWO Concrete Mixer Truck Export 4.29M3 for Building Industry photo-2
Top Quality HOWO Concrete Mixer Truck Export 4.29M3 for Building Industry photo-3
Top Quality HOWO Concrete Mixer Truck Export 4.29M3 for Building Industry photo-4
Top Quality HOWO Concrete Mixer Truck Export 4.29M3 for Building Industry photo-5

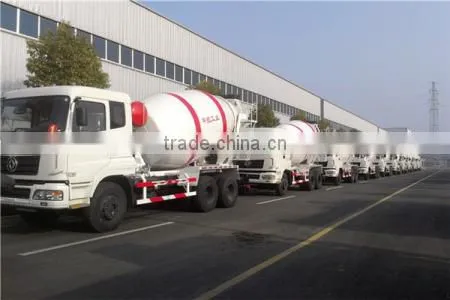

Top Quality HOWO Concrete Mixer Truck Export 4.29M3 for Building Industry photo-6
US$ 60,000 - 69,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
SHACMAN
Model Number:
JYC5250GJBSX4
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO or SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name SHACMAN
Model Number JYC5250GJBSX4
Gross Vehicle Weight 25000
Product Description

Top Quality HOWO Concrete Mixer Truck Export 4.29M3 for building industry


Concrete transport truck is used to transport concrete. Such devices are on the truck cylindrical mixing tube to carry the concrete after mixing. During transport always kept stirring drum rotation to ensure that concrete does not carry solidification. After the delivery of finished concrete, usually rinsed with water inside the mixing tube to prevent hardening of concrete space, so that the volume of the mixing tube is less and less.

Concrete mixer mainly has the undercarriage, the mixing tube, transmission (drive), hydraulic drive system, water system, installed (into) materials and material unloading system, discharge chute, platform, control systems and protective equipment.

Technicle Parameter:

JYC5250GJBSX4
Drive mode
6×4
Chassis model
SX5256GJBDR404
Engine
Model
WP10.336E40、WP12.336E40、WP12.375E40、ISM11E4 345、ISM11E4 385
Max. power(Kw)
247、247、276、250、280
Displacement(cc)
9726、11596、11596、10800、10800
HP
336、336、375、345、385
Fuel consumption(L/100Km)
37.08、37.21、37.33、37.01、37.21
Type of fuel
Diesel
Emission Standard
GB IV
Max. speed(km/h)
77
Gearbox
FAST 9JS119T
Tyre
Size
11.00-20 18PR,11.00R20 16PR
12.00-20 16PR,12.00R20 14PR
Overall dimension (mm)
9900,9400 x 2500 x 4000
Wheel base (mm)
3775+1400;3975+1400
Front/Rear tread(mm)
2036,1860/1860
Front/Rear suspension(kg)
1525/3000,1525/2700
Appr./Depa. angel (°)
20/18,20/19
Axle Load(kg)
7000/18000(Dualaxial)
Mass
Payload(Kg)
10420, 10355
Curb weight(Kg)
14450
G.V.W(Kg)
25000
Special function
Mixing capacity(m³)
4.29
Material of Lateral protection
Q235A
ABS
XI'AN KING-TRUCK ELECTRON CO.,LTD, KORMEE AUTOMOTIVE ELECTRONIC CONTROL TECHNOLOGY CO.,LTD, ZHEJIANG VIE SCIENCE&TECHNOLOGY CO.,LTD
Type
ZQFB-V、CM4XL-4S/4K、VIE ABS-Ⅱ

Performance characteristics

1. Reliable quality and high operational stability

2. High strength, durable, and long service life

3. High working efficiency

4. Attractive appearance

5. Optional

Detailed Images
Other Products
Our Company

Company Profile

China Hi-Tech Group Corporation(CHTC) is a state-owned large scle central enterprise supervised by SASAC.

Hongda as one of the subsidiaries holded by CHTC is the designated manufacturer of the series of Special Vehicles, founded in 1998.

Packing & Delivery
1,Attached parts and tools put into standard export box.

2,Concrete transport truck will be cleaned and covered with wax before delivery.

3,Concrete transport truck will be covered by waterproof cloth at the departure port.

4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.

5,Some small concrete transport truckcan be put into container according to its overall dimensions.

We can ship construction machinery by various transportation tools.

(1) For 90% of our shipment, we will go by sea, to all main continents such as Middle East, Africa, Oceania and Europe,  South America,etc. Either by container or RoRo/Bulk shipment.

(2) For neighborhood countries, such as Russia, Mongolia, Kazakhstan, Uzbekistan
etc.,we can ship construction machinery by road or railway.

FAQ

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
