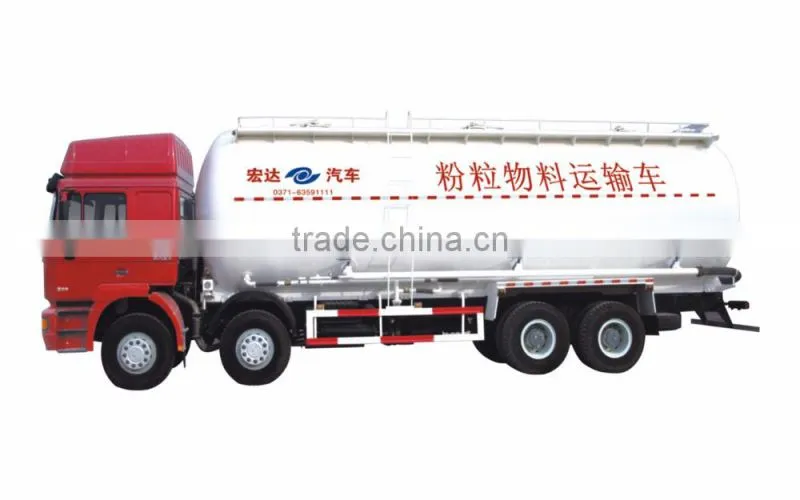

Bulk Cement Tank Truck, 32m3 Effective Volume

Bulk Cement Tank Truck, 32m3 Effective Volume photo-1

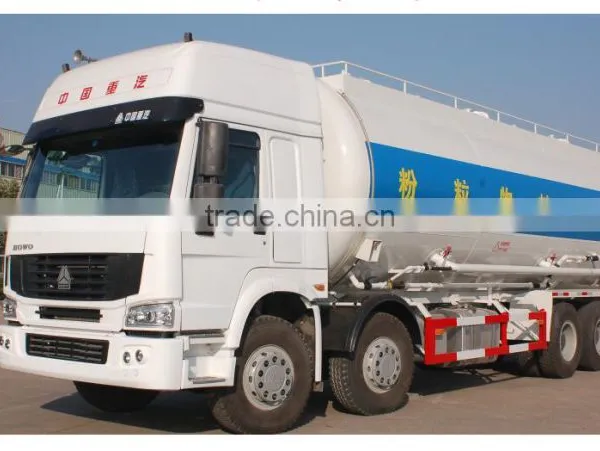

Bulk Cement Tank Truck, 32m3 Effective Volume photo-2

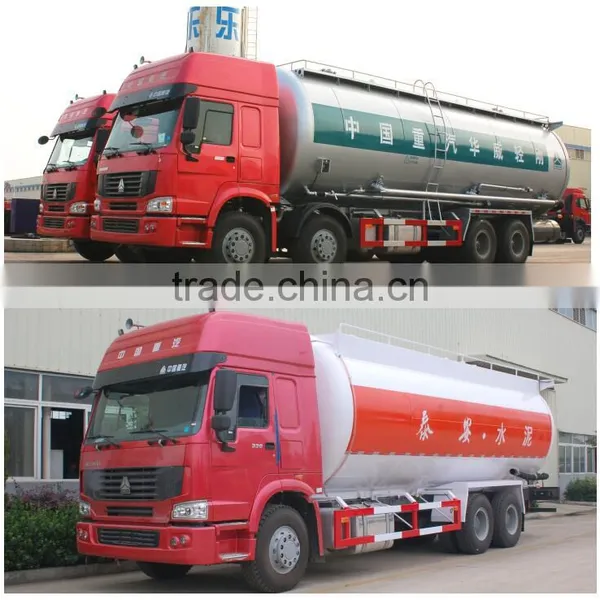

Bulk Cement Tank Truck, 32m3 Effective Volume photo-3

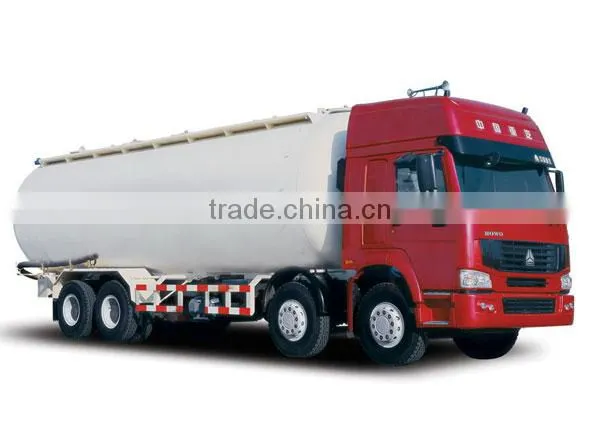

Bulk Cement Tank Truck, 32m3 Effective Volume photo-4

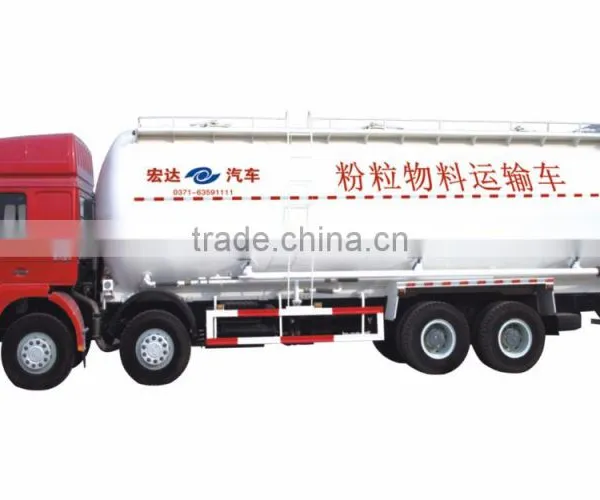

Bulk Cement Tank Truck, 32m3 Effective Volume photo-5

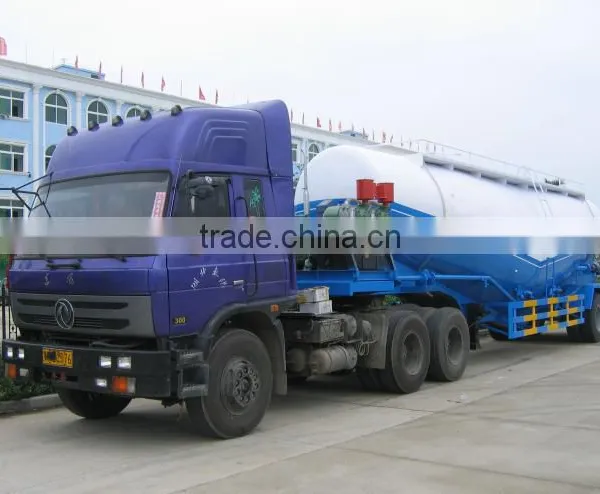

Bulk Cement Tank Truck, 32m3 Effective Volume photo-6
US$ 1 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Dongfeng
Model Number:
JYC5250GFLDFL1
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO or SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Dongfeng
Model Number JYC5250GFLDFL1
Gross Vehicle Weight 25000
Product Description

Bulk Cement Tank Truck, 32m³ Effective Volume

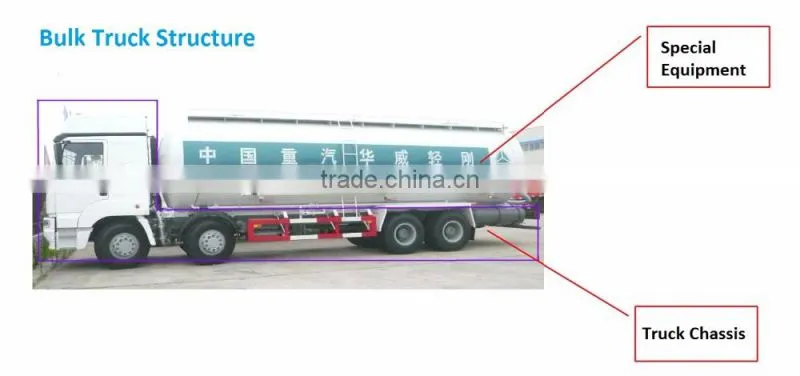

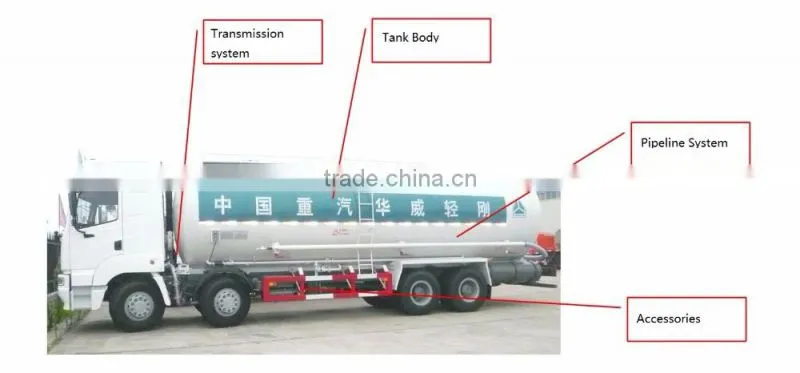

Bulk cement truck is composed of special automobile chassis, bulk cement tank, gas pipeline system, automatic unloading device, etc.

It applies to transportation of dry bulk powder material, such as coal powder, cement, lime powder, ore powder, polyethylene, flour, granular materials, and other particles with diameter less than 0.1mm. It is mainly used by cement plant, cement warehouses and large construction sites. In this way, they can save a lot of packaging materials and loading and unloading work.

Technicle Parameter:

JYC5250GFLDFL1
Drive mode
8×4
Chassis model
DFL1250A11
Engine
Model
ISDe270 40、ISDe245 40、ISC8.3-245E40A
ISC8.3-270E40A、ISC8.3-292E40A
Max. power(Kw)
198; 180; 180; 198; 215
Displacement(cc)
6700; 6700; 8300; 8300; 8300
HP
270; 245; 245; 270; 292
Fuel consumption(L/100Km)
34.38; 35.23; 36.34; 36.31; 36.96.
Type of fuel
Diesel
Emission Standard
GB IV
Max. speed(km/h)
90
Gearbox
FAST 8JS118T-B
Tyre
Size
10.00-20 18PR、10.00R20 18PR、11.00-20 18PR
11.00R20 16PR,295/80R22.5 16PR
Overall dimension (mm)
9690 x 2500 x 3700
Wheel base (mm)
4350+1350
Front/Rear tread(mm)
1986/2040; 1860/1860
Front/Rear suspension(kg)
1460/2130mm, 1460/2080mm
Appr./Depa. angel (°)
20/16
Axle Load(kg)
7000/18000(Dualaxial)
Mass
Payload(Kg)
11220,11155
Curb weight(Kg)
13650
G.V.W(Kg)
25000

Features:

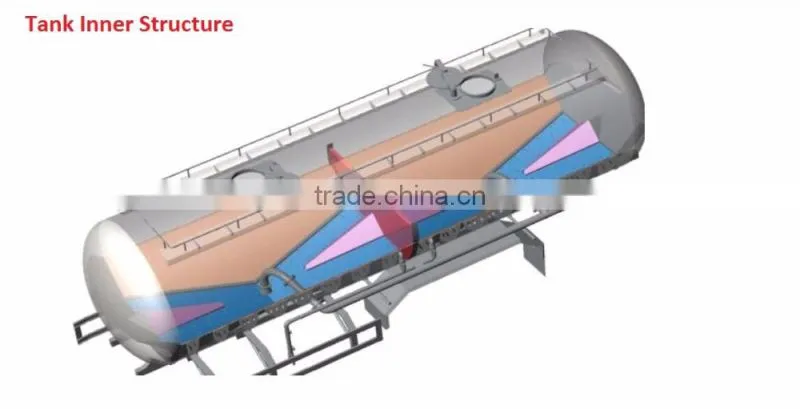

1 .Bulk cement truck tank is mainly composed of a cylinder, upper feed inlet of tank, fluidized bed, discharge pipe assembly, intake pipe and other accessories. The top of the tank body is provided with two or three feed inlet.


2 .Circular tank. Tank material can choose carbon steel, stainless steel or aluminum alloy.


3 .According to demand, the tank can be independent of bin storage, shipping different powder materials, fast discharging speed, low residual rate, high safety performance, convenient operation.


4 .Tank and metal accessories were shot peening, strong adhesion, good corrosion resistance, paint film uniformity, durable color bright, be able to bear moisture, dust, salt fog and other adverse environment.

Detailed Images

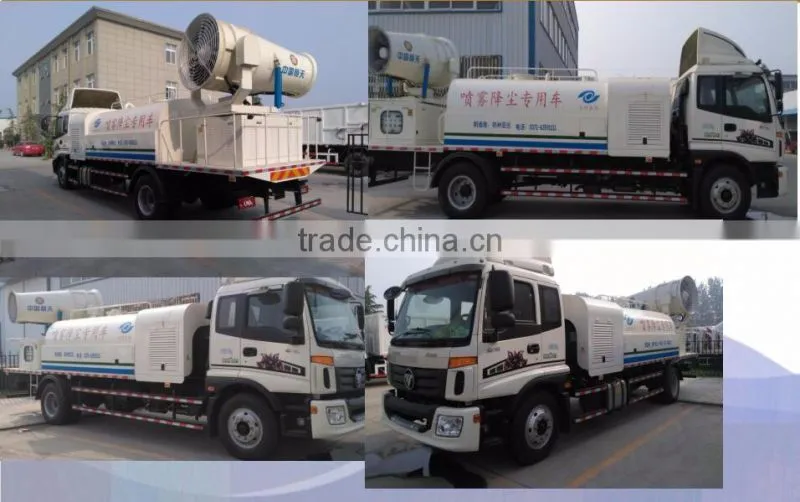

Other Products
Our Company

Company Profile

China Hi-Tech Group Corporation(CHTC) is a state-owned large scle central enterprise supervised by SASAC.

Hongda as one of the subsidiaries holded by CHTC is the designated manufacturer of the series of Special Vehicles, founded in 1998.

Packing & Delivery
1,Attached parts and tools put into standard export box.

2,Concrete transport truck will be cleaned and covered with wax before delivery.

3,Concrete transport truck will be covered by waterproof cloth at the departure port.

4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.

5,Some small concrete transport truckcan be put into container according to its overall dimensions.

We can ship construction machinery by various transportation tools.

(1) For 90% of our shipment, we will go by sea, to all main continents such as Middle East, Africa, Oceania and Europe,  South America,etc. Either by container or RoRo/Bulk shipment.

(2) For neighborhood countries, such as Russia, Mongolia, Kazakhstan, Uzbekistan
etc.,we can ship construction machinery by road or railway.
