High Quality Demountable Tanker Transport Truck

High Quality Demountable Tanker Transport Truck photo-1
High Quality Demountable Tanker Transport Truck photo-2
High Quality Demountable Tanker Transport Truck photo-3
High Quality Demountable Tanker Transport Truck photo-4
High Quality Demountable Tanker Transport Truck photo-5

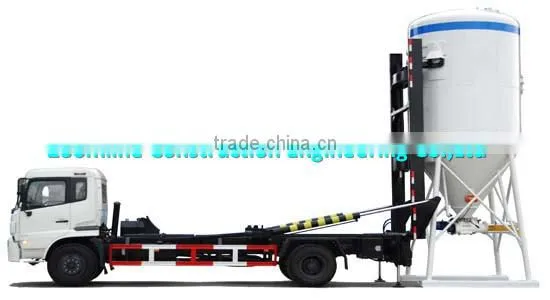

High Quality Demountable Tanker Transport Truck photo-6
US$ 1 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
FOTON
Model Number:
JYC5130ZBGBJ1
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO or SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name FOTON
Model Number JYC5130ZBGBJ1
Gross Vehicle Weight 13495
Product Description

High Quality Demountable Tanker Transport Truck


Demountable tank transport truck is a truck which can transport the demountable silo to another work site with dry-mixed mortar. By cooperating with hydraulic system and handling system, this truck can easily unload and transport the silo of mortar.

Technicle Parameter:

JYC5130ZBGBJ1
Drive mode
4×2, 6 wheels
Chassis model
BJ1139VJPEK-F1
Engine
Model
ISF3.8s4168
Max. power(Kw)
125
Displacement(L)
3.76
HP
170
Fuel consumption(L/100Km)
27.46
Type of fuel
Diesel
Emission Standard
GB IV
Max. speed(km/h)
95
Gearbox
DC6J75TC
Tyre
Size
8.25-20 16PR、8.25R20 16PR
9.00-20 16PR、9.00R20 16PR、10R22.5
Dimensions
Overall dimension (mm)
9000×2480×2756
Wheel base (mm)
5600
Front/Rear tread(mm)
1930/1800
Front/Rear suspension(kg)
Appr./Depa. angel (°)
2 1/10
Axle Load(kg)
Mass
Payload(Kg)
5300
Curb weight(Kg)
8000
G.V.W(Kg)
13495
Mobile Silo
Max Load(t), Max Diameter(mm)
≤13t, ≤2500mm
ABS
WABCO Vehicle Control Systems/KORMEE AUTOMOTIVE ELECTRONIC CONTROL TECHNOLOGY CO.,LTD
Type
44600XXXX0/CM4XL-4S/4M

Product advantage & Feature:


1.Strong capability, high & far throw range, wide coverage area, achieve precise volume spraying, high efficiency and spray speed.
2. Micro fog droplet, form a wet mist touching the floating dust, high speed knock down the dust.
3. Flexible power: three-phase 380V and diesel generator power supply optional
4. Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5. Flexible, safe & reliable to use. Remove control & manual control operation. Easily adjust the spray angle of horizontal rotation.
6. Compare to tank car, water consumption save 70% ~80%, wide coverage area.



Using :



Detailed Images
Other Products
Our Company

Company Profile

China Hi-Tech Group Corporation(CHTC) is a state-owned large scle central enterprise supervised by SASAC.

Hongda as one of the subsidiaries holded by CHTC is the designated manufacturer of the series of Special Vehicles, founded in 1998.

Packing & Delivery
1,Attached parts and tools put into standard export box.

2,Concrete transport truck will be cleaned and covered with wax before delivery.

3,Concrete transport truck will be covered by waterproof cloth at the departure port.

4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.

5,Some small concrete transport truckcan be put into container according to its overall dimensions.

We can ship construction machinery by various transportation tools.

(1) For 90% of our shipment, we will go by sea, to all main continents such as Middle East, Africa, Oceania and Europe,  South America,etc. Either by container or RoRo/Bulk shipment.

(2) For neighborhood countries, such as Russia, Mongolia, Kazakhstan, Uzbekistan
etc.,we can ship construction machinery by road or railway.

FAQ

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
