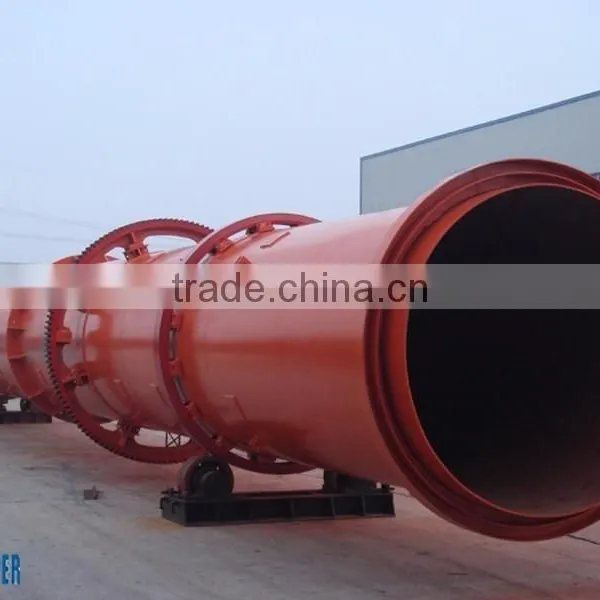

Rotary drum dryer, clay rotary dryer design
The rotary dryer machine, sometimes known as a rotary kiln, is a type of industrial dryer employed to reduce or minimize the moisture content of the material it is handling by bringing it into direct contact with heated gas. The dryer is made up of a large, rotating cylindrical tube, usually supported by concrete columns or steel beams. The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity. Material to be dried enters the higher end of the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot air stream as it falls. This air stream can either be moving toward the discharge end from the feed end (known as a co-current rotary dryer), or toward the feed end from the discharge end (known as a counter-current rotary dryer). The air stream can be made up of a mixture of air and furnace exhaust fumes (known as a direct heated dryer) or simply hot air (known as an indirect-heated dryer, which generally carries a lesser risk of causing product contamination).
The rotary dryer is also capable of calcining the material, or mixing two or more materials, and sometimes stimulating a reaction between two or more materials. The rotary kiln (as it is called when it is not being used to dry a material) is commonly used in the cement industry to cause a key reaction between two of its major components.
Typical material rotary dryer machine process include: aggregates, agricultural grains and by-products, animal feeds, animal waste, biosolids, ceramics, clay, fertilizers, gypsum, iron ore concentrates, limestone, metal chips and shavings, mining ores and concentrates, municipal sludge, municipal waste, organic and inorganic chemicals, paper sludge, plastic pellets, potash, reclaimed dust, rubber pellets, sales, sand steel mill waste / sludges, sugar urea prills and crystals.

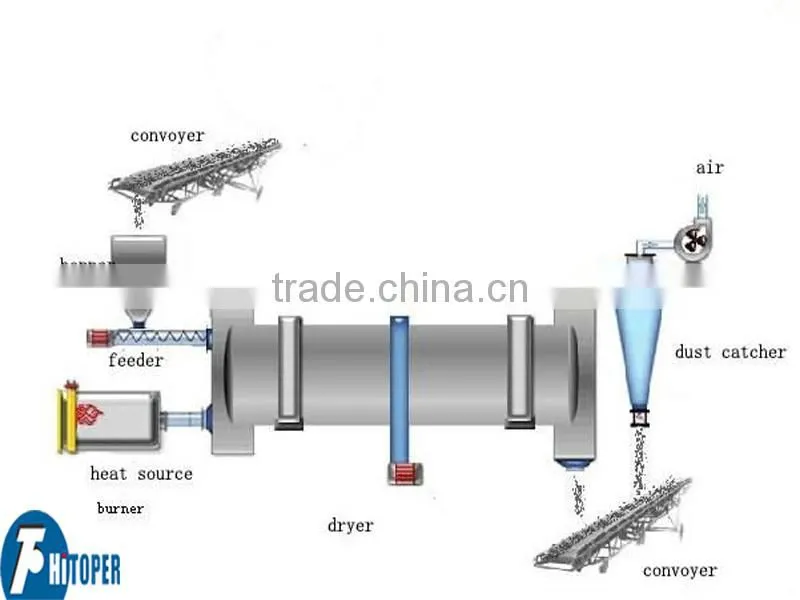

Rotary dryer machine flow chat,

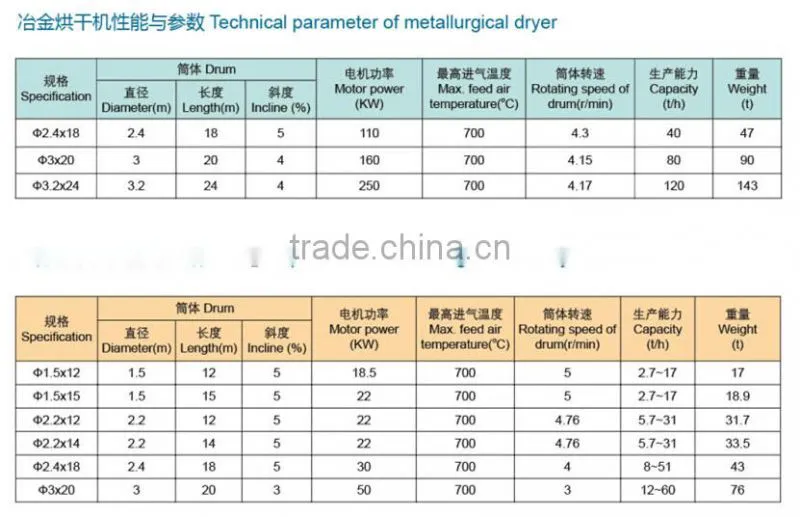

Rotary dryer machine parameters:
Zhengzhou Toper company is the leading supplier if industrial equipemnt in China, and also the professonal exporter and service provider of mining machinery. we forcus on complete service for design to after sales and spare parts fast supply on such aspects: ore crush and grind equpments, large and medium scale mingin production line, cement production line of less than 5000t/d, ball mill for coal, full set of production equipments for oxide pellet, full set of production line for reduced iron, full set of production line for petroleum coke calcined, production line of crushing ans screening and various specification desulfuration, power making system, etc.
Factory capacity.

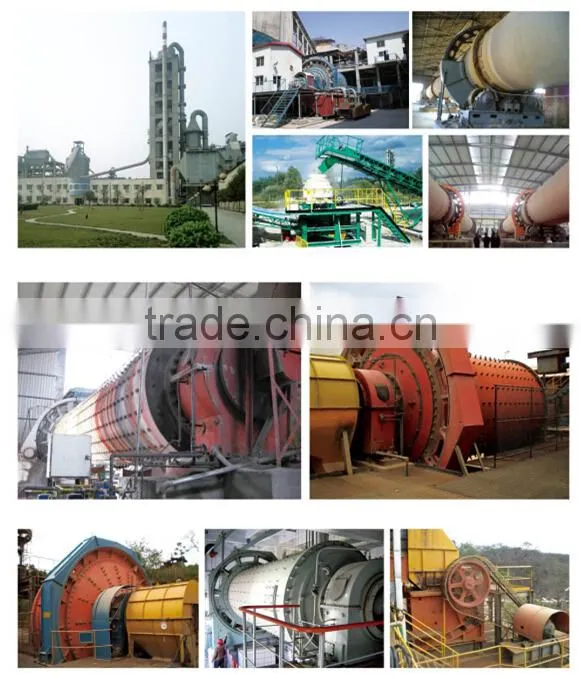

Project case:
All of our products:
1. Grinding mill: Rod mill, Lttice type ball mill, Overflow type ball mill, Low speed mill for coal grinding, Air-swept coal mill, Coal slurry mill, Vertical mill, Air-swept drying raw material mill, Tube mill, Swing mill.
2. Rotary kiln: Rotary kiln, Rotary kiln for construction material
3. Rotary dryer
4. Roller press machine
5. Crusher: Roller crusher, Jaw crusher, Cone crusher, High efficiency cone crusher, Impact crusher, Single-stage hammer crusher, Hammer crusher
6. Vacuum crusher
7. Apron feeder, vibration feeder, vibration screen, belt conveyor, bucket elevator, magnetic separator, flotation machine, spiral classifier and so on.
Contact infos,
Company, Zhengzhou Toper Industrial Equipment Co., Ltd
Add: No. 101, Nanyang Road, Zhengzhou city, Henan, China
Tel: 0086-371-8608-1678
Skype, chinatoper003
