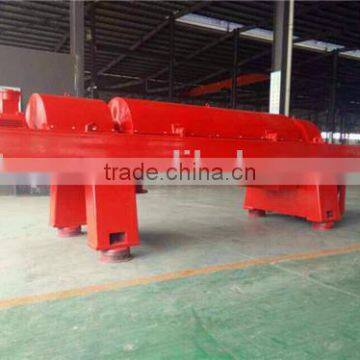

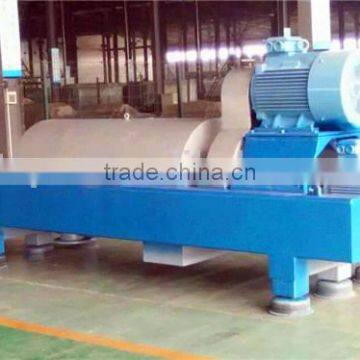

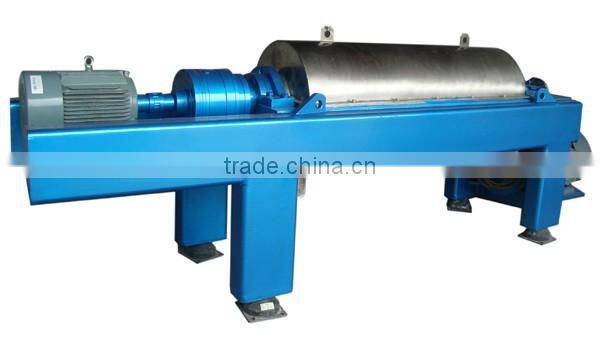

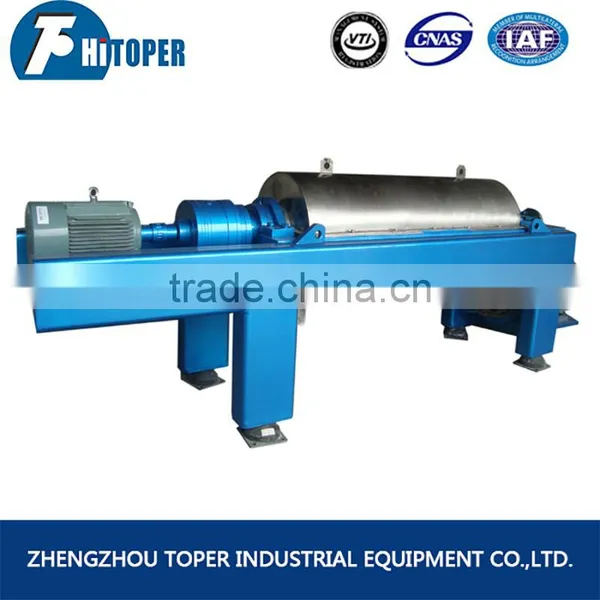

solid liquid separation decanter centrifuge
Structures and properties

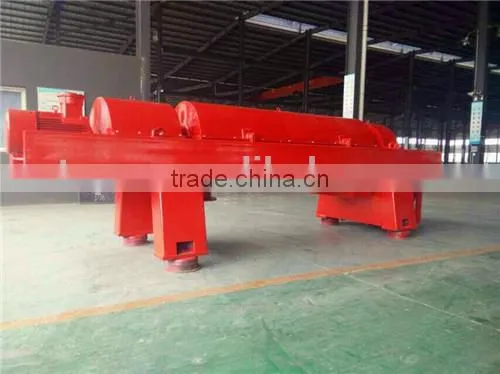

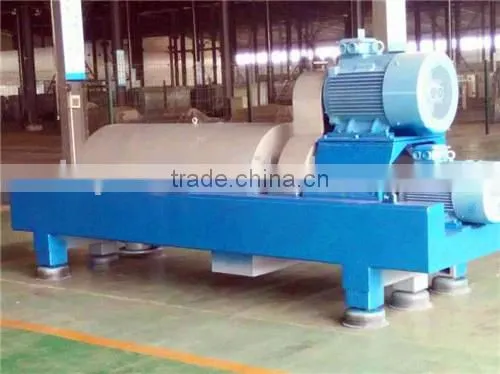

Model LW solid liquid separation decanter centrifuge is the mechanical equipment used for continuously separation the materials in the suspension with density difference, by the principle of centrifugal settling. LW series centrifuge is a kind of deposition equipment of horizontal spiral discharge, continuous operation. The basic principle is the drum and the spiral feeder rotate in the same direction but with a certain speed difference; The material is led into the feeding spiral inner cylinder via the feeding pipe and after speeding up, enters the drum; Under the action of the centrifuge force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; The solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and after dehydration in the drying area, is discharged under full-speed running. It enjoys such features as compact structure, continuous operation, smooth running, strong adaptability to the separation material, large handling capacity, convenient maintenance, etc.
Application
LW series solid liquid separation decanter centrifuge is applicable to the separating of the suspension containing solid-phase granules with the diameter greater than 0.005mm and with the concentration being 2-40%.
solid liquid separation decanter centrifuge has wide applications in such trades as chemical, light industry, pharmacy, food, environmental protection, etc. for example: adipic acid, alum, aluminum hydroxide, ammonium hydrogen carbonate, ammonium chloride, ammonium nitrate, ammonia sulfate, anthracene, antibiotics, barium chloride, barium carbonate, barium sulfate, benzene, benzene carbonic acid, blood products, blue vitriol, borax, boric acid, pot ale, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, fiber, chrome pillow, clay, methylcellulose, coal flotation waste, corundum, velveteen, corn embryo, starch, coconut milk, food oil, fish processing, salt cake, mirabilite, hops, pesticide, diatomite, herbicide, tartaric acid, sodium sulfate, sodium phosphate, sodium nitrate, charcoal black, etc.
Order Notice
- Material: The parts contacting the processing material can be made of carbon steel, special stainless steel, titanium alloy, etc.
- Antifriction treatment: spiral feeder coated with abrasion resistance material, or inlaid with hard alloy slice, or corundum ceramic plate, the sludge outlet can be inlaid with hard alloy bush or corundum ceramic bush.
- Structure type: counter flow type, concurrent flow type and three phase separating type. Speed adjustment: stepless speed regulation of the drum rotation; spiral differential speed adjustable at will.
- Speed adjustment: stepless speed regulation of the drum rotation; spiral differenctial speed adjustable at will.
- Bearing lubrication: with grease lubrication, oil lubrication or forced oil circulation lubrication for option.
- Safe protection: with over-vibration protection, bearing temperature on-line checking, display & overheating protection or motor overheating protection for option.
- It can be designed and manufactured as per GMP specifications.
Main technical parameters
Model |
Structure type |
Rotating drum |
Rotating speed (r/min) |
Separation factor |
Processing capacity of admixtures (m3/h) |
Motor power(kw) |
Total weight |
|
Dia.(mm) |
Length-to -diameter ratio |
|||||||
LW230 |
Counter flow type |
700-920 |
3-4 |
4800 |
3400 |
0.5-1 |
7.5 |
800-1150 |
LW355 |
Counter flow type |
860-1460 |
2.42-4.11 |
3500 |
2500 |
2-8 |
18.5+5.5 |
1800-2130 |
LW450 |
Counter flow type |
1350-1800 |
3-4 |
3000 |
2300 |
6-20 |
30+11 |
2360-2730 |
LW630 |
Counter flow type |
1900-2500 |
3-4 |
2200 |
1700 |
10-30 |
30+15 |
4800-5140 |
LW710 |
Counter flow type |
1800-2500 |
2.5-3.5 |
1800 |
1300 |
15-45 |
37+18.5 |
5750-6350 |
Our company produces various models of recessed plate and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and fully automatic filter press and filter press spare parts. And our filter presses are used in a wide variety of mining, coal washing, acid clay, bentonite, kaolin, ceramics, cement, clay, sand industry etc.
For filter press, there are several kinds:
1. Membrane filter press
2. Hydraulic compress filter press(chamber type, plate and frame type)
3. Automatic filter press(chamber type, plate and frame type, membrane type)
4. Filter press of stainless steel plate
5. Cast iron plate and frame/chamber filter press(for palm oil)
6, High pressure round filter plate filter press(solid-liquid separation for stone, ceramic, kaolin, building materials)
7. Belt filter press (for sludge dewatering , waste water treatment, coal washing, printing and dyeing industry)
For centrifuge, there are several types for reference:
1. From structure: SS three-foot type, PD type, LW horizontal type, Tubular centrifuge, etc.
2. From usage: filter centrifuge, decanter centrifuge.
3. From drum dia.: 300-1600mm.
4. From drum load limit: 10-1200kg

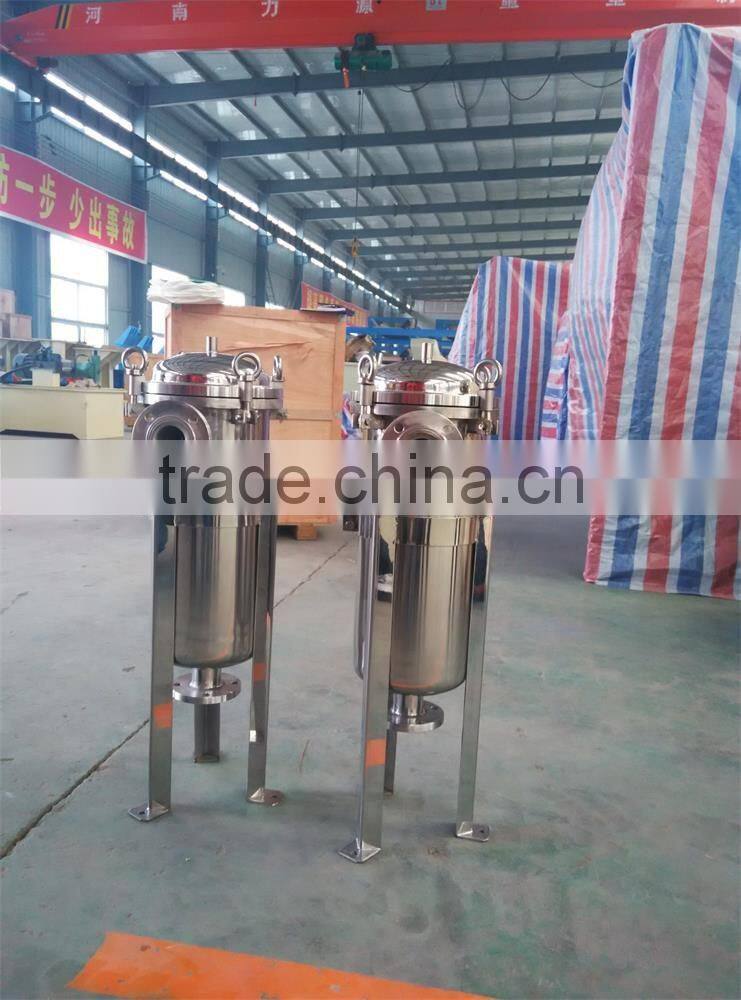

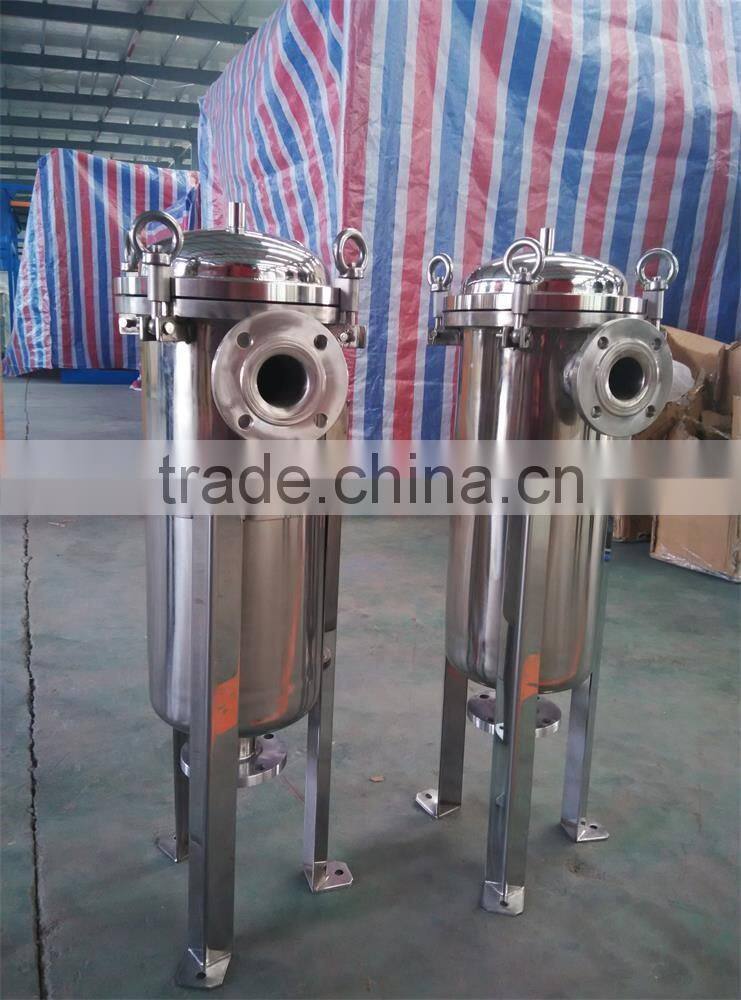

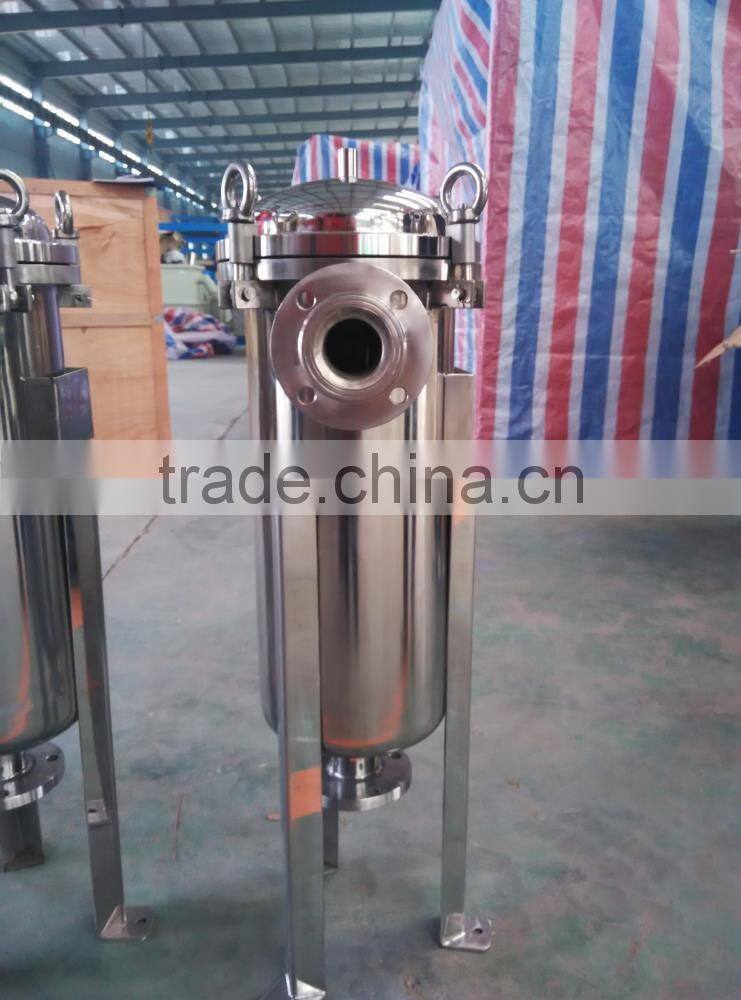

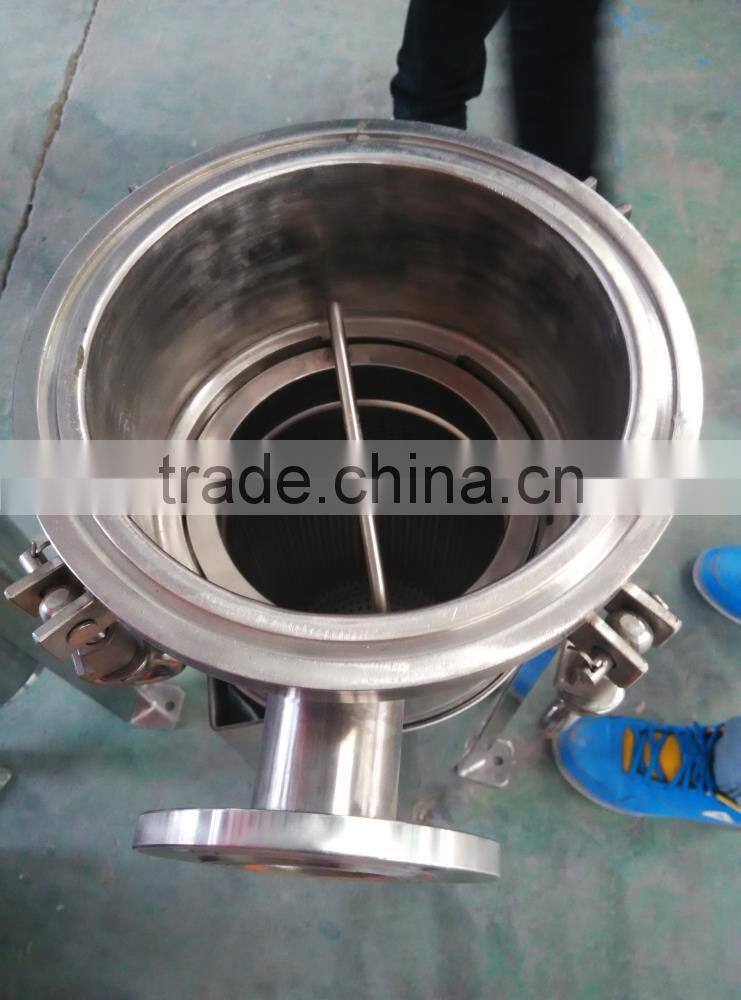

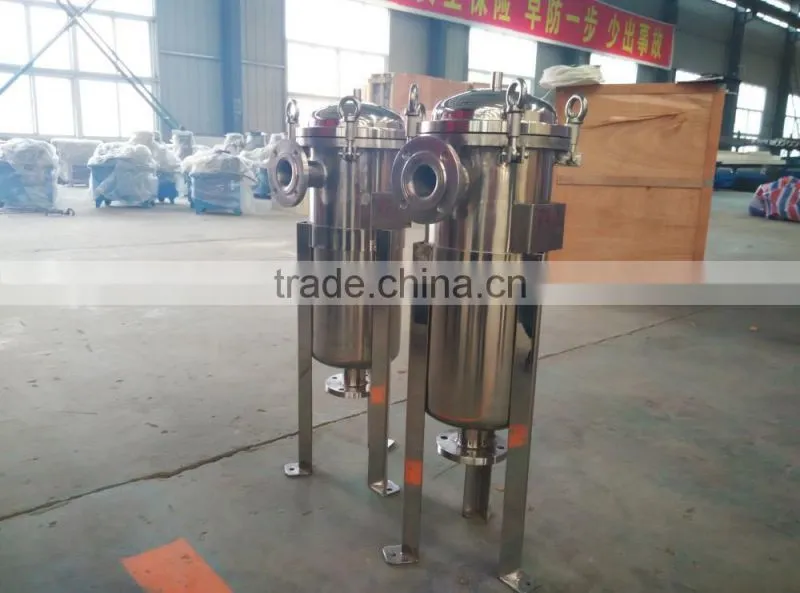

Bag filter:
