Grain Gravity Table Separator Machine

Grain Gravity Table Separator Machine photo-1

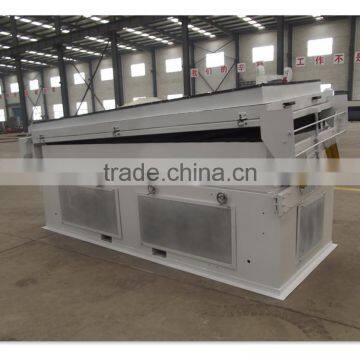

Grain Gravity Table Separator Machine photo-2
Grain Gravity Table Separator Machine photo-3

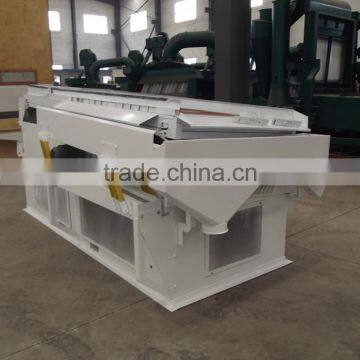

Grain Gravity Table Separator Machine photo-4

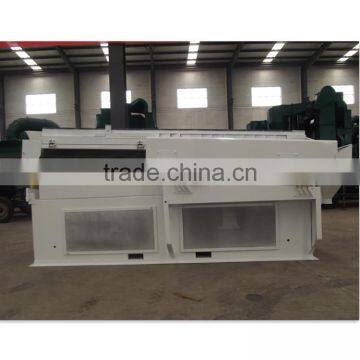

Grain Gravity Table Separator Machine photo-5
Grain Gravity Table Separator Machine photo-6
US$ 9,510 - 9,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
grain cleaning machinery
Use:
grain seed cleaning
Certification:
ISO,TUV,SGS
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.
Type grain cleaning machinery
Use grain seed cleaning
Certification ISO,TUV,SGS
Place of Origin Hebei, China
Brand Name SYNMEC
Model Number 5XZ-6
Condition New
After-sales Service Provided Engineers available to service machinery overseas

grain gravity table separator machine



Introduction of 5XZ-6 separator:



5XZ-6 bean separator is the blowing type bean separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.



Application of 5XZ-6 separator:



The bean separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The bean separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.

The bean separator also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.



Working Principle of 5XZ-5 separator:



The bean separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.



Specification of bean separator :



Model No.

Capacity(T/H)

Power(KW)

Weight(KG)

Sieve Size

Dimensions(MM)

Remarks

5XZ-3B

3

4.25

1100

2000×325

4000×1800×2900

Suction Type

5XZ-5B

5

9

1550

2000×625

4000×2050×3100

Suction Type



5XZ-3A



3



5



1200



2000×325



4000×1800×2750

Suction Type with Dust Cylone Separator



5XZ-5A



5



9.75



1600



2000×475



4000×1900×3100

Suction Type with Dust Cylone Separator

5XZ-6

5

8.95

2000

3360×1420

3900×1700×1750

Blow Type

 grain gravity table separator machinegrain gravity table separator machinegrain gravity table separator machinegrain gravity table separator machinegrain gravity table separator machine
