Specifications
screw mortar pump>ISO9001:2000;make 6years
>spray&pump mortar,fireproof
>50L/min,1500m2/8hours
>Germay motor

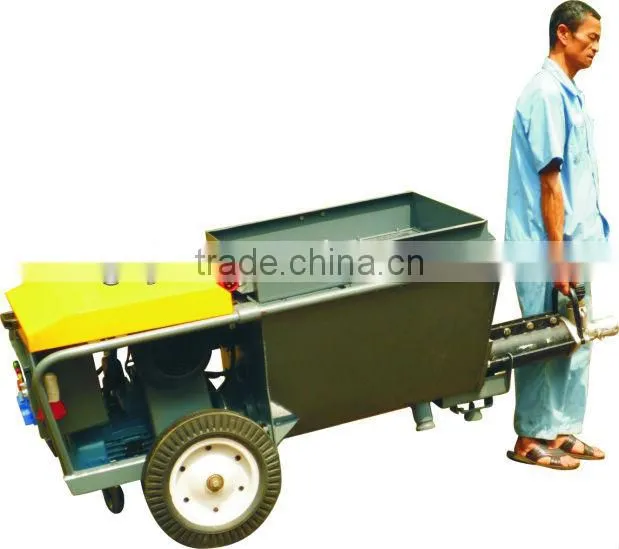

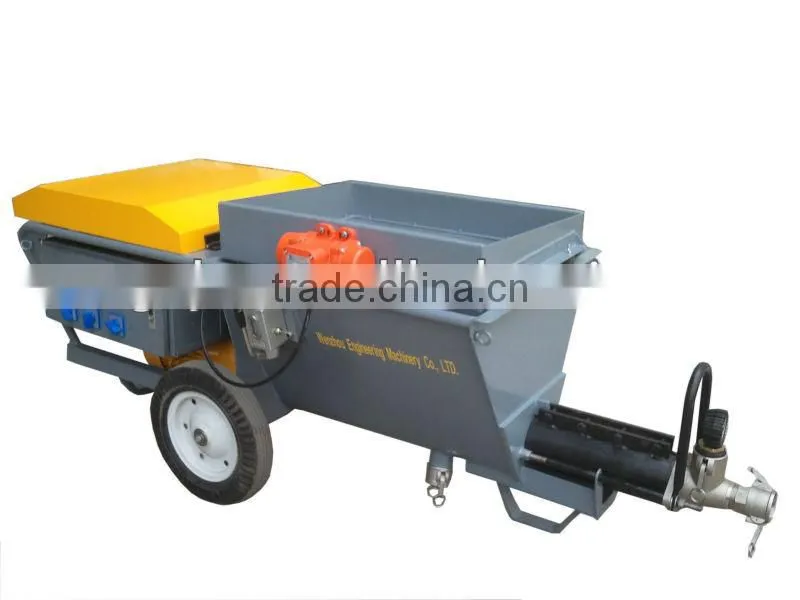

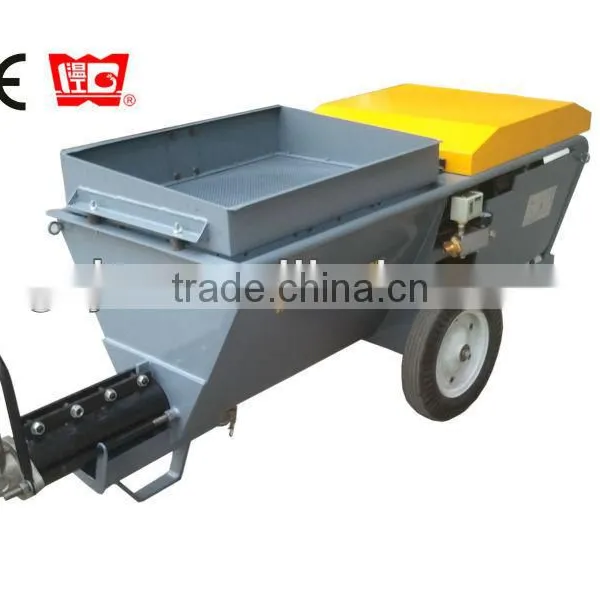

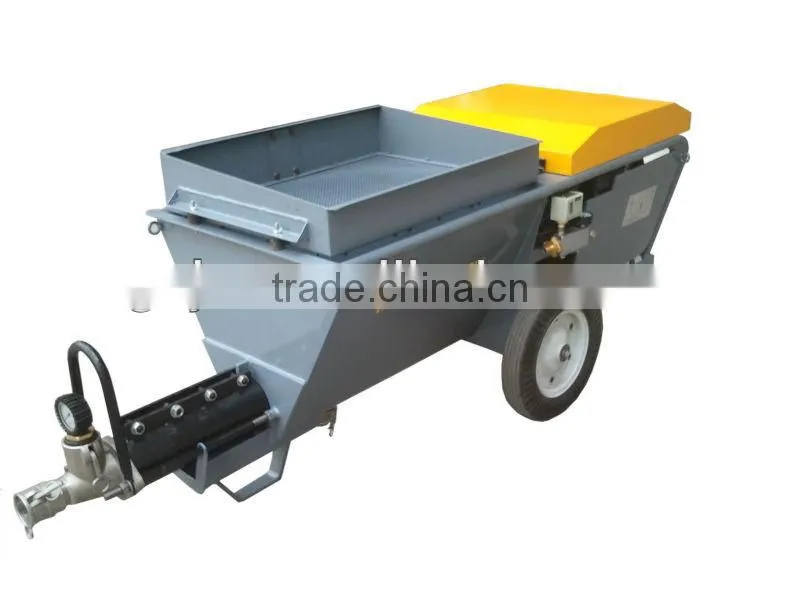

JP70-P Screw mortar pump
1. JP70-S Screw mortar pump is multi-functional large output plastering machine introduced Italian technology.
3. With modular structure, it's easy to move, dissemble and operate.
4.With variable speed regulation, JP70-P plastering machine can achieve different pressure, output and plastering speed. Sets the pressure controlling protection mechanism, and meets the remote control working requirement.
Technical parameters of JP70 Mortar plastering machine
Model |
— |
JP70-P |
JP70-S |
Supply power |
— |
400V 50Hz |
400V 50Hz |
Motor power |
kw |
3.7/4.4 |
3.7/4.4 |
Compressor power |
kw |
2 |
— |
Maximum grain size |
mm |
8 |
8 |
Output |
l/min |
50 |
50 |
Delivery pressure |
bar |
30 |
30 |
Horizontal delivery distance |
m |
60 |
60 |
Vertical delivery distance |
m |
30 |
30 |
Hopper volume |
L |
120 |
120 |
Net weight |
kg |
275 |
275 |
Dimension (L×W×H) |
mm |
2040×820×950 |
2040×820×950 |
Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
The products are improved without notice!

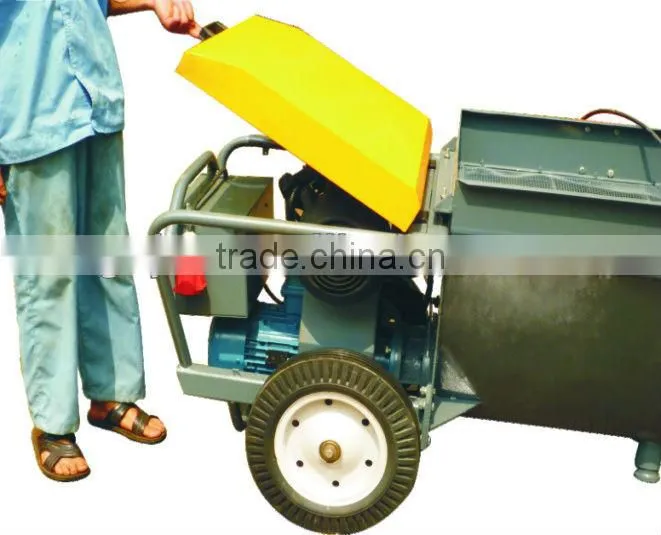

1. JP70-P plastering machine is installed air compressor and motor, the motor is imported from Germany. The quality you can be no worried about.

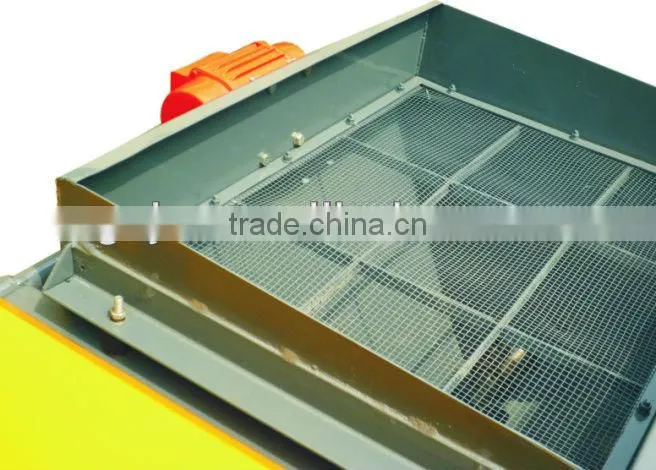

2. The vibrating sieve screen matches vibrating motor and the vibrating sieve is 10x10mm( or 8x8mm) to slecet the bigger size material out to protect stator and rotor of plastering machine.
3. JP70-P is easy to move for plastering work, it's one of ideal plastering machine for pleaster choice!
4. you can see the plastering effect with fast speed about 800-1200m2 per 7hours.
2. Our Bamua fair in Shanghai 2012
