7.5 KW mixject wet mortar spray machine imported from France technology

Specifications

wet mortar spray machine
>includes mixer and pump
>highly spray mortar for 3D panel
>capacity:3000m2 in 8hours

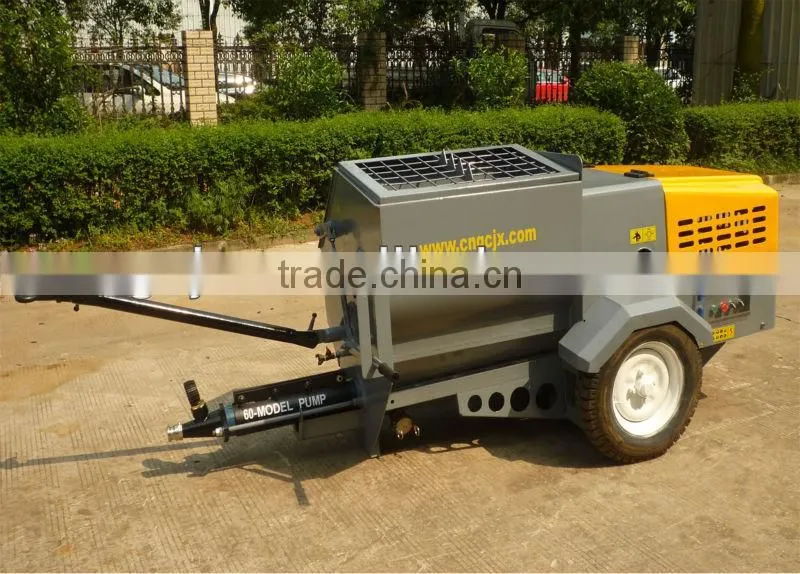

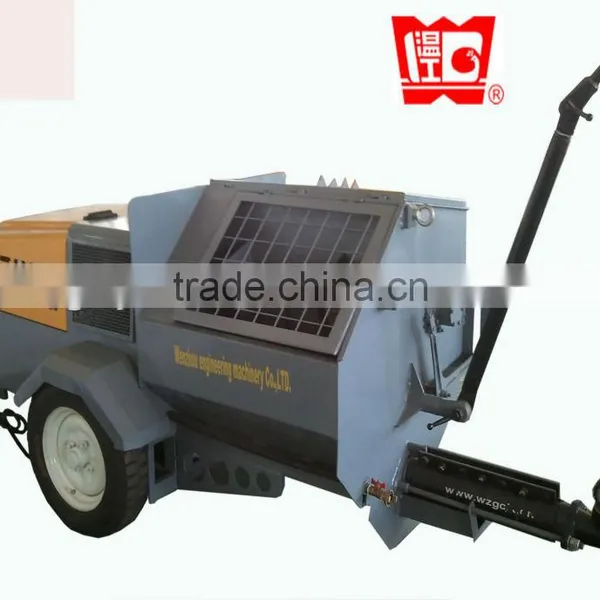

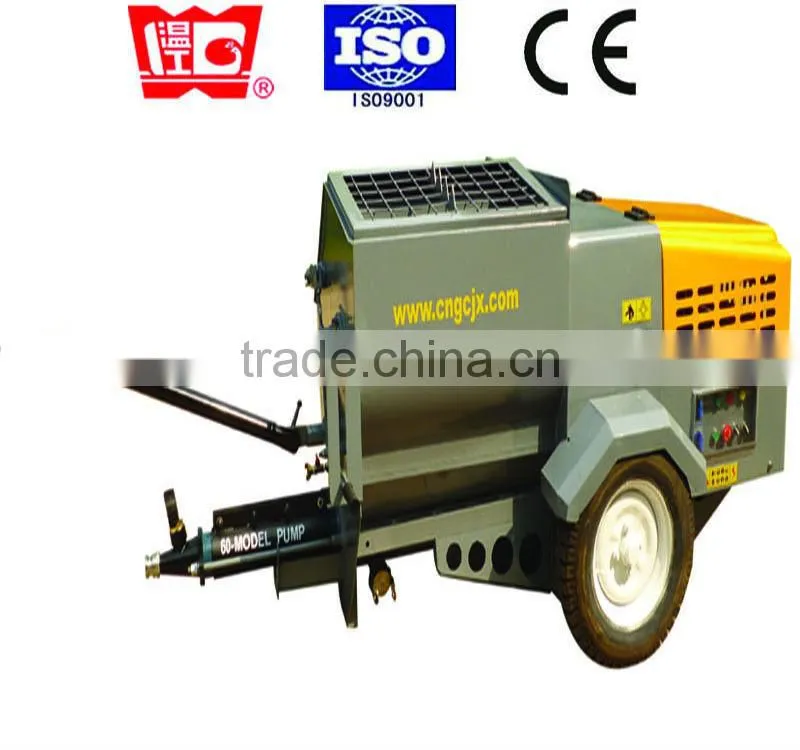

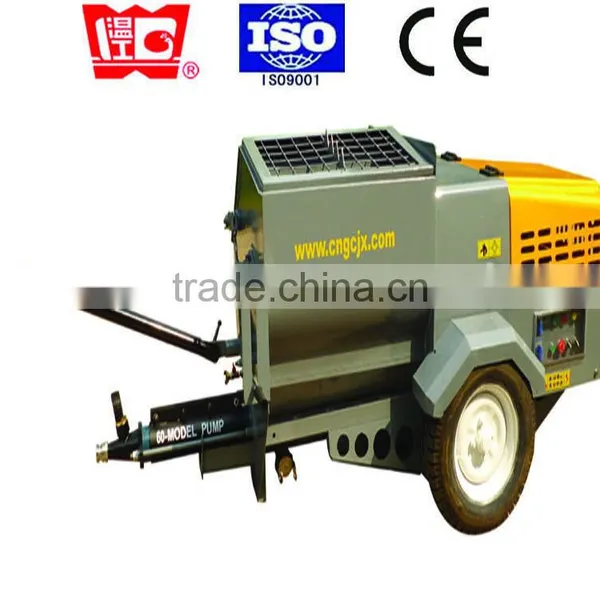

                      JP60D-W    Wet mortar spray machine





1. JP60D-W is the high efficiency machine introduced German technology.



2. It's applicable to large area plastering for plastering and screeding mortar, fireproofing, thermal insulation mortar, and thick layer of mortar, masonry mortar, reinforced mortar, filling mortar, perfusion mortar, fiber mortar, self-leveling mortar.



3.With variable speed regulation, can freely choose output, pressure and controlling pressure according to mortar characteristics and use.



4.Sets the pressure protection system, and achieves the remote control.



5.With simple design and high power, it equips with large output conveying pump with steady work. It has combined functions of mixing, pumping, bonding and plastering.









Technical parameters





Model	—	JP60D-W
Supply power	—	400V 50Hz
Motor power	kw	7.5
Maximum grain size	mm	5 pump type: Putzmeister 2L6
Output	l/min	40
Delivery pressure	bar	30
Horizontal delivery distance	m	60
Vertical delivery distance	m	40
Mixer power	kw	3
Mixer volume	L	250
Hopper volume	L	230
Net weight	kg	580
Dimension (L×W×H)	mm	2600×1170×1100

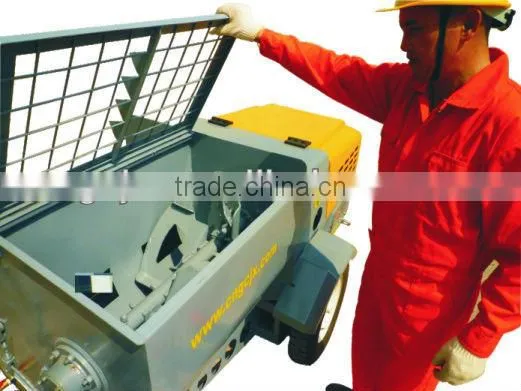

1. JP60D-W mortar spraying machine includes Mortar Mixer and pump:

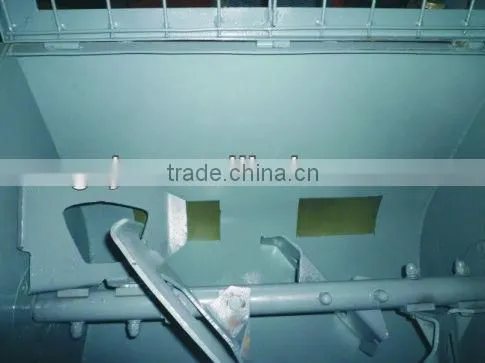

The wet mixed mortar will be discharged from mixer tank





into below Worm  pump tank system:

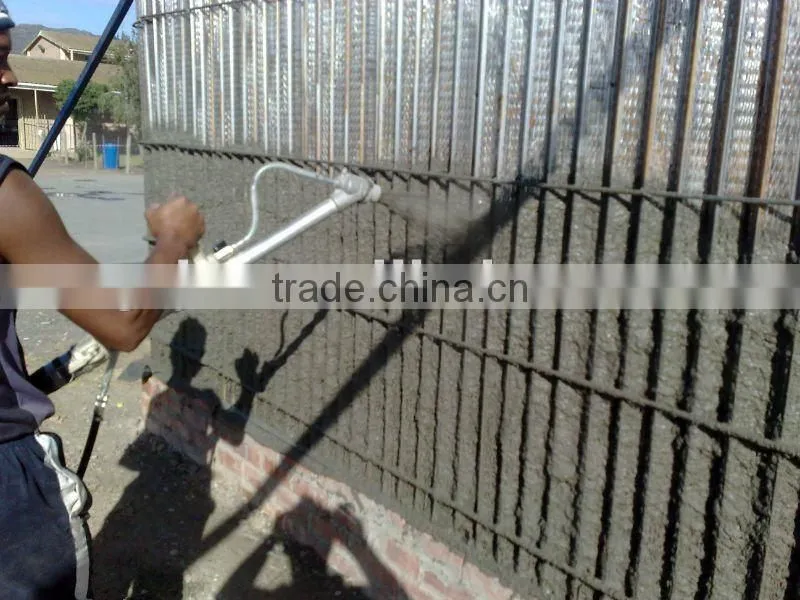

2. Spraying fireproof inslution mortar into 3D panle surface

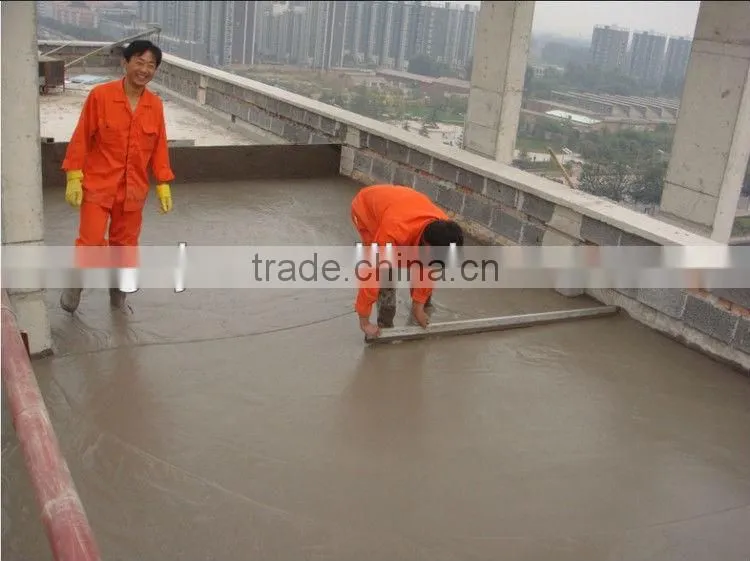

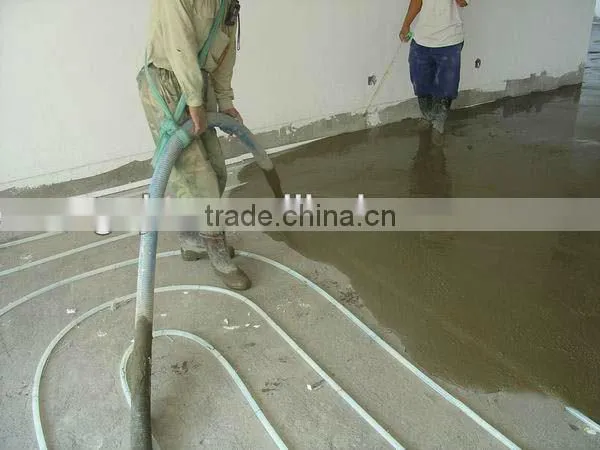

3. wall screeding plaster machine can screed the mortar to floor
