gypsum cement spraying plaster equipment
Selling points:
1.JP40-I is smallest plastering machine introduced Italian technology.
2.It’s applicable to delivery, bonding and plastering for different uses and physicochemical performance of various interior and exterior plastering mortar, masonry mortar, flooring mortar, decorative mortar, thermal insulation mortar, and floor surface mortar.
3.It has the adjusting function of plastering speed, pressure, output selection. It sets the pressure controlling protection mechanism and achieves the remote control.
4. Can plaster with 800-1000m2 per 8hours. Max grain size is 4mm, max ratio of mortar is cement:sand=1:3.
Technical parameters
Model |
— |
JP40-1 |
Supply power |
— |
220V,1-phase,50HZ 400V, 3-phase, 50Hz |
Motor power |
kw |
4 |
Maximum grain size |
mm |
5 |
Output |
l/min |
40 |
Delivery pressure |
bar |
30 |
Horizontal delivery distance |
m |
50 |
Vertical delivery distance |
m |
30 |
Hopper volume |
L |
50 |
Net weight |
kg |
200 |
Dimension (L×W×H) |
mm |
1300×640×550 |
1. The out cover can take out easily for maintance, it installs vibrating grid for seving larger grain size! And the piston air compressor is controlled separately in JP40-1.
2. Screw worm pump with stainless steel wearable connection.

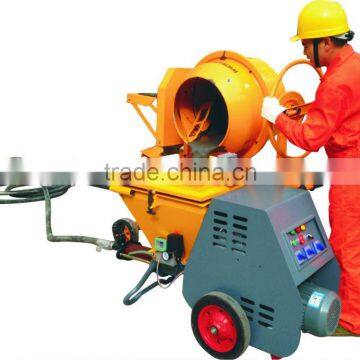

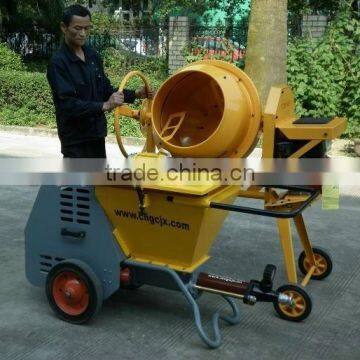

3. JP40-1 is always worked with mortar mixer for spraying wall or self-screed floor.
4. Spare parts of JP40-1 plastering machine
1. Our factory
2. Our Bamua fair 2014
