Gas Cylinder Carrier Trailer Model TGC42

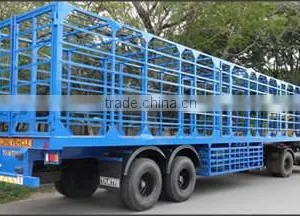

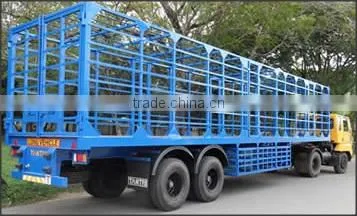

Gas Cylinder Carrier Trailer Model TGC42 thumbnail-1

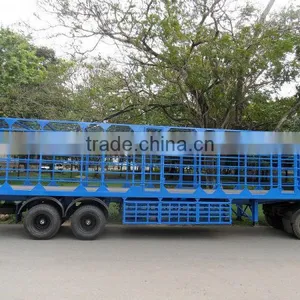

Gas Cylinder Carrier Trailer Model TGC42 thumbnail-2

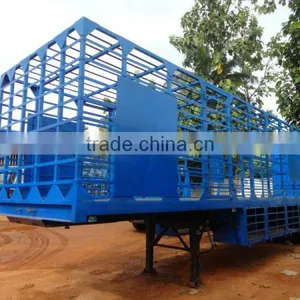

Gas Cylinder Carrier Trailer Model TGC42 thumbnail-3
Gas Cylinder Carrier Trailer Model TGC42 photo-1

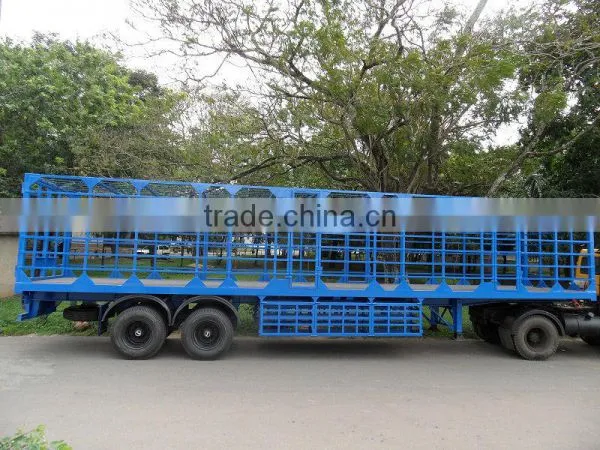

Gas Cylinder Carrier Trailer Model TGC42 photo-2

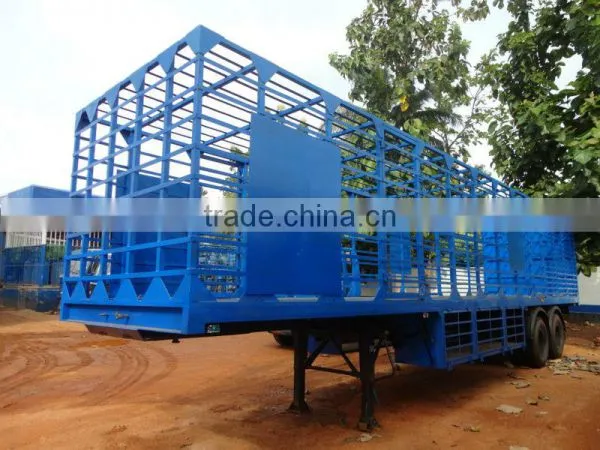

Gas Cylinder Carrier Trailer Model TGC42 photo-3
US$ 20,265 - 30,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
Other, ISO
Contact Supplier Request Quote Chat Now
Tantri Trailers (pvt) Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Colombo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Semi-Trailer
Material Steel
Certification Other, ISO
Size 42 Feet
Max Payload 40ton
Place of Origin Sri Lanka
Brand Name TANTRI
Model Number TGC42

Specifications

Tantri High Quality TBC42 model Gas Carrier Trailer has bellow mentioned specification.

Chassis :-

Model                  - TGC42

Trailer Weight       - 7200 Kg. (unladen)

Overall Length      - 12637mm, Deck Length (42 Feet), Width - 3610mm, Height - 1500 mm

Main Frame          - High Tensile Steel 400x200x12x9 mm (main “I” beam), 150x200x9x6 mm (“I” beam

                                  bolsters) and 150x75x6mm (side “C” channel & cross members).

Loading Deck       - 3.5mm Steel checkered plate

Doors                   - 04 Nos. both side and 02 Nos. rear.

Loading Capacity  - 1090 Nos. gas cylinders

Mudguards           - Heavy duty plastic mudguards with mud flaps.

Landing Legs        - 80,000 Kg. Static loading capacity.

Brakes                 - 2 Line pneumatic brake system with RE6 relay emergency valve.

King Pin               - 50 mm Dia forged steel King Pin

Lights                   - LED 24V light system (signal, brake, parking & number plate)

Paints                   - Shot blasted, epoxy primer coated and top coated with customer preferred colour.



Running Gear :-

Axles                     - 2 x 13 ton capacity square beam axles

Suspension            - Tandem suspension system (04 Nos. leaf spring bundles)
Wheels                  - 08 Nos. 9.00 x 22.5 , 10 Holes hub

Tires                      - 08 Nos. 11.00R x 22.5, 18/16PR (Tubeless)



Including :-                                                                                     Options :-

Spare wheel with carrier                                                                    Additional spare wheel carrier

Rear bumper guards                                                                         Tool box

Safety crash bar both sides                                                               ABS Brake

Safety luminous fittings

Hooks for tie ropes

Fire Extinguishers rack (both side)
