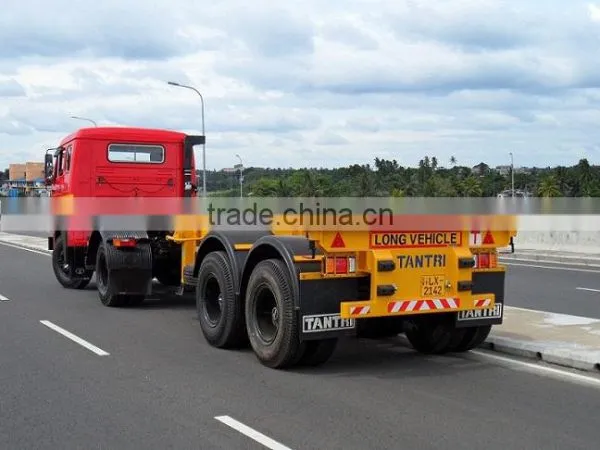

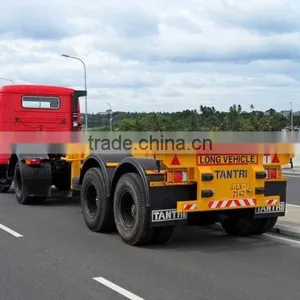

20 Feet Skeletal Trailer Model TSK20

Specifications

Chassis :-

Model                   - TSK20-2

Trailer Weight       - 3355 Kg. (unladen),

Overall Length       - 7825 mm, Deck Length - 20 Feet, Width - 2410mm, Height - 1500 mm

Main Frame          - High Tensile Steel 400x200x12x9mm (main “I” beam),150x200x9x6mm(“I” beam

                             bolsters) and 150x75x6mm.

Container locks    - 04 Nos. Multi Twist locks

Mudguards          - Heavy duty plastic mudguards with mud flaps.

Landing Legs       - 80,000 Kg. Static loading capacity.

Brakes                - 2 Line pneumatic brake system with RE6 relay emergency valve.

King Pin              - 50 mm Dia forged steel King Pin

Lights                 - LED 24V light system (signal, brake, parking & number plate)

Paints                 - Shot blasted, epoxy primer coated and top coated with customer preferred colour.

Running Gear :-

Axles                     - 2 x 13 ton capacity square beam axles

Suspension            - Tandem suspension system (04 Nos. leaf spring bundles)
Wheels                  - 08 Nos. 7.50 x 20, 10 Holes hub

Tires                      - 08 Nos. 11.00R x 22.5 x 16/18PR (Tubeless)

Including :-                                                                                     Options :-

Spare wheel with carrier                                                                    Additional spare wheel carrier

Rear bumper guards                                                                         Tubeless tires / rims

Safety crash bar both sides                                                               Tool box

Safety luminous fittings                                                                     ABS Brake
