ISO9001 Certified Solar Water System Storage Tank 100l

US$ 138 - 214 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SST

Model Number:

solar water system storage tank 100l

Guangzhou SST Heating Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

HUANGPU/NANSHA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SST

Model Number solar water system storage tank 100l

Specification Normal

Application Home

Output Voltage (V) 5v

Load Power (W) 5V/12V

Solar Power (W) 20Wp-400Wp

Work Time (h) 24h

ISO9001 certified solar water system storage tank 100l

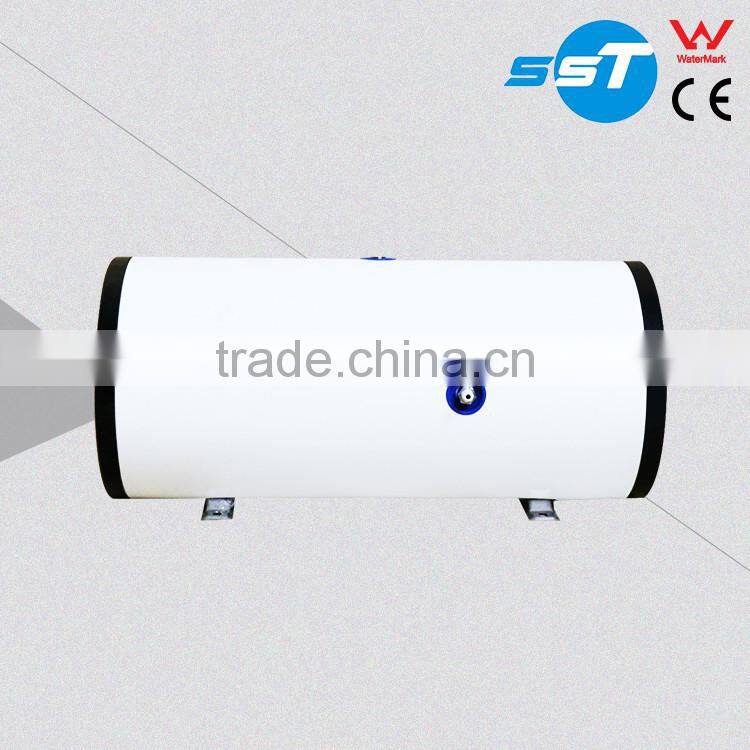

Product Show

SST

Product Parameters

SST

Capacity	L	100	200	300	400	500	600	800	1000
Inner tank diameter	mm	Φ370	Φ470	Φ500	Φ550	Φ600	Φ650	Φ700	Φ800
Out shell diameter	mm	Φ470	Φ560	Φ600	Φ650	Φ700	Φ760	Φ800	Φ900
Inner tank material	mm	SUS304 / SUS316L / Duplex2205 / Duplex2304
Out shell material	mm	galvanized steel with painting / stainless stell / PU
Out shell color		white / silver-grey / blue /red / golden / stainless stell
ing pressure	bar	6	6	6	6	6	6	6	6
Max.testing pressure	bar	10	10	10	10	10	10	10	10
Max.running temperature	℃	90	90	90	90	90	90	90	90
Heating loss	W/K	0.65	0.72	0.89	1.02	1.15	1.26	——	——
Standing loss	W	30	33	40	46	52	57	——	——
ERP Class		A	A	A	A	A	A	A	A
Electrical heater	kw	1.5	1.5	1.5	1.5	3	3	3	3
Mg.Anode	mm	*Φ22300**
Water connection		G / BSP / NPT 3/4"				G / BSP / NPT 1"
Packing size	mm	L:540 W;540 H:117	L:630 W:630 H:1440	L:670 W:670 H:163	L:720 W:720 H:1920	L:780 W:780 H:1930	L:850 W:850 H:1940	*Φ9002200**	*Φ9802420**
