Hot Sale Dust Collector Pulse Filter for Feed Pellet Plant/Rice Mill Plant
Introduction of Pulse Filter
TBLMF Series Flat bag dust filter pulse is a novel and efficient dust removal equipment, it uses the fan, pulse bag dust filter combination as a whole and remove the bag frame structure form, has the characteristics of small volume, large filtering area, to shorten the wind nets, simplified technological process, improving the efficiency of the host has created favorable conditions. This equipment is suitable for the grain and oil, food, feed and other industries of stand-alone dust and light industry, chemical industry, mining, cement and other industries of dust filter.
Features of Pulse Filter
- Square cabinet with edge fold makes good appearance.
- Bottom feed makes to material recycling.
- Great processing amount of wind, low noise and less occupation.
- Bigger filtering area and high efficiency(≥99%).
- Low resistance, high dust removing efficiency, easy operation and repairing, supporting air with low pressure, low noise, long working life, shall size.
- Uniform dust removing by scraper of type A reduces not only improves efficiency but also reduces equipment height.
- Widely applied to industries like food, metallurgy, building materials, and medicine etc.
Technical Parameter of Pulse Filter
1. Filter working pressure: -1960Pa~+2940Pa
2. Filter resistance: up to and include 1470Pa
3. Pulse injection pressure: 4x105Pa
4. Pulse width: 0.03~0.2s
5. Filtering wind speed: 2-4m/min
6. Filter bag specification: φ120×1000,φ120×1500,φ120×2000, the length can be customized.
Type/Item |
Specification of Filter |
Interface Way of Filter |
Filter Area |
Air Volume |
Cylinder Pressure |
TBLMF2 |
φ150×1000 |
Thread Connection |
0.943 |
113-226 |
4-6bar |
TBLMF6 |
φ120×1000 |
2.25 |
270-540 |
||
TBLMF12 |
φ120×1500 |
6.8 |
816-1632 |
||
TBLMF18 |
φ120×1500 |
10.125 |
1215-2430 |
||
TBLMF24 |
φ120×2000 |
18 |
2160-4320 |
||
TBLMF32 |
φ120×2000 |
24 |
2880-5760 |
||
TBLMF36 |
φ120×2000 |
27 |
3240-6480 |
||
TBLMF40 |
φ120×2000 |
30 |
3600-7200 |
||
TBLMF48 |
φ120×2000 |
36 |
4320-8640 |
||
TBLMF56 |
φ120×2000 |
42 |
5040-10080 |
||
TBLMF64 |
φ120×2000 |
48 |
5760-11520 |
Picture of Pulse Filter

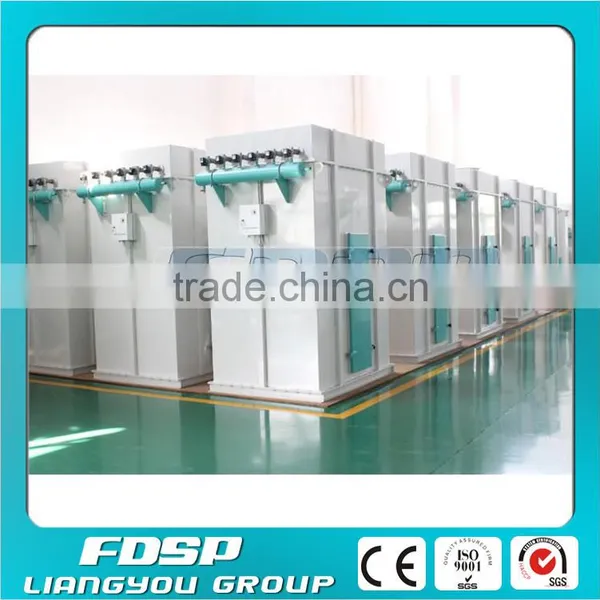

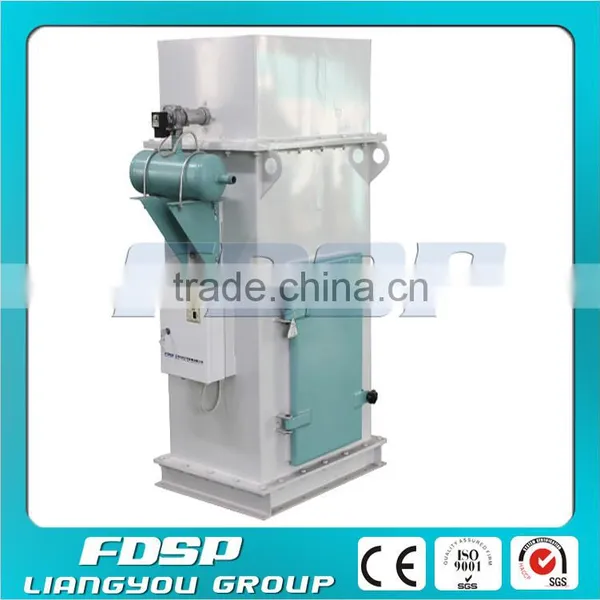

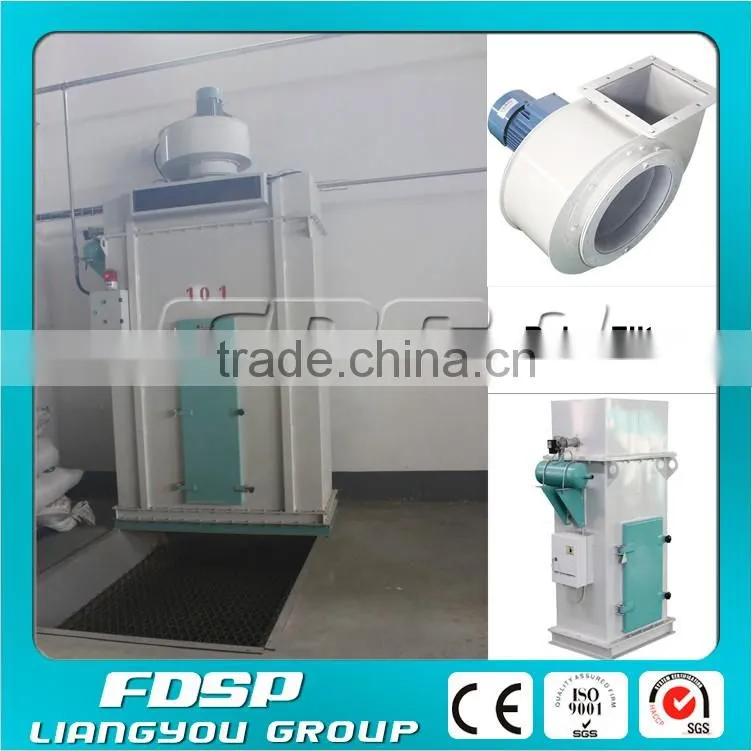

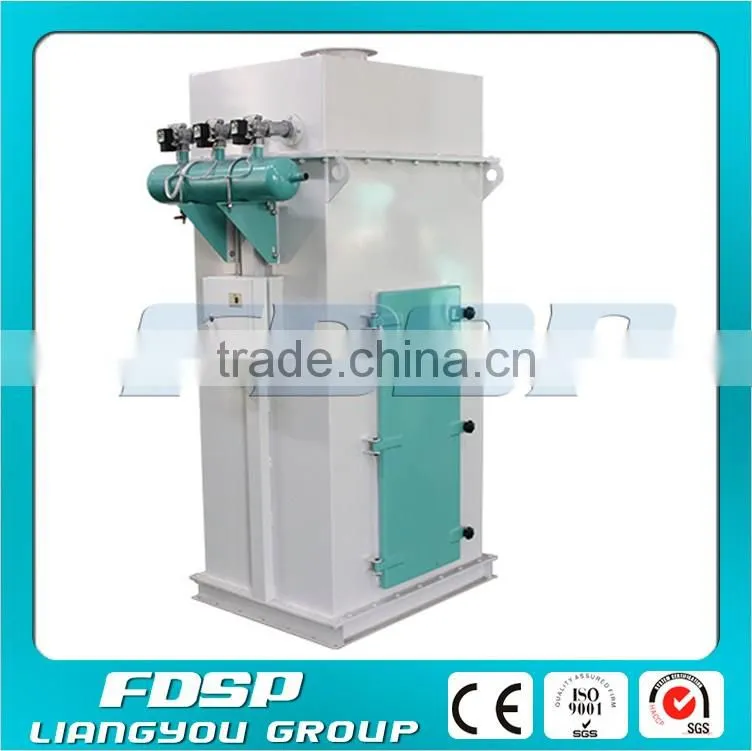

-----TBLMF Seires Square Pulse Filter

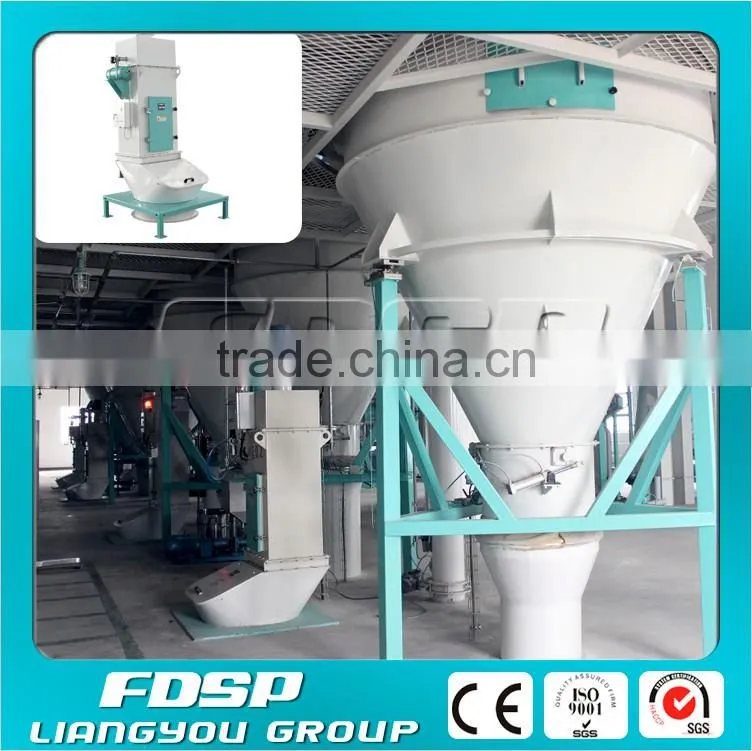

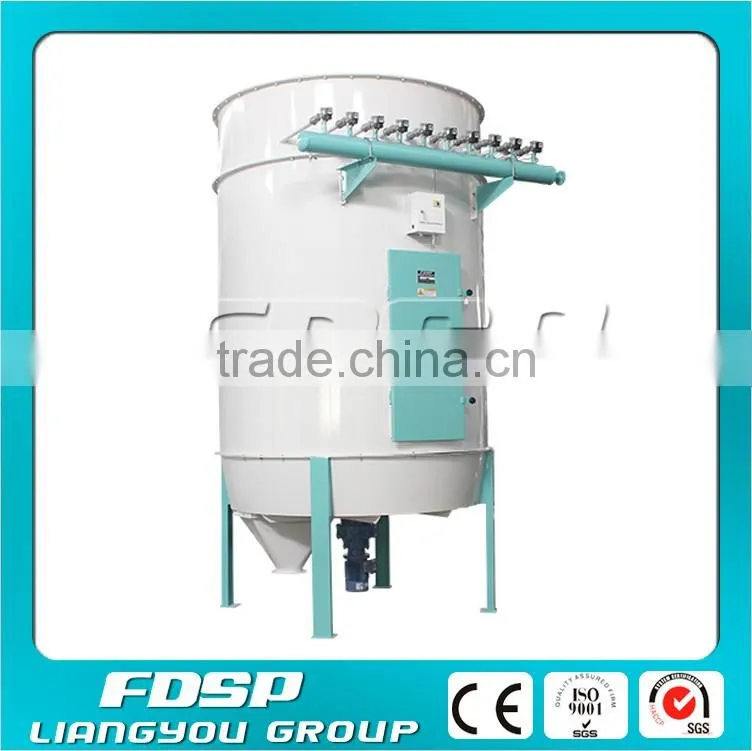

-----TBLMy Round Bag Pulse Filter (Hopper Bottom)

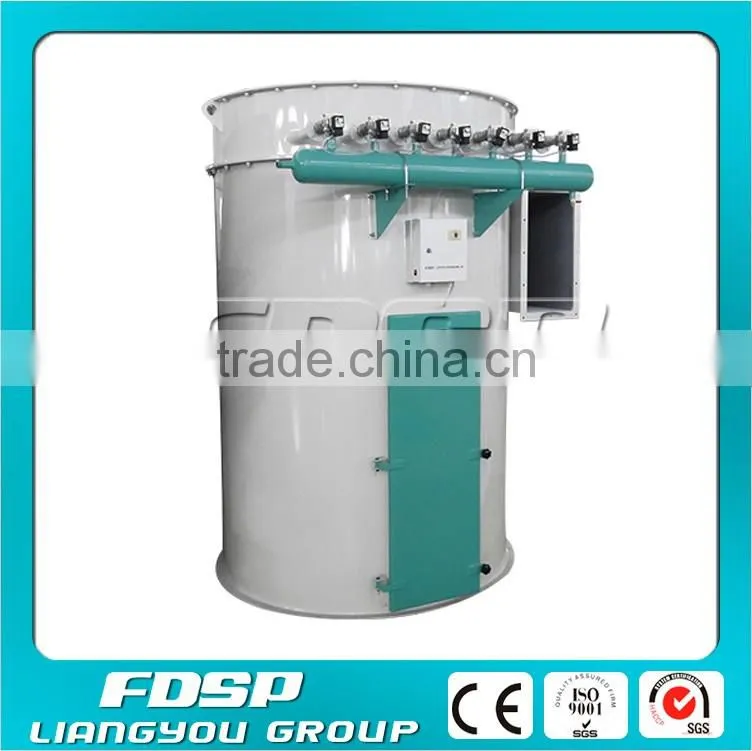

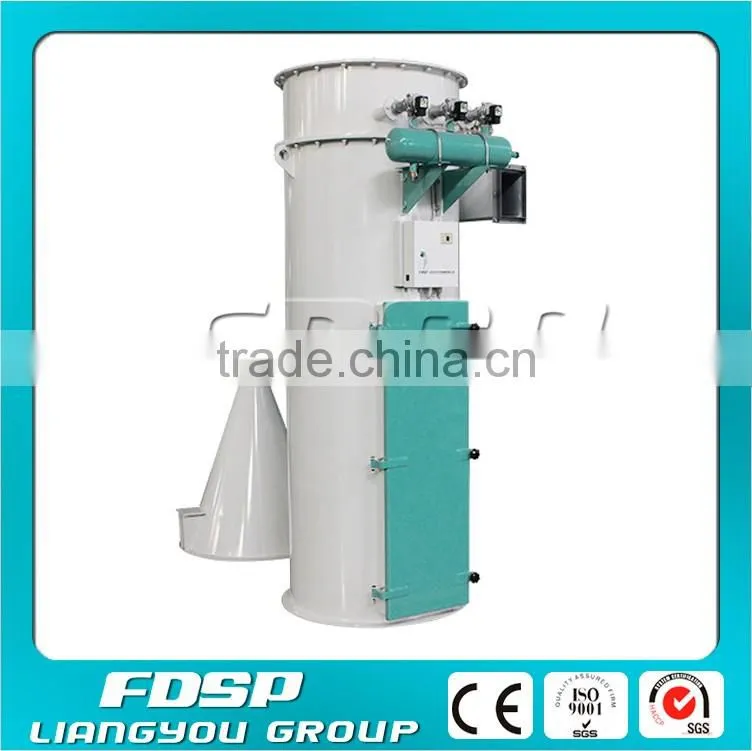

-----TBLMD Round Bag Pulse Filter (Flat Bottom)
Advantage of Pulse Filter

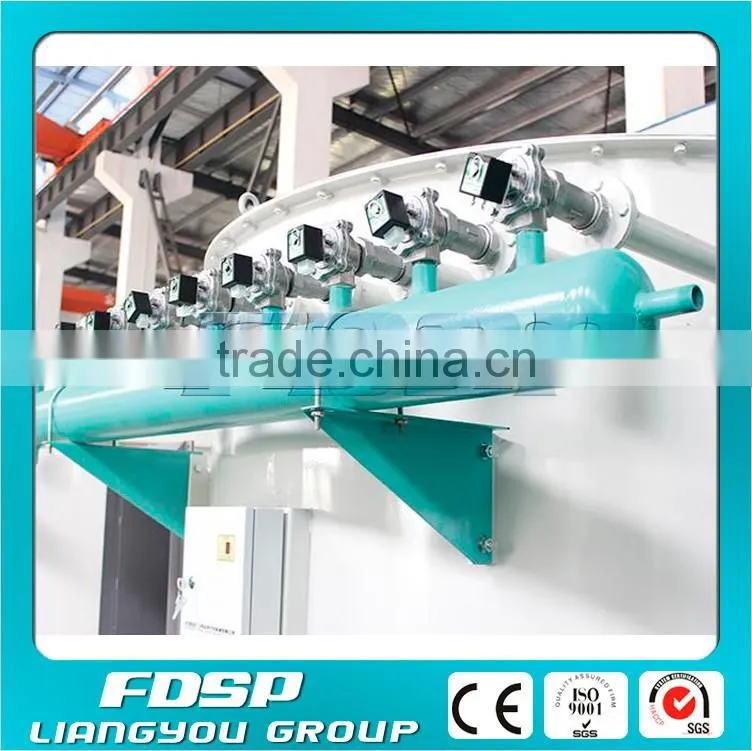

- TDFK high voltage magnetic valve makes more air amount and better dust removal effect. The air inlet on ash hopper avoids dusty air direct goes through filter, which improves the working life of filter.
- Patented technology of filter quick loading system and low voltage magnetic valve of multiple filters and one blow are applied.
Special square air pocket is directly connected with magnetic valve which reduces damage to diaphragm and makes stable and reliable operation. Qualified products have good appearance and compact construction. Double air inlets make flexible processing set-up, and less space occupation. High dust removal efficiency (≥99.9%)
Filters can be customized like superfine, temperature resisting, moisture resisting, antistatic, etc.

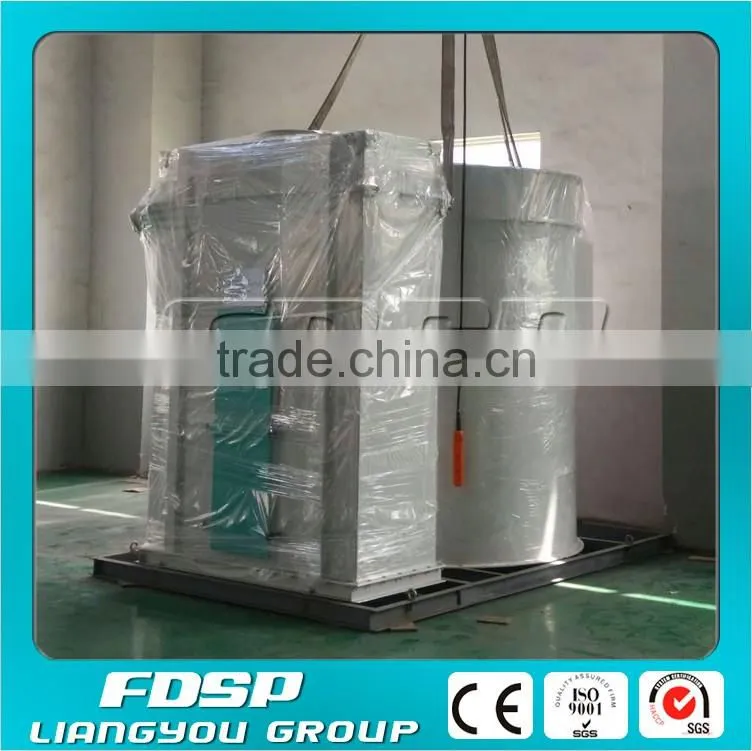

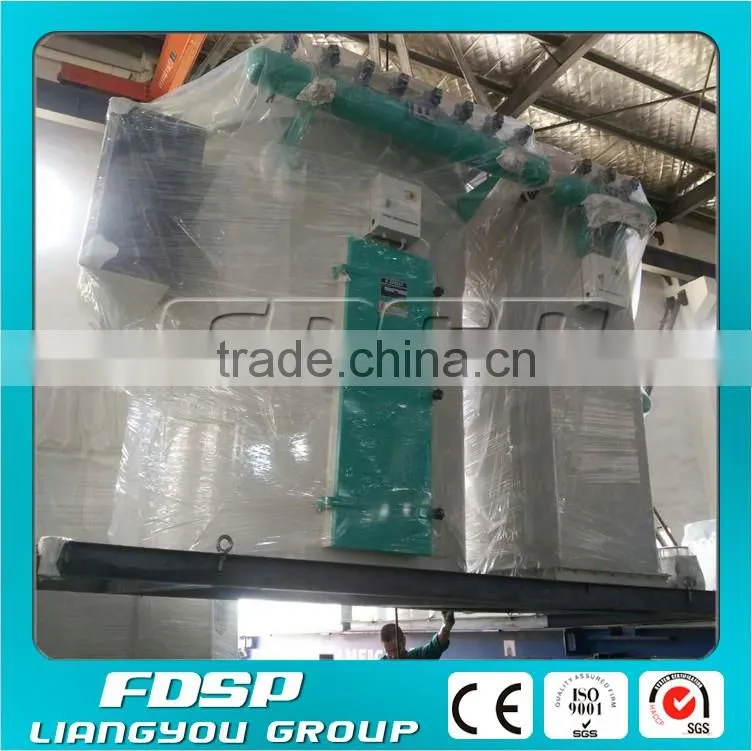

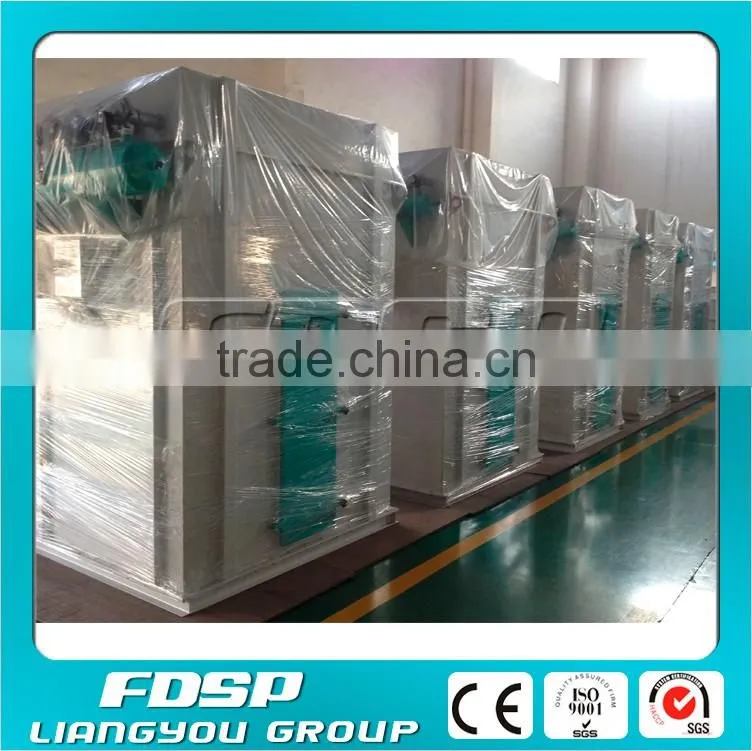

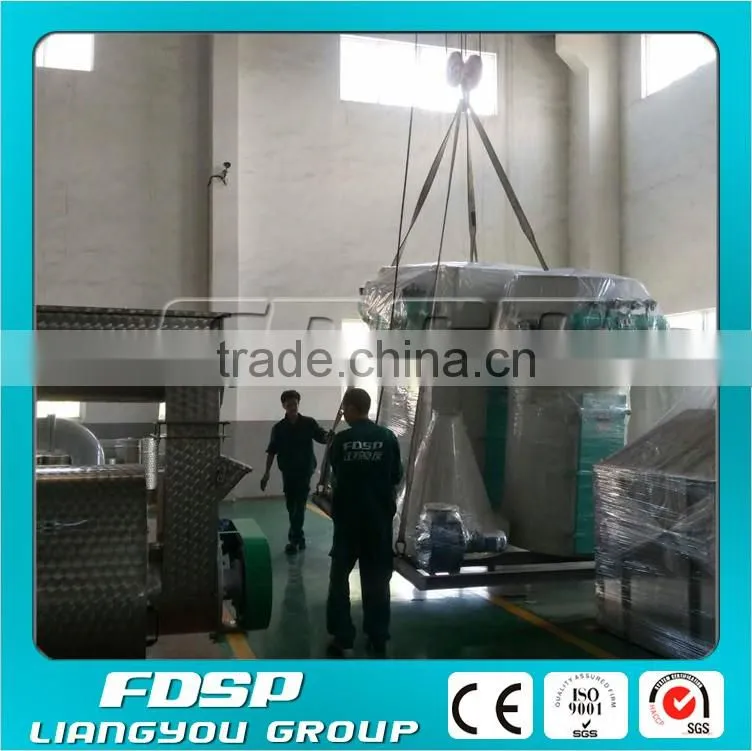

Packing & Shipping
Packaging: Depending on customers' requirement,such as Steel Frame or Iron crate etc.
Shipping: Our shipping operator and delivering equipments will be readyon time to
ensure goods shipped based on Sales Order requirement.

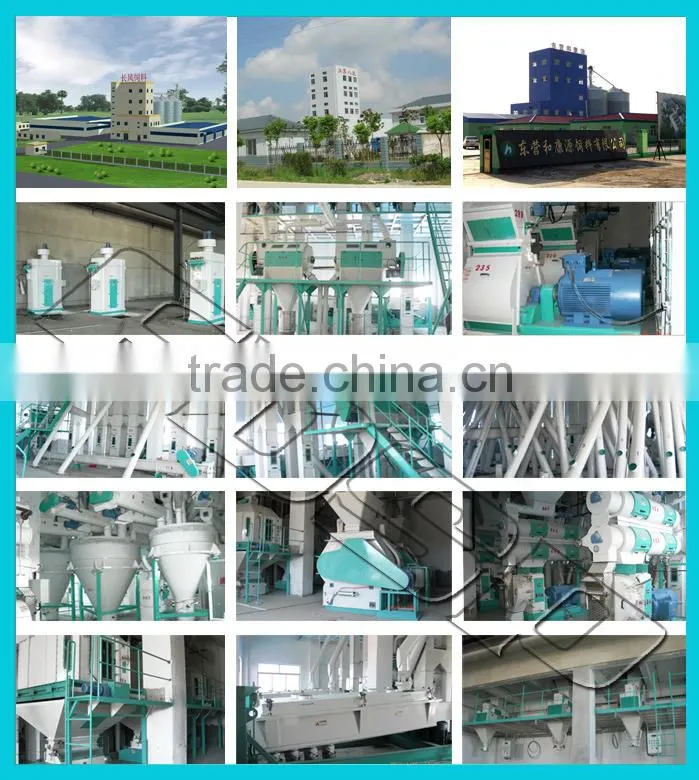

FDSP Group Introduction
FDSP is a professional enterprise specializing in developing, manufacturing and selling various kinds of feed machinery, ancillary equipment & spare parts, turnkey solutions with CE/ISO Certificates and competitive price.
FDSP has sold feed machinery and fertilizer machinery throughout China and exported to Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.
- A complete set of fertilizer production line with capacity of 10tph was exported to South Korea in 2008;
- A complete set of pulverized coal pellet production line with capacity of 30t/h was exported to South Africa in 2009.
- Three complete sets of feed production lines were exported to Egypt with capacity of 10tph, 15tph and 20tph respectively from 2010 to 2012.
- A large model of pellet mill with capacity of 25tph was exported to Thailand in 2013.
Main Products: Cleaner (Precleaning System), Hammer Mill (Grinding System), Mixer (Mixing System), Pellet Mill (Pelleting System), Crumbler, Screener, Cooler (Cooling System), Bagging Scale (Bagging System), Ring Die & Roller Shell, Hammer Slice & Hammer Beater, Bearing, Mainshaft, etc.
Certification
Any more interset in our products, welcome to contact me for more details.
