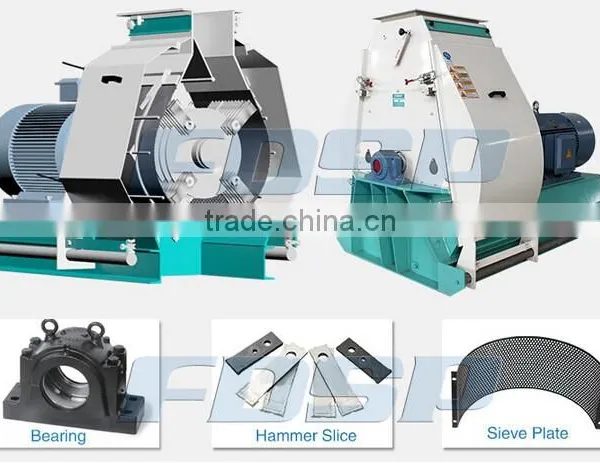

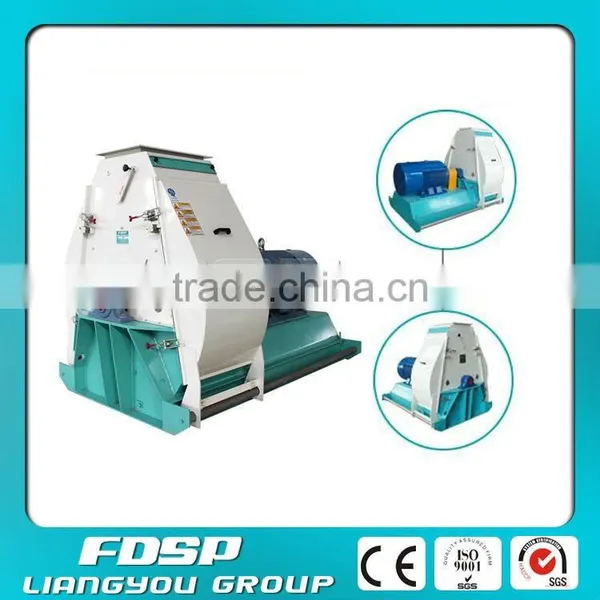

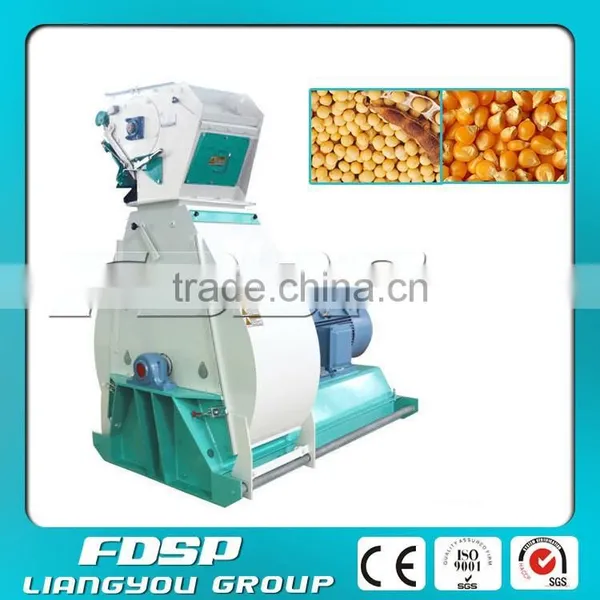

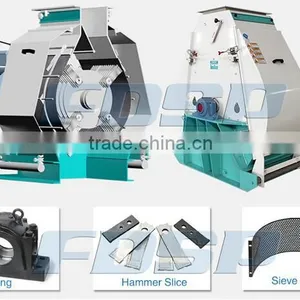

Groundnut fine grinding equipment bone pulverizing facility 30tph
1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The Bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. Rotor passes accurate dynamic balancing test, resulting in low equipment noise and smooth running.
4. Both coarse and fine grinding is realized through adjusting the gap between beater and screen;
5. New type S shape coupling directly connecting driving results in big offset travel and effectively avoid the heating of bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported products are used for key parts, resulting in long service life and low maintenance cost.;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.
Model |
SFSP999-1 |
SFSP999-2 |
SFSP999-3 |
SFSP999-4 |
Dia. Of Rotor |
1380 |
1380 |
1380 |
1380 |
Width Of Grinding Chamber (mm) |
400 |
500 |
600 |
800 |
Speed Of Rotor(rpm) |
1480 |
1480 |
1480 |
1480 |
Power(kw) |
90 |
110 |
132/160 |
180/200 |
Output(t/h) |
15-20 |
20-30 |
30-40 |
40-50 |
Finished product produced by FDSP grain corn grinder machine

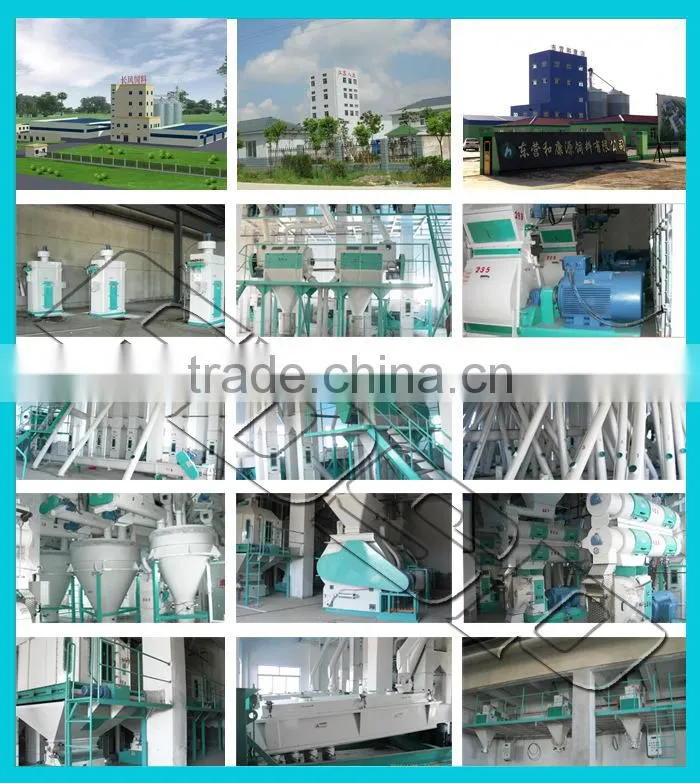

FDSP has sold Feed machinery and fertilizer machinery throughout China and exported to Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc. A complete set of fertilizer production line with capacity of 10tph was exported to South Korea in 2008; a complete set of pulverized coal pellet production line with capacity of 30t/h was exported to South Africa in 2009. Three complete sets of feed production lines were exported to Egypt with capacity of 10tph, 15tph and 20tph respectively from 2010 to 2012. A large model of pellet mill with capacity of 25tph was exported to Thailand in 2013.
FDSP has about 20 years of experience in the comprehensive development and utilizationin agriculture field. It covers an area of 15000 square meters with over 200 staffs, located in liyang city, jiangsu province, China, a beautiful and ancient city, which is famous as the biggest manufacturing base of feed machinery in China.
FDSP has obtained ISO9001:2008 international quality system certification, CE certification for feed machinery, fertilizer machinery, biomass equipment and complete sets of production line, SGS certification.
