Specifications:
1.wood chipper with CE;
2.high level capacity;
3.high working efficiency;
4.easy operation

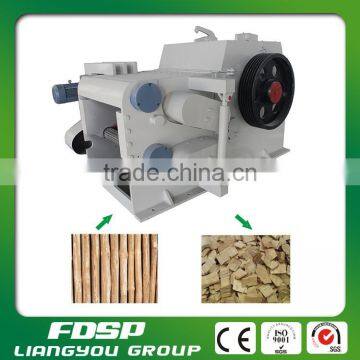

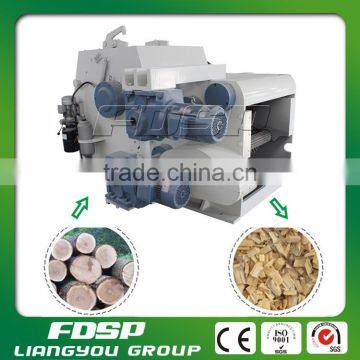

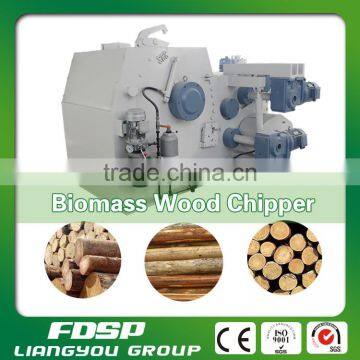

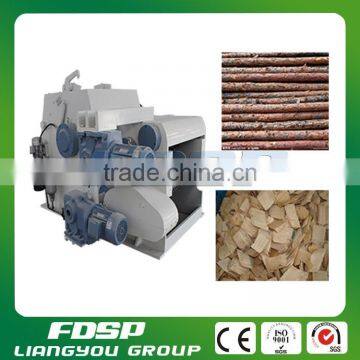

Drum type chips shredder for wood log bamboo tree branch shredmaster
Introduction of wood tree cutting machine
Advantages:
1.Wide applicability:Wood chipper is used to make wood chips, wood pieces which specially designed for round logs, square blocks ,wood staff and so on.The user can choose according to their own need.
2.High efficiency:The series of drum chipper is made up of seat,knife rotor,upper and bottom feeding roller,hydraulic pressure system,and control system.structure is compact.So it can bring output.
3.Long service life:Cutter adopts wear-resisting chromium plate structure,greatly prolongs the service life.
4.Widely used:The drum chipper can be used in pulp paper,MDF,OSB,particle board,fiberboard,wood chips making plant,fuel of burning boiler etc.
5.Low energy and noise:The seat adopts high strength steel plate welding and overall stress elimination treatment.
6.Easy operation and maintain simple:Chip length can be adjusted in a certain range.the feed has two forms which are horizontal or inclined.it has two discharging ways which is upper discharging and bottom discharging for the users to choose.
Technical Parameter Of wood tree cutting machine
Item |
LYGX213 |
LYGX216 |
LYGX218 |
LYGX218D |
LYGX2110 |
Rotor Dia(mm) |
300 |
650 |
800 |
800 |
1000 |
|
Number of flying knives (pcs) |
2 |
2 |
2 |
2 |
2*2 |
Feed opening size(mm) |
120*300 |
180*500 |
225*680 |
240*750 |
330*1050 |
Knife rotor speed(rpm) |
730 |
590 |
650 |
650 |
550 |
Feed speed(m/min) |
38 |
37 |
37 |
38 |
38 |
Max dia. of log |
90 |
120 |
160 |
160 |
210 |
Wood chips length(mm) |
26 |
30 |
30 |
35 |
30 |
Capacity(m³/h) |
3-5 |
10 |
15-20 |
38 |
75 |
|
Main motor power(kw) |
30 |
55 |
110 |
132 |
220 |
|
Feed roller motor power(kw) |
2*1.1 |
2*3 |
2*4 |
4*2 |
2*7.5 |
|
Oil pump motor power(kw) |
1.1 |
--- |
--- |
0.55 |
4 |
Weight(kg) |
1200 |
4070 |
7000 |
7500 |
12500 |
|
Overall dimension (L*W*H) |
3680*870*900 |
4348*1730*1258 |
4670*2150*1500 |
4670*2150*1500 |
4340*3550*1500 |
Details of wood tree cutting machine
Raw material
The main raw material is square blocks, round logs,wood staff, and it can also be used to cut the wooden material such as reed, bamboo, sugar cane, etc. The final size can be according to customers' request.
Finished wood chips
1.Warranty:1 years
2.Our professional service includes:Free training, Guidance Installation and Debugging.
3.After the warranty period, the supplier promise to provide life-long service for customer, and provide the most preferential price of the required parts.
4.24 hours online.We will reply your questions on time.
FDSP has sold Feed machinery and fertilizer machinery throughout China and exported to Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc. A complete set of fertilizer production line with capacity of 10tph was exported to South Korea in 2008; a complete set of pulverized coal pellet production line with capacity of 30t/h was exported to South Africa in 2009. Three complete sets of feed production lines were exported to Egypt with capacity of 10tph, 15tph and 20tph respectively from 2010 to 2012. A large model of pellet mill with capacity of 25tph was exported to Thailand in 2013.
Our products have passed CE certification long before, also the pellets is with SGS certification. Our company is with ISO9001 certification.
Besides, we have a professional technical team, with two departments for developing single machine and customizing complete pellet line solution. Most of our engineers are with over 20 years' experience in this field and also have a lot of experience in overseas projects.
With our outstanding technical team, we have earned a lot of certifications for our machines, together with a lot of patented design.
1.Q:Are you a factory or trading company?
A:We are a manufacturing and trading company.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.Our company is located in Nanjing City,Jiangsu Province,China.You can fly to Shanghai
airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is our soul. We always attach great importance to quality controlling from
the beginning to the end. We have many engineers to R&D our products.
Why choose us?
- We have more than 20 years' manufacturing experience in wood working machinery industry.
- We have exported our products to more than 30 countries all over the world.
- All of our machines are built in with the most advanced technology.
- Our R&D team have rich experience in researching, designing, testing and installing machines.
- Our sales team provide 24 hours online or email service.
