Specifications

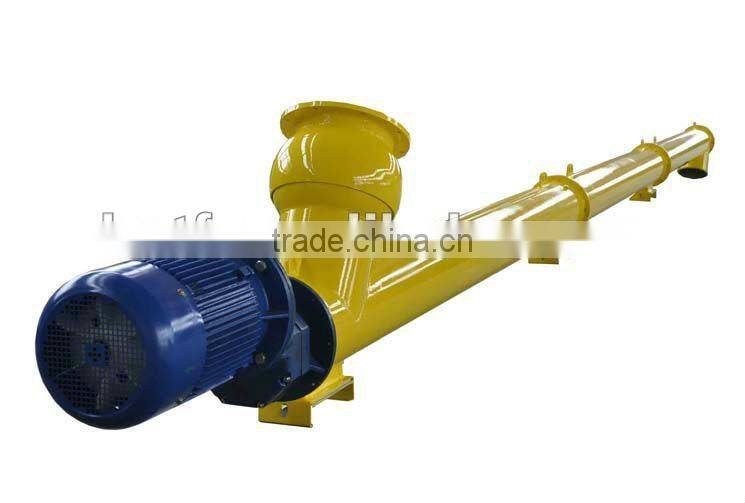

screw conveyor for silo cement1.Convenient installation
2.widely use
3.Good after-service
HENAN TENG FEI MACHINE MANUFACTURING CO., LTD
Address: Xintian Street, Xushui Town, Zhongyuan District, Zhengzhou City, Henan Province, China.
TEL: 0086-371-67103656 FAX: 0086 0371-68590099
Website: /
Contact:Alice Yue Tel:0086-15838085304
1.Features:
Features of grain/cement screw conveyor:
1.Screw conveyor adopts excellent quality steel pipe with great property.
2.The dual blades pitch decrease the compressed material degree when conveying.
3.Adopt first grade reducer ,heavy type design ,low noise ,long rotation distance.
4.Optional universal ball joint and make installation adjust to convenience .
5.Match good quality crane and tail bearings for convenient installation.
6.Enough spare components with various specification.
7.There are plenty of stock with diameters of 165mm,219mm,273mm,323mm,407mm .And the special size can be manufactured according to customer's requirements.
8.Standard components assembly is convenient to deliver.
2.Our LSY screw conveyor is designed and made on the basis of import machine from Germany and Italy, which has features of great conveyance capacity, proof-dust, moisture resistance and low noise etc.
LSY screw conveyor is necessary equipment of concrete mixing station for convey cement, power, coal, dust etc.
Type |
LSY163 |
LSY180 |
LSY230 |
Spirochaeta Diameter(mm) |
163 |
180 |
230 |
Spirochaeta Speed(r/min) |
310 |
310 |
240 |
Hosing Diameter(mm) |
194x6 |
219x8 |
273x8 |
Transportation Quantity(t/h) |
35 |
45 |
65 |
Conveying Length(m) |
2-12 |
2-13 |
2-15 |
Work Position Angle |
0-60 |
0-60 |
0-60 |
Motor Type |
Y132M-4 |
Y160L-6 |
Y160L-4 |
Power(kw) |
7.5 |
11 |
15 |
application :
A: Screw conveyors are widely used in various industries such as building
materials, chemicals, power, metallurgy, coal carbon, food and other
industries, horizontal or inclined conveyor for powder, granular and
small-block materials, such as coal, ash, slag, cement, food and so on,
B: the material temperature is less than 200 °C.
C: Screw conveyor is not suitable for perishable, viscous, easy caking
materials.In the concrete mixing station, the conveyor's role has been the
largest expression.
Model |
LSY219 Concrete Srew Conveyor |
Screw conveyor inside diameter |
200mm |
Screw conveyor shell diameter |
219m |
Gear box rotation speed |
200-310rpm |
Working angle |
<=45 degree |
Steel Thickness |
6mm |
Screw blade thickness |
5mm |
Conveyor Capacity |
40 ton/h |
Engine power |
5.5kw-15kw |

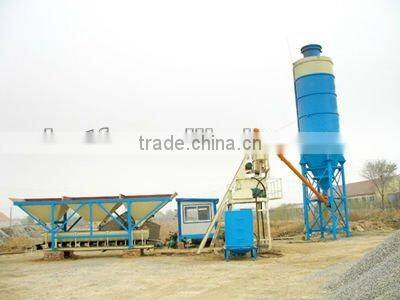

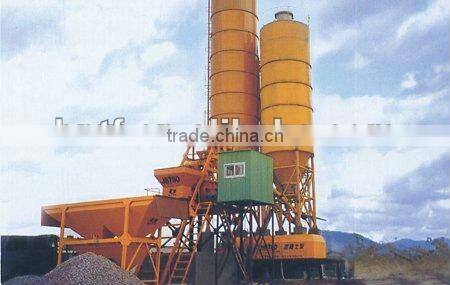

The screw conveyor can be used in the concrete building
Please contact :Alice Yue
Tel:0086-15838085304
