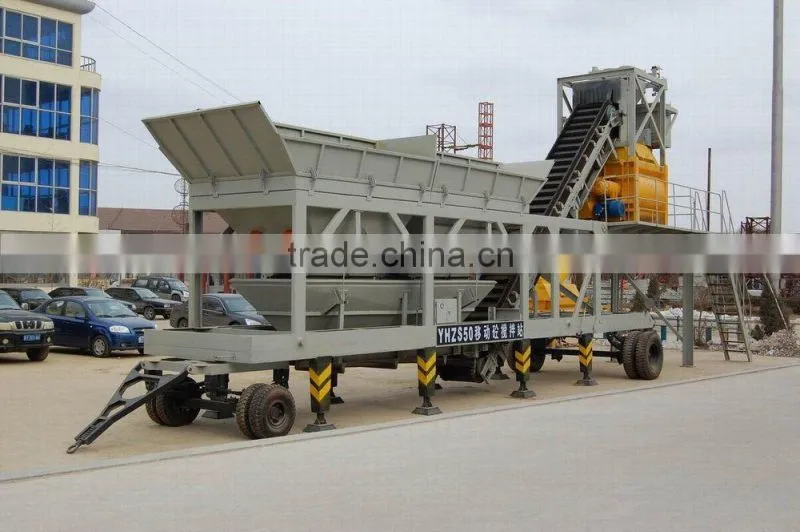

Factory Price mobile concrete batching plant for sale
Introduction

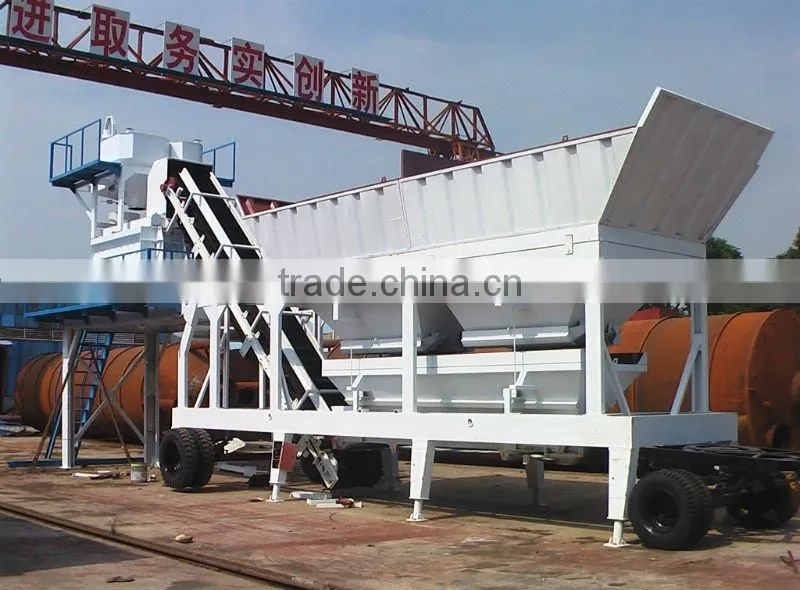

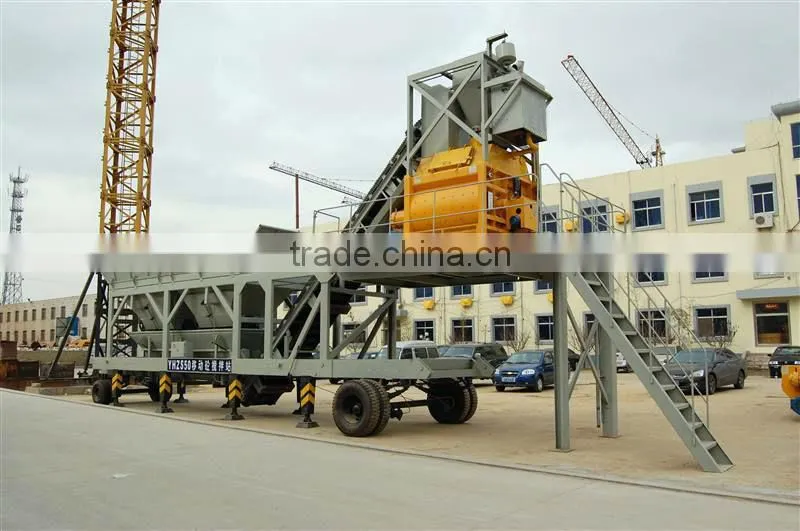

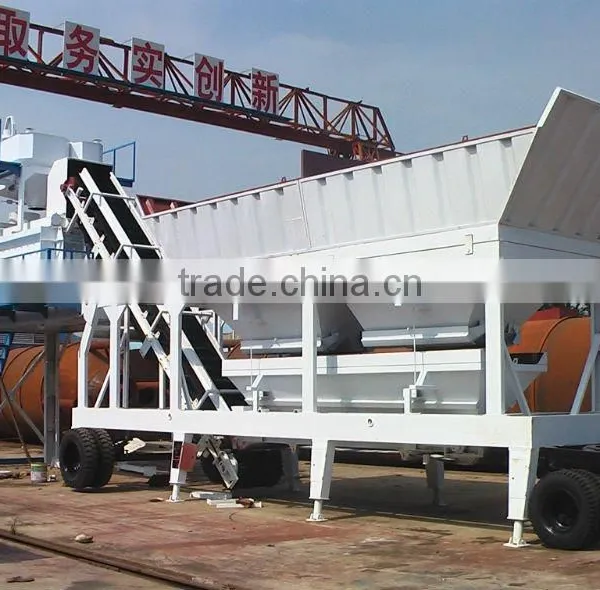

Mobile concrete batching plant is an innovation movable (by trailer) concrete mixing plant designed to fulfill a variety of applications. It is mobile so it’s an ideal model for distance construction projects like roads, bridges, ports and any other small-scale projects.Quick disassembling, move convenient.Other properties and operating mode, principle are same with fixed standard station .
Paremeter
Model |
YHZS50 |
||
Mixing Plant |
Theoretical productivity |
50m3/h |
|
Discharging Height |
3.8m |
||
Total Power of the whole line |
72.1kw |
||

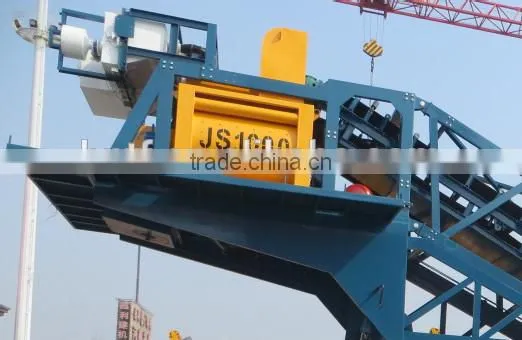

Mixing System |
Mixer Model |
JS1000 |
|
Power |
37kw |
||
Charge Capacity |
1600L |
||
Discharge Capacity |
1000L |
||
Material Diameter (pebble/gravel) |
60-80mm |
||
Aggregate Batching System |
Batching machine Model |
PL1600 |
|
Storage Hopper Capacity |
2*8m3 |
||
Belt Width |
650mm |
||
Belt Speed |
1.25m/s |
||
Motor Power & Quantity |
4kw, 1 unit |
||
Powder Storage System |
Detachable Silo Model |
100T |
|
Conveying System |
Screw conveyor |
Model |
LSY219-8 |
Size(Diameter*Length) |
219mm*8mm |
||
Belt conveyor |
Model |
DJ800x12m |
|
Motor Power |
11kw |
||
Dip Angle |
45° |
||

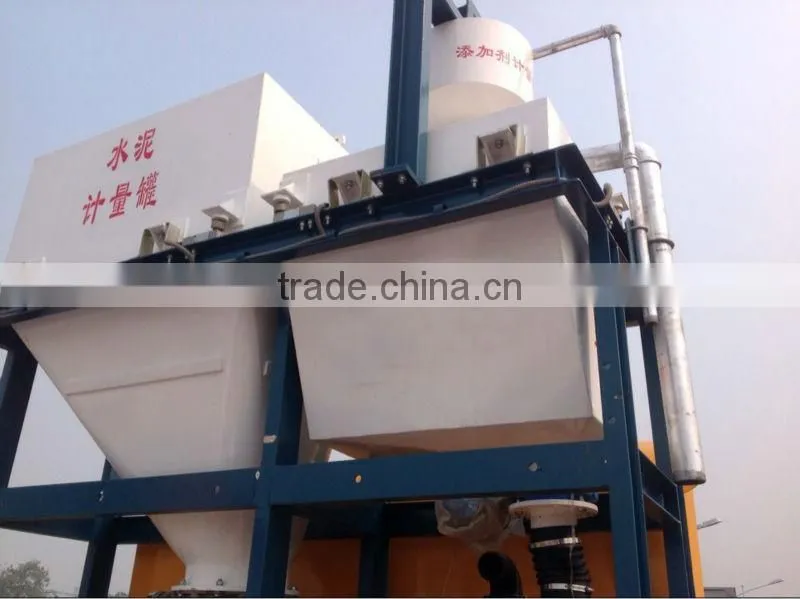

Weighing System |
Cement Scales |
600kg |
|
Water Scales |
300kg |
||
Additive Scales |
30kg |
||
Measurement Precision |
±1% |
||

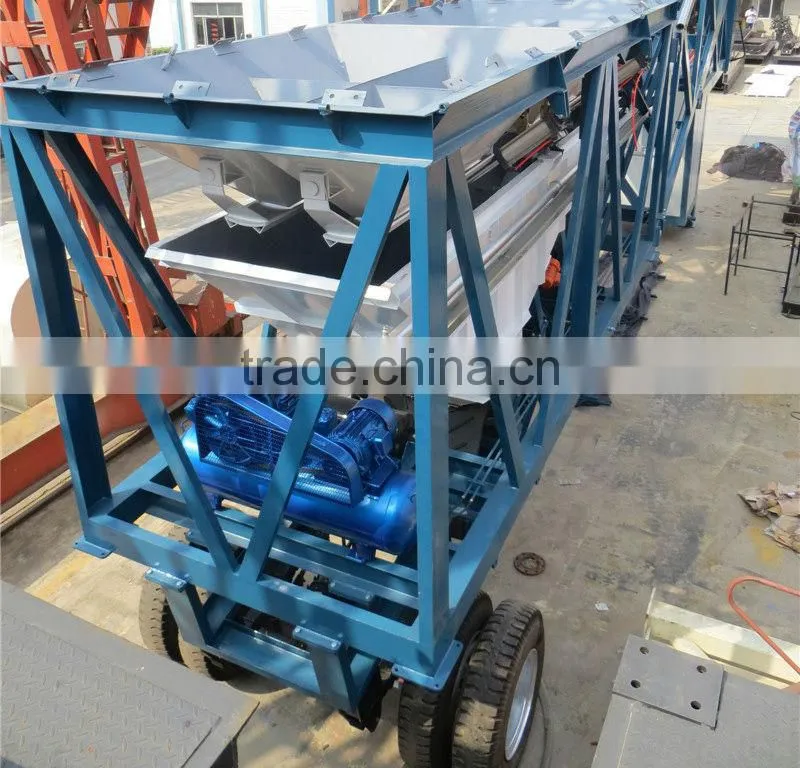

Air Supply System |
Air Compressor |
||
Electric Control System |
PLC control system, control console, Computer with Software, weak current regulator, printer, 19’’ LCD, Cabin, etc. |
||
