Specifications
yhzs25 concrete batching plant1.Cycle length:72
2.Rated discharging pressure:0.7
3.Capacity:25
4.Discharging height:1.7-3.8

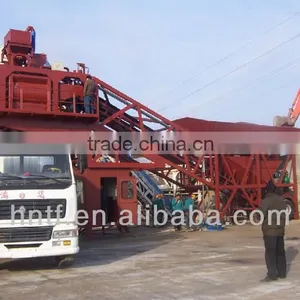

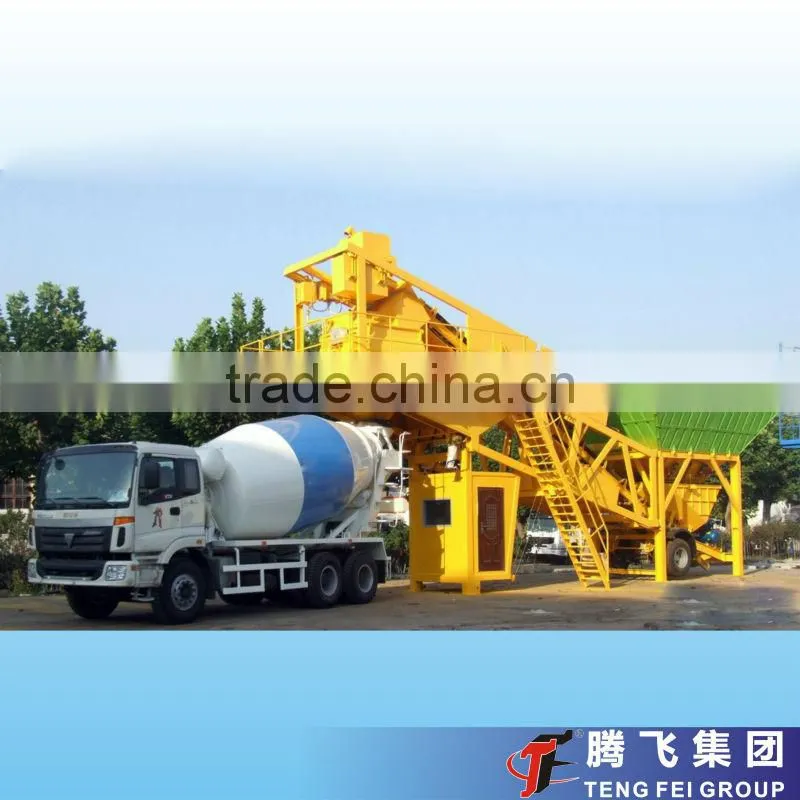

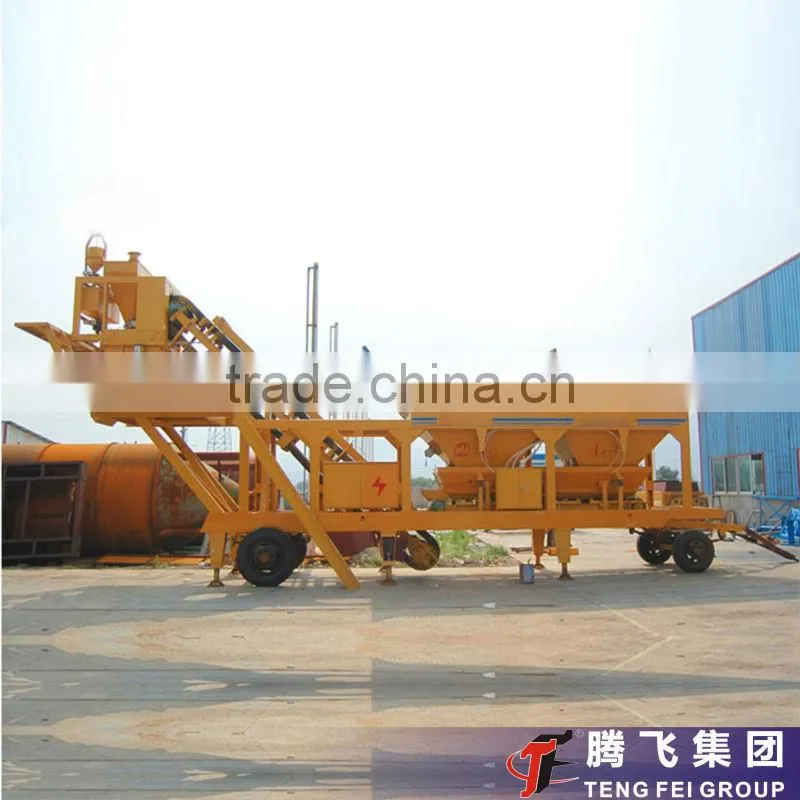

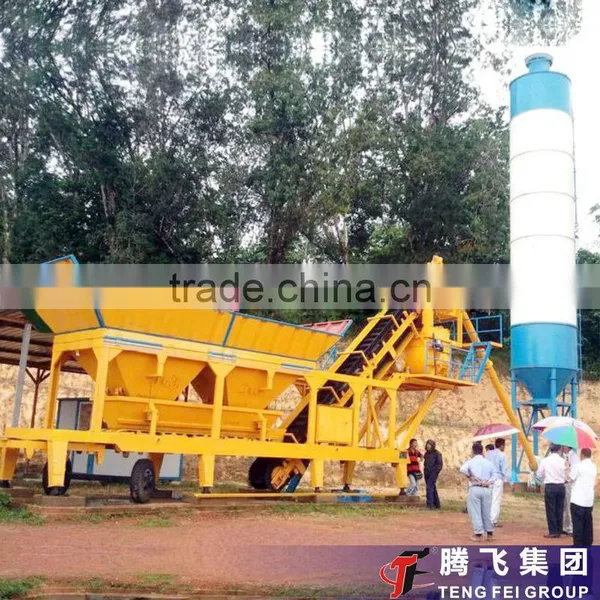

1. Introductions of yhzs25 concrete batching plant

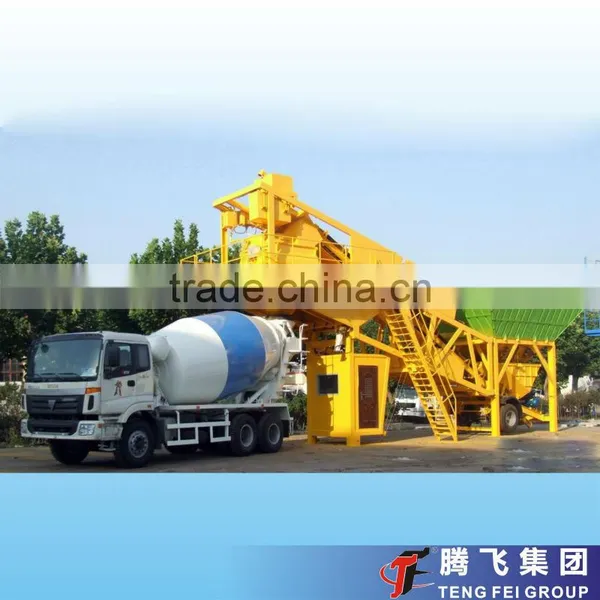

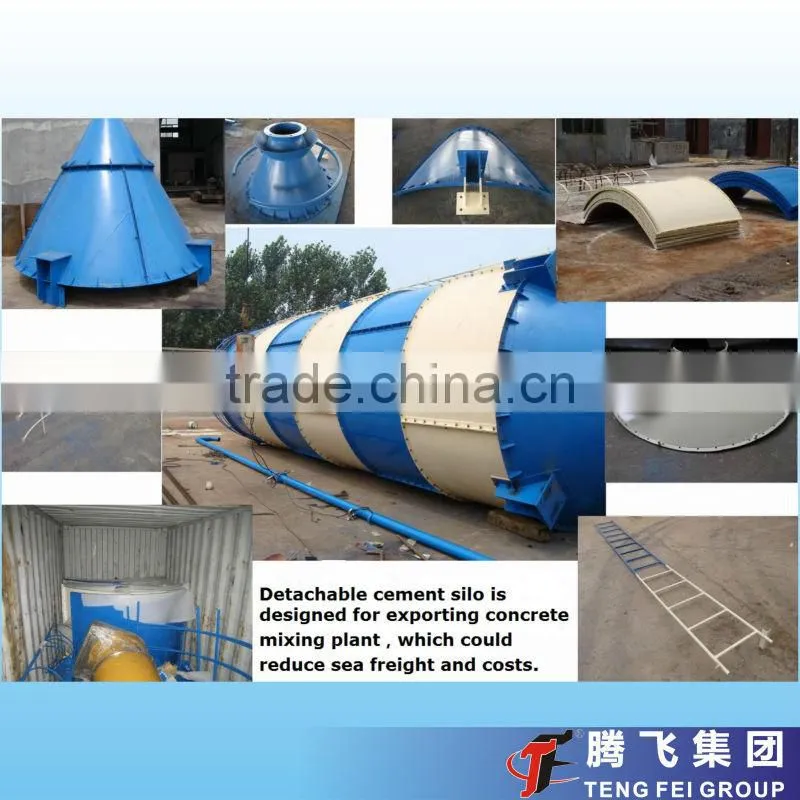

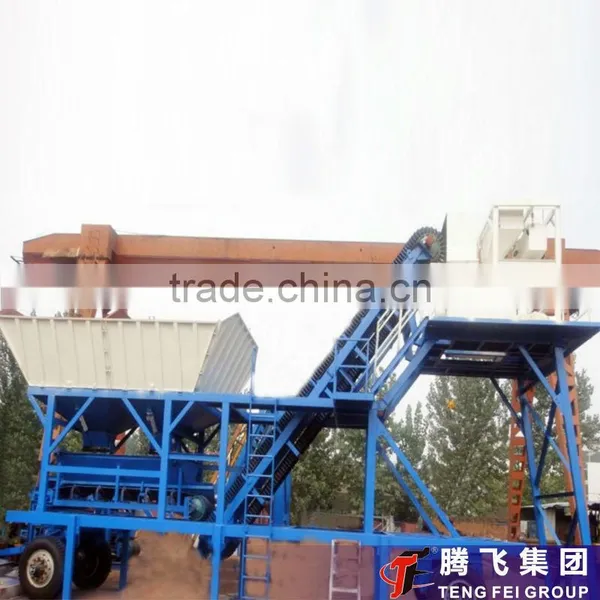

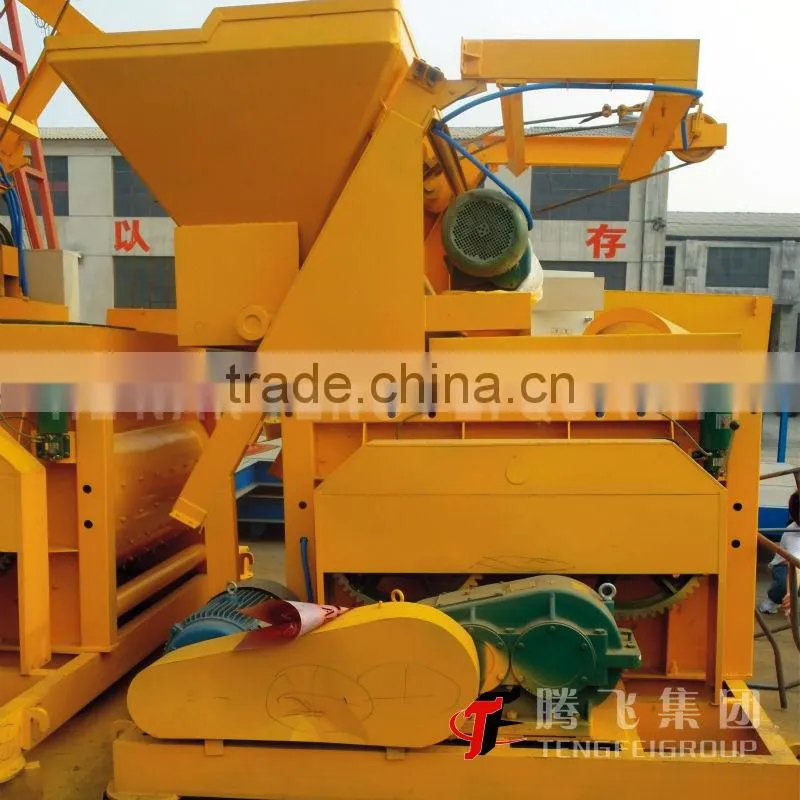

YHZS25 mobile concrete batching plant adopts double shafts mixer JS500 as main machine, and PLD batching device as dosing mechanism, cement silo and screw conveyor as storage and conveying mechanism.
2. Advantages of yhzs25 concrete batching plant
- The main electrical components are from the Schneider Electric Company
- Measure system. YHZS25 mobile concrete batching plant for sale equips with electronic scales to measure.

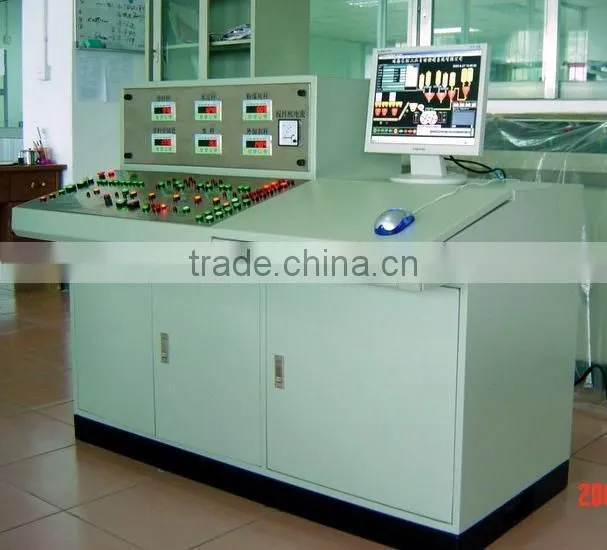

- Microcomputer control system. The microcomputer control system of YHZS25 mobile concrete batching plant for sale provides the functions of screen display, automatically equalize the fall and distributing ratio storage, and also can manage, store and print data.

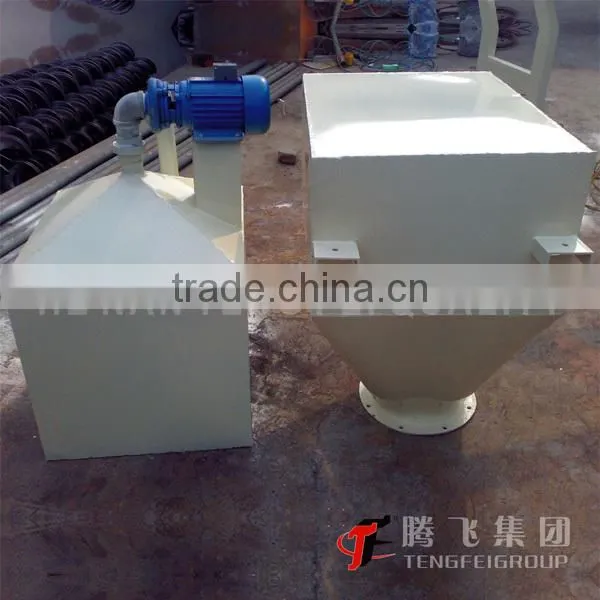

- Environmental protection. YHZS25 mobile concrete batching plant for sale equipe with the dust collective device.

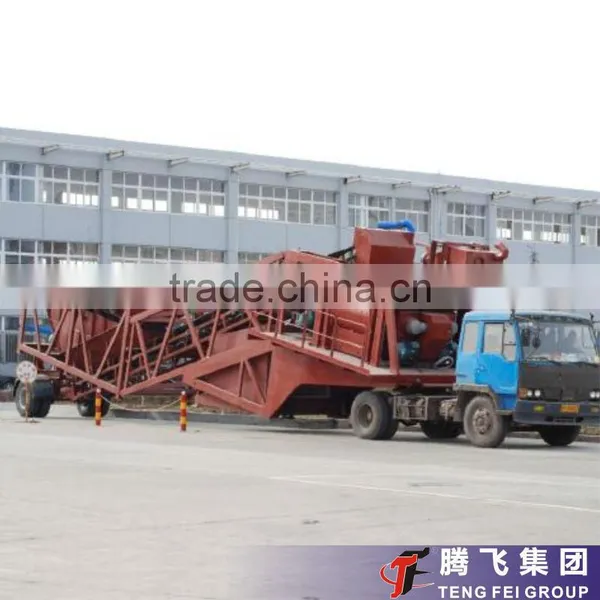

- Low cost, easy mobile and small occupation area; It can be manually controlled or automatic control.
3. Technical parameters of yhzs25 concrete batching plant
|
Model |
YHZS25 |
The whole plant part |
Capacity (m³/h) |
25 |
Discharging height (m) |
1.7-3.8 |
|
Cycle length (s) |
72 |
|
Dimension (mm) |
17843*11430*13000 |
|
Install gross capacity (m³/h) |
50.25 |
|
Mixing part |
Model |
JS500 |
Batching part |
Model |
PLD1200 |
Air circuit system |
Air compressor mold |
WA-100 |
Rated discharging pressure (mpa) |
0.7 |
|
Air displacement (m³/min) |
0.71 |
|
Motor capacity (kw) |
5.5 |
|
Weighing system |
Sand weighing precision |
2% |
Cement weighing precision |
1% |
|
Water weighing precision |
1% |

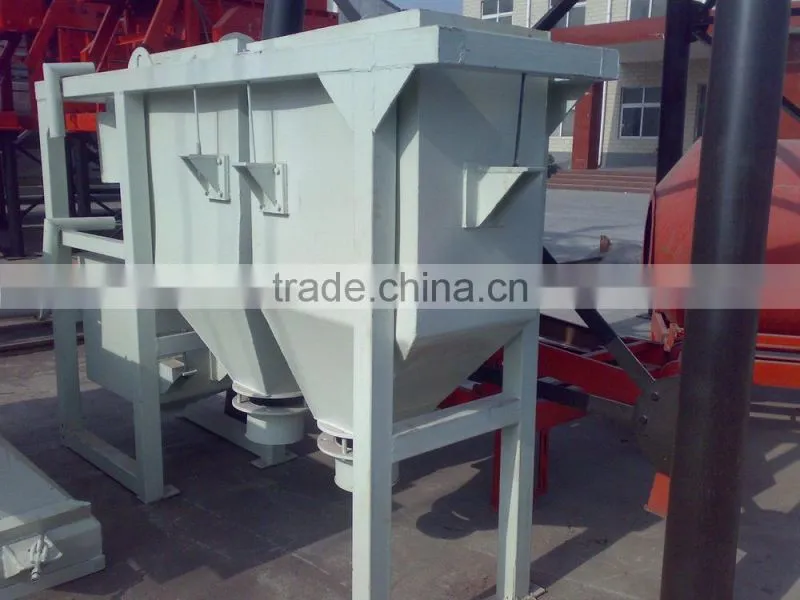

4. Constituent part of yhzs25 concrete batching plant
