Low Consumption Industrial Rotary Dryer for Sale

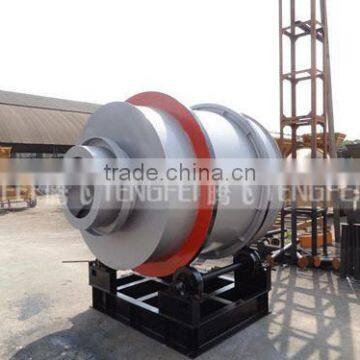

1. Introduction of TDS623 industrial rorary dryer
TDS623 rotary dryer can take full advantage of excess heat, reduce heat loss and increase the heat exchange area, making the unit evaporation intensity of the dryer greatly improved, thereby effectively improving the heat energy utilization rate, reducing the energy consumption and making the heat efficiency of three-cylinder dryer improved in a wider range. Compared with single-cylinder dryer with the same efficiency, its heat efficiency is improved about 50% and energy consumption saving doubles.
2. Parameters of TDS623 industrial rorary dryer
Three Pass Dryer |
TDS623, 1 set |
Drying capacity |
1-3 m3/h |
Diameter of drum |
2200mm |
Length |
1500mm |
Motor power |
4kw |
Reducer model |
XWD-5 |
Speed of drum rotation |
4-10 r/min |
Moisture of end products |
0.1%-0.8% |
Max. temperature inside |
700-750℃ |
Outlet temperature |
30-60℃ |
Hot-blast Stove dimensions |
1.55m×1.3m×2.18m |
Furnace door |
450*550 mm |
Quicksand tube |
φ165×1600 mm |
Coal consumption |
7-10 kg/ per ton sand |

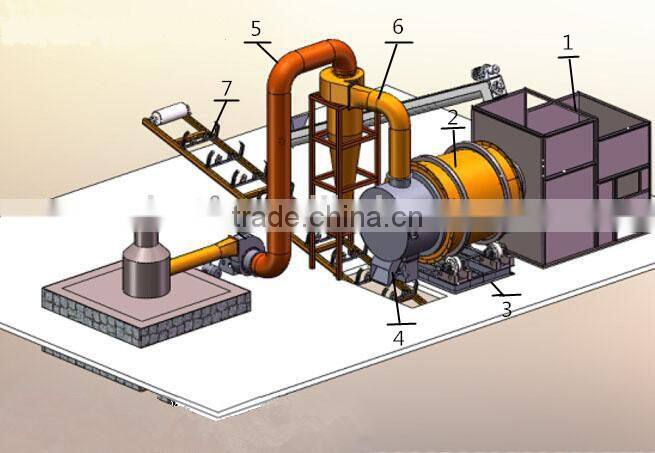

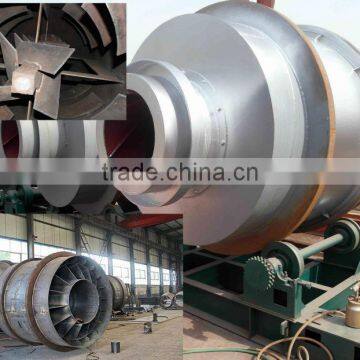

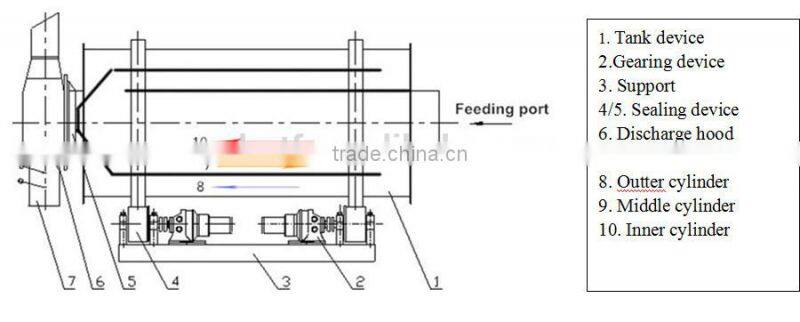

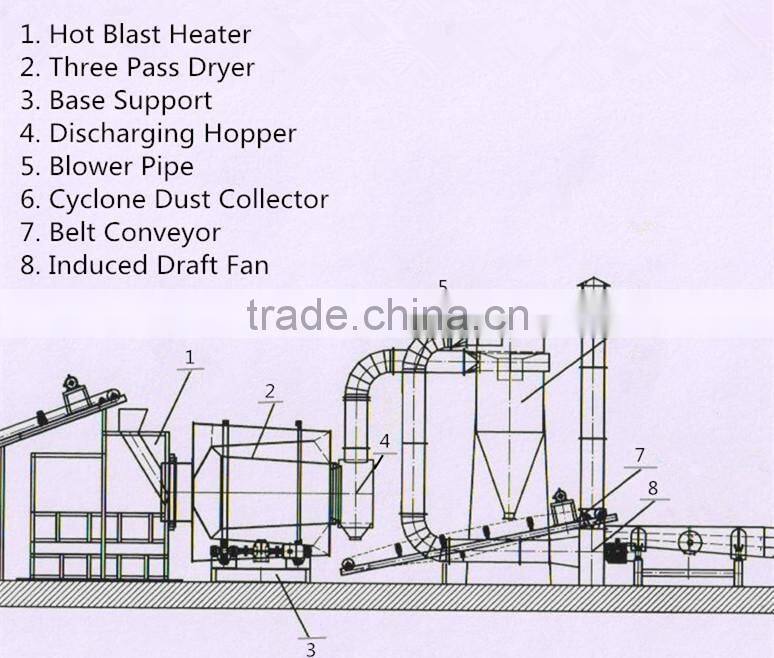

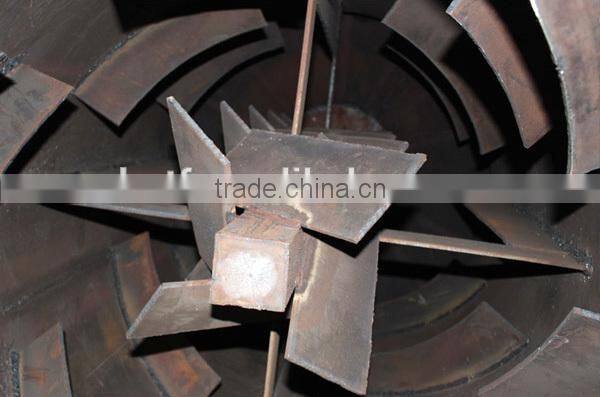

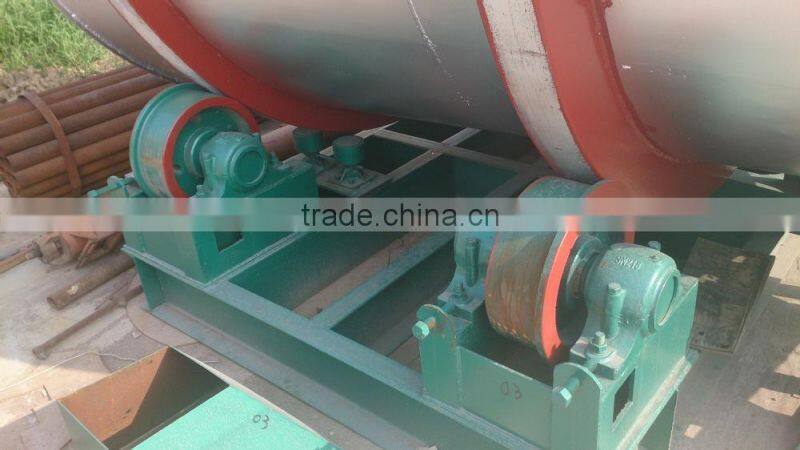

Main parts of TDS623 rotary dryer
