JS series concrete mixer machine is double horizontal shafts forced mixer, which has two mixing shafts inside the mixing cylinder. When the mixer is working,both the two shafts are running synchronously.It can work independently,also can be composed into the concrete batching plant.
This series of product design, reasonable structure,layout is novel,convenient repair and use.Leg segment height design: JS500 1500mm,JS750 1600mm,JS1000 2700mm and 3800mm.Contactors can equip with anti-dump,dump truck, mixer truck,also according to the special requirements of the user system,to meet the needs of users.
Item |
JS1000B |
||
Discharging capacity (L) |
1000L |
||
Charging capacity (L) |
1600L |
||
Output Capacity(m3/h) |
60 m3/h |
||
Max. Aggregate Size (mm) |
60/80mm |
||
Cycle Time (s) |
60-75s |
||
Mixer Motor |
Power (kw) |
2*18.5 kw |
|
QTY |
2 units |
||
Hoist Motor |
Power (kw) |
-- |
|
QTY |
-- |
||
Electric Oil Pump |
Power (kw) |
0.9kw |
|
QTY |
1unit |
||
Water Motor |
Power (kw) |
3kw |
|
QTY |
1unit |
||
Mixing Blade |
Rotate Speed (r/min) |
25r/min |
|
QTY |
2*8=16units |
||
Feeding type |
Belt conveyor |
||
Discharging type |
Pneumatic control, Automatically |
||
Dimensions (m) |
Transportation situation |
4.32*2.2*3.3m |
|
Working situation |
10.46*3.4*9.05m |
||
Weight (t) |
6.0tons |
||

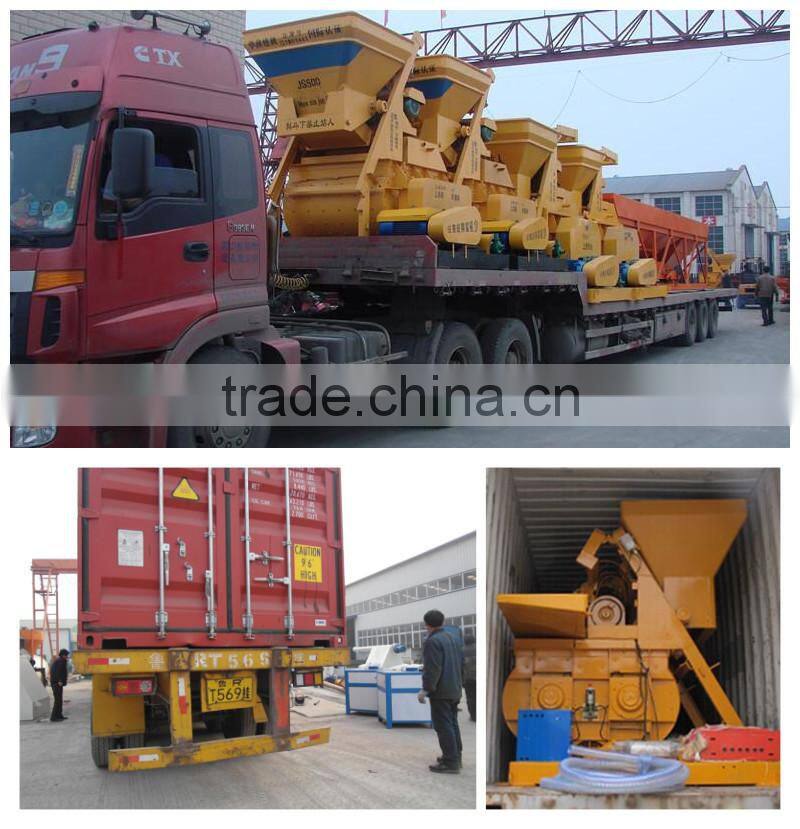

1)FCL: in nude for standard exporting container
2)LCL: Poly wood case
Wire cables are used for fastening the machine
Cork wood are placed in front or behind the machine to protect it.
Plastic film is covered on the machine as a rain-roof.
Crane is used during the whole loading.
1.According to your inquiry, We will reply to you in 24 hours.
2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
3.WARRANTY :12 Months Warranty period, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
TENGFEI GROUP since 1958, have been one of the largest Construction Machinery suppliers in China now, located in Zhengzhou, main products are Dry Mortar Production Line, Concrete Batching Plant, Concrete Mixer Machinery etc.
