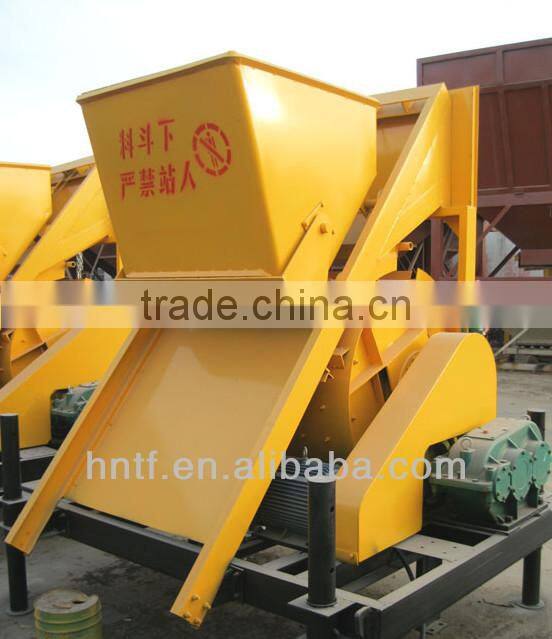

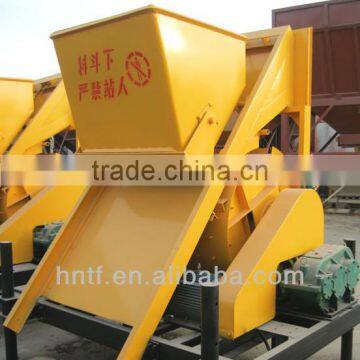

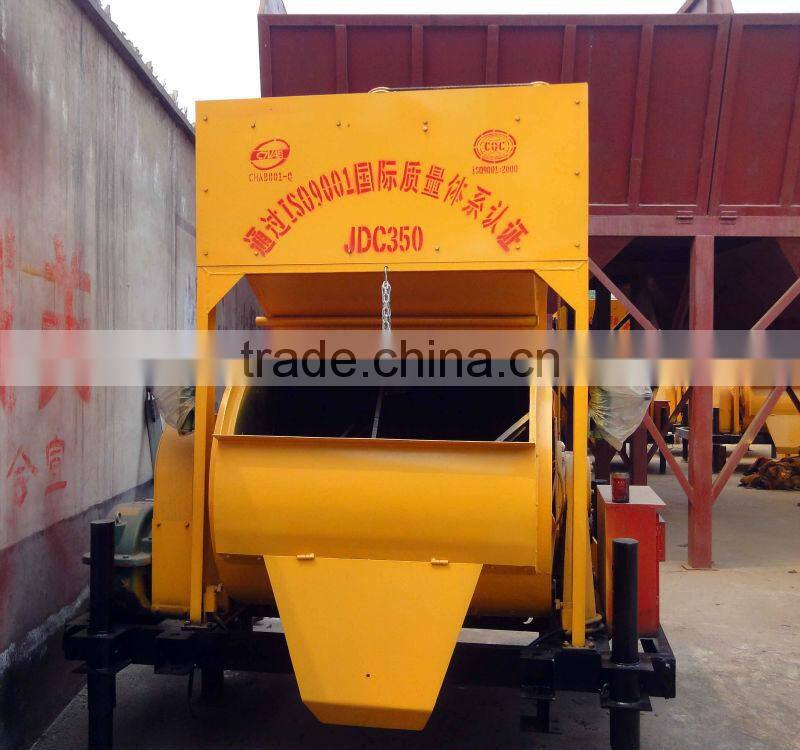

Movable Electric Concrete Mixing Machine
with 17-20m3/h Productivity
- JD series concrete mixer is a new type of concrete mixer with multiple functions. Machines in this series can apply for the mix of plastic concrete, dry concrete, light weight aggregate concrete and different mortars.

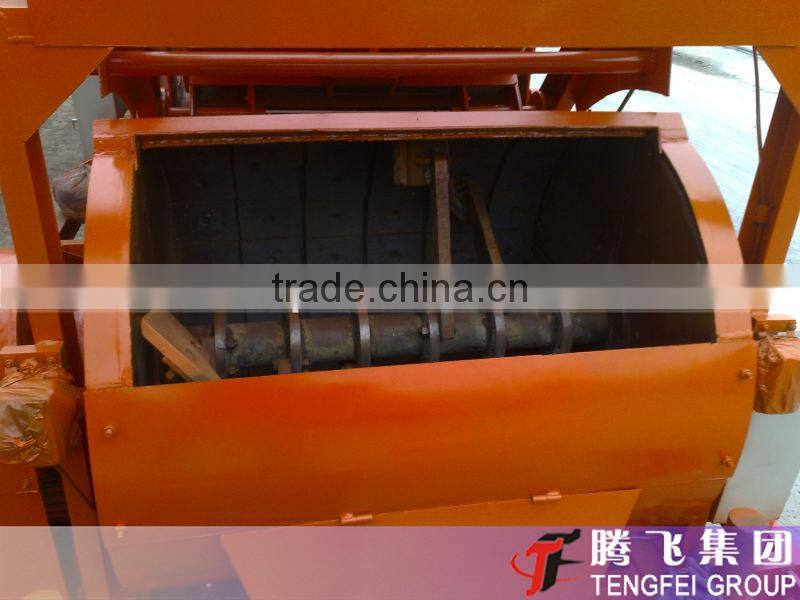

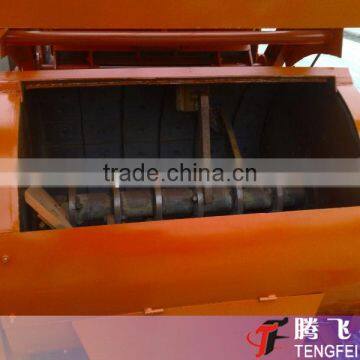

- JD series concrete mixer have advantages of wide application range, good mixing quality, high production efficiency, low energy consumption and noise. Besides, reasonable structure, easy operation, high speed of discharging, long service life of liner and blades and easy maintenance are also the strong points of JD series concrete mixer.
- JD series concrete mixers are the ideal machines for construction sites as well as small and medium component company.
Specification |

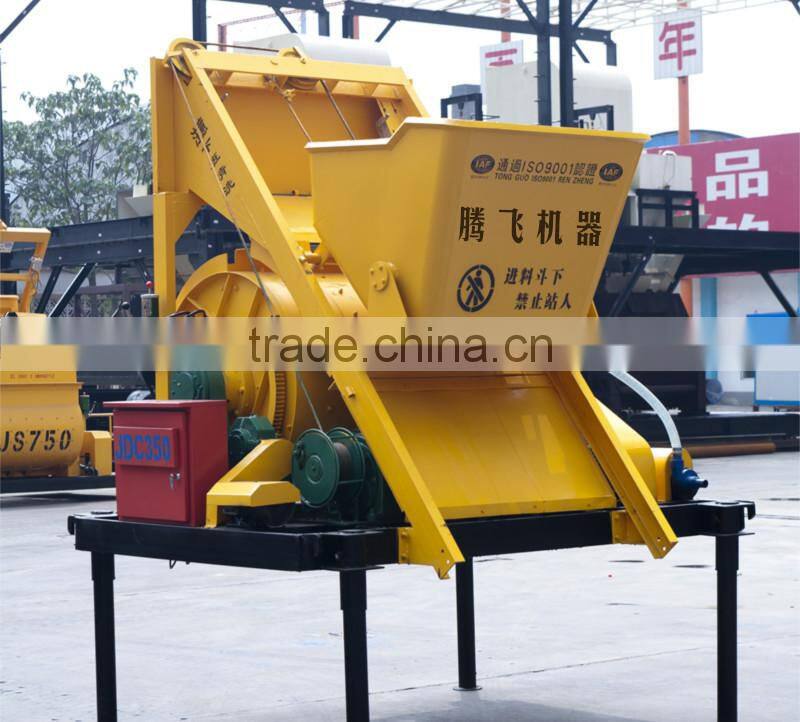

JDC350 |
JDC500 |
Discharging Capacity (L) |
350 |
500 |
Charging Capacity (L) |
560 |
800 |
Max aggregate diameter(gave/pebbles) |
40/60 |
40/60 |
Mixing motor power(kw) |
15 |
18.5 |
Lifting motor power(kw) |
4.5 |
5.5 |
Discharge power(kw) |
2.2 |
2.2 |
Pump motor power(kw) |
0.75 |
1.1 |
Stirring speed(rev/min) |
25 |
25 |
Hopper lifting speed(m/min) |
18 |
18 |
Productivity(m/h) |
17.5-21 |
20-30 |
Working Cycle Period (s) |
60 |
60 |
Dimensions(L*W*H)(mm) |
4150*2700*3150 |
4330*2700*5000 |
Total Weight (kg) |
3000 |
3700 |

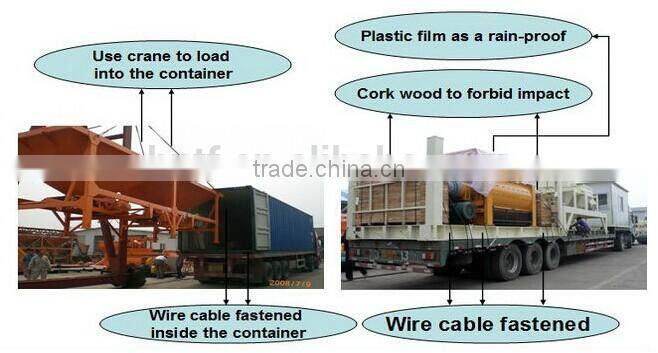

1)FCL: in nude for standard exporting container
2)LCL: Poly wood case
Wire cables are used for fastening the machine
Cork wood are placed in front or behind the machine to protect it.
Plastic film is covered on the machine as a rain-roof.
Crane is used during the whole loading.
According to your inquiry, We will reply to you in 24 hours.
Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
WARRANTY :12 MONTHS
Warranty period, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
TENGFEI GROUP since 1958, have been one of the largest Construction Machinery suppliers in China now, located in Zhengzhou, main products are Dry Mortar Production Line, Concrete Batching Plant, Concrete Mixer Machinery ect Construction Machinery and Mining Machinery.
