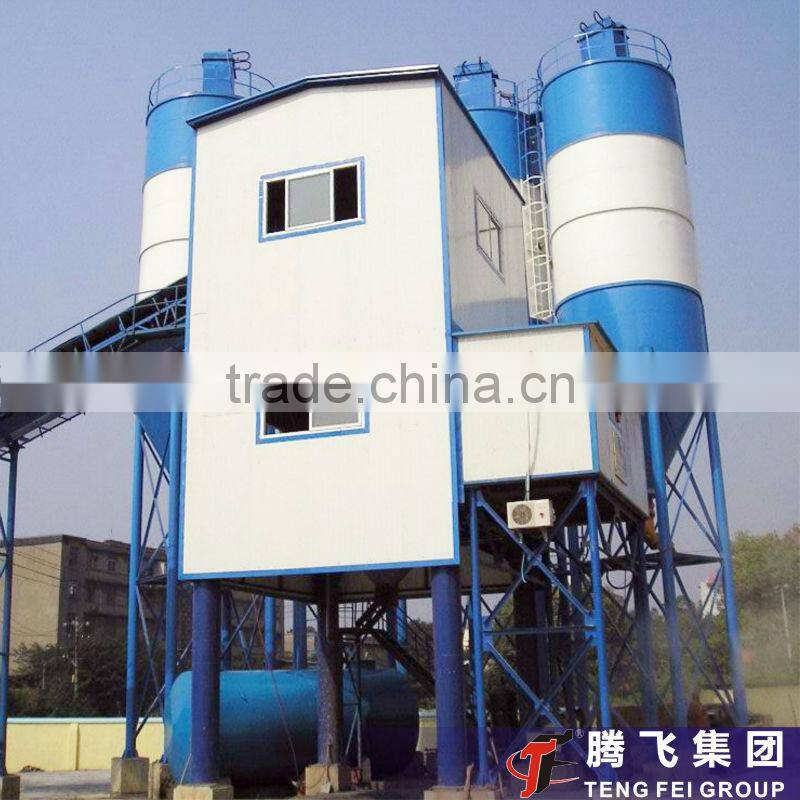

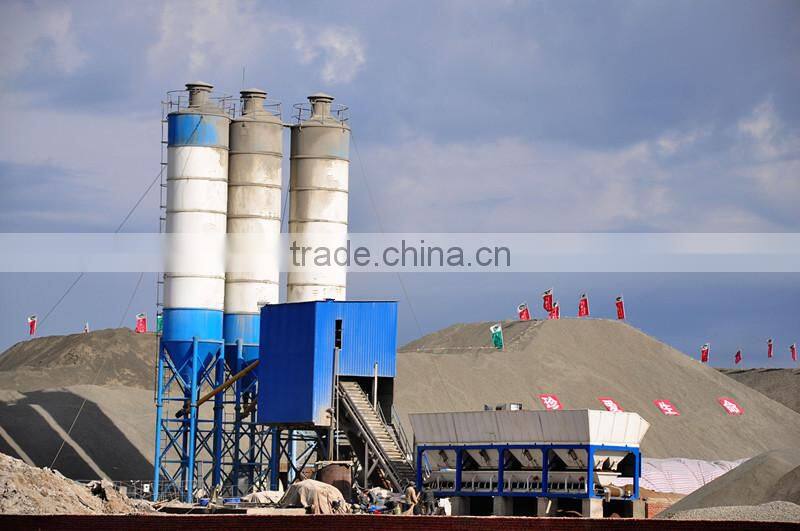

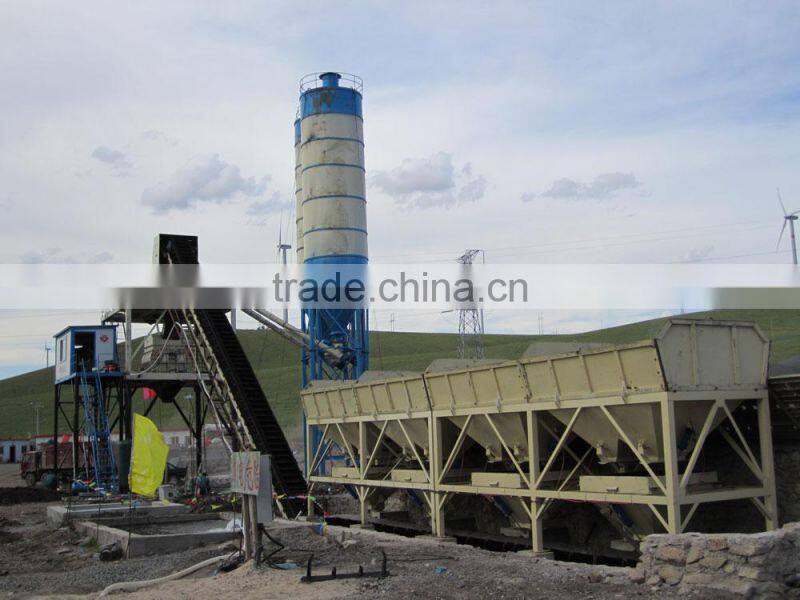

HZS60 concrete batching plant 60m3 with belt conveyor for sale
1. Introduction of HZS60 concrete batching plant 60m3/h
It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf and the national defense-project and so on.
2. Advantages of HZS60 concrete batching plant 60m3/h
Excellent mixing performance:
Sicoma mixer with strong mixing ability is used to eliminate “blind mixing zone” to ensure uniform concrete.
High production output:
Anti-binding technology for mixing shafts to prevent cement from binding on it.
Long service life:
Stationary modular structure plus Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials and wear resistance for liners, saving time and cost to replace parts of stationary concrete batching plant sale.
Environmental protection:
Seal mixing process, dust collection system and anti-noise design.

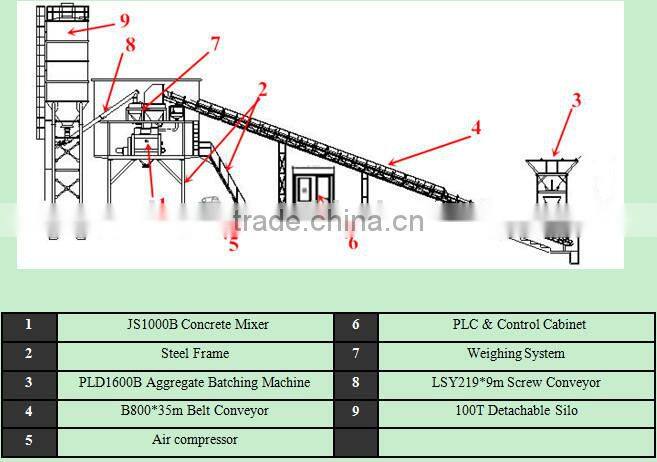

3. Parameter of HZS60 concrete batching plant 60m3/h
Model |
HZS60 |
|
Mixing Plant |
Theoretical productivity |
60m3/h |
Discharging Height |
3.8m |
|
Installation Capability |
108.8kw |
|
Mixing System |

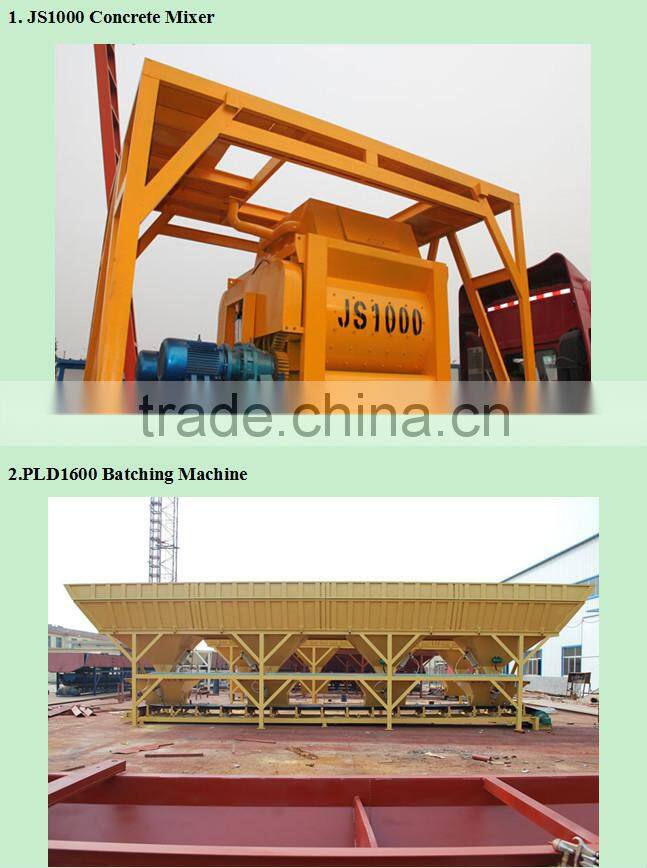

Mixer Model |
JS1000 |
Power |
2*18.5kw |
|
Charge Capacity |
1600L |
|
Discharge Capacity |
1000L |
|
Material Diameter (pebble/gravel) |
60-80mm |
|
Aggregate Batching System |
Batching machine Model |
PL1600 |
Storage Hopper Capacity |
4*10m3 |
|
Weighing Hopper Capacity |
4*1.6m3 |
|
Accuracy |
±2% |
|
Powder Storage System |
Detachable Silo Model |
100T |

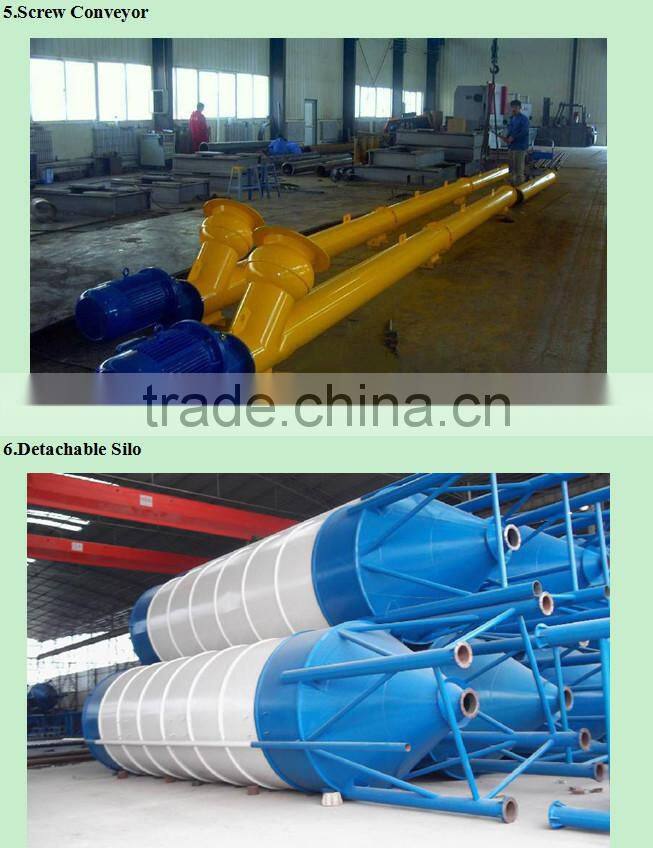

Conveying System |
Screw Conveyor Model |
LSY219-9 |
Size(Diameter*Length) |
219mm*9mm |
|
Belt Conveyor Model |
B800 |
|
Size(Width*Length) |
800mm*3500mm |
|

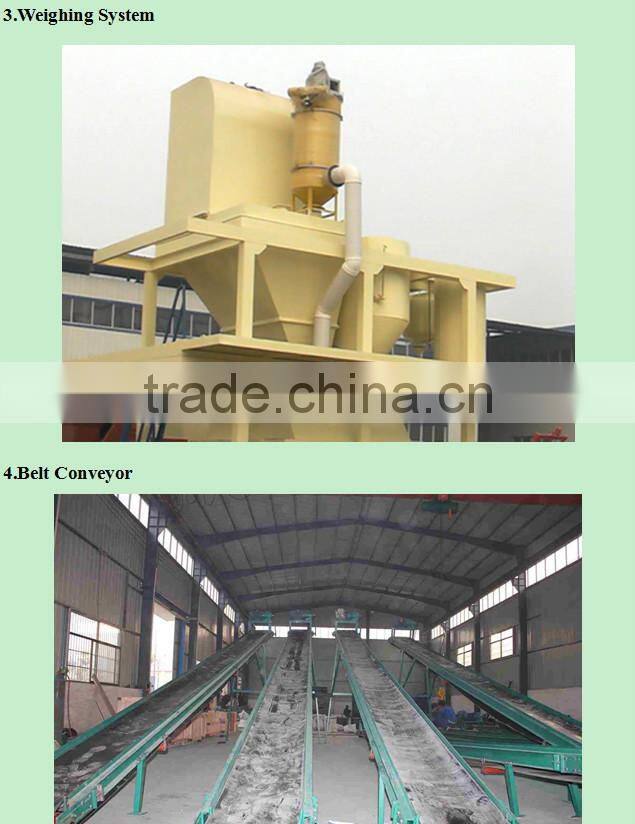

Weighing System |
Cement Scales |
600kg |
Water Scales |
300kg |
|
Additive Scales |
30kg |
|
Fly ash Scales |
400kg |
|
Measurement Precision |
±1% |
|
Air Supply System |
Air Compressor |
|

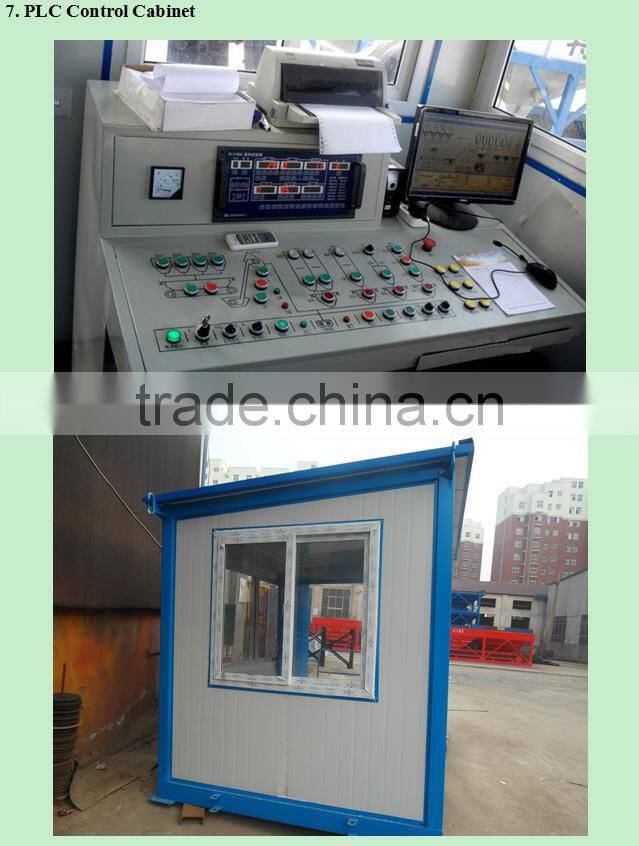

Electric Control System |
PLC control system,control console,weak&heavy current regulator |
|
HZS25 Concrete Batching Plant
HZS180 Concrete Batching Plant

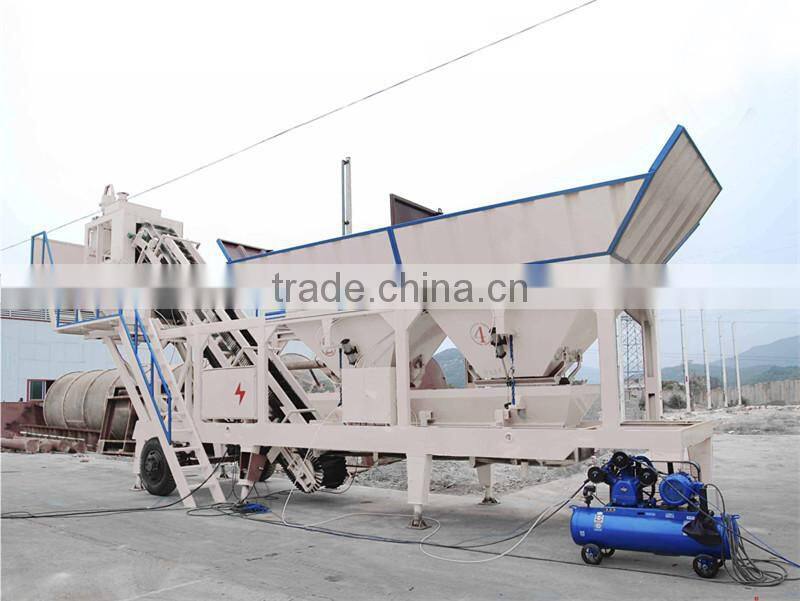

YHZS25 Mobile Concrete Batching Plant
