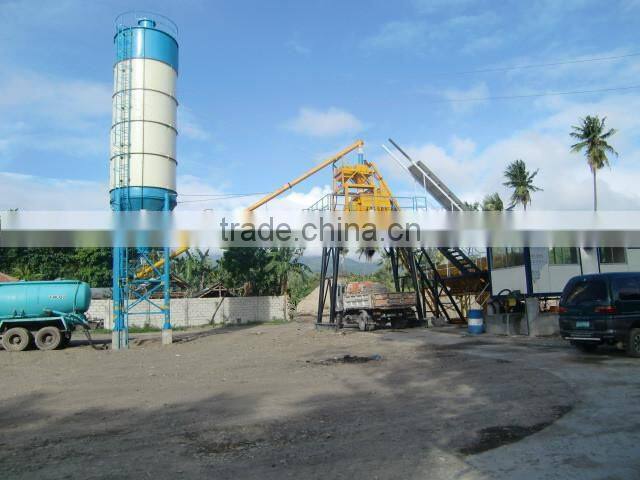

HZS25 mini concrete mixing plant manufactuer
1.The Hopper Lift or Belt Conveyor arrangement option for mixer loading
2.Available in various capacities ranging from 25 cubic meter to 180 cubic meter per hour of concrete output
3.It adpot twin shaft concrete mixer,with high manganese wear-resisting cast steel lining board and mixing blades which is durable and convenient to replace.

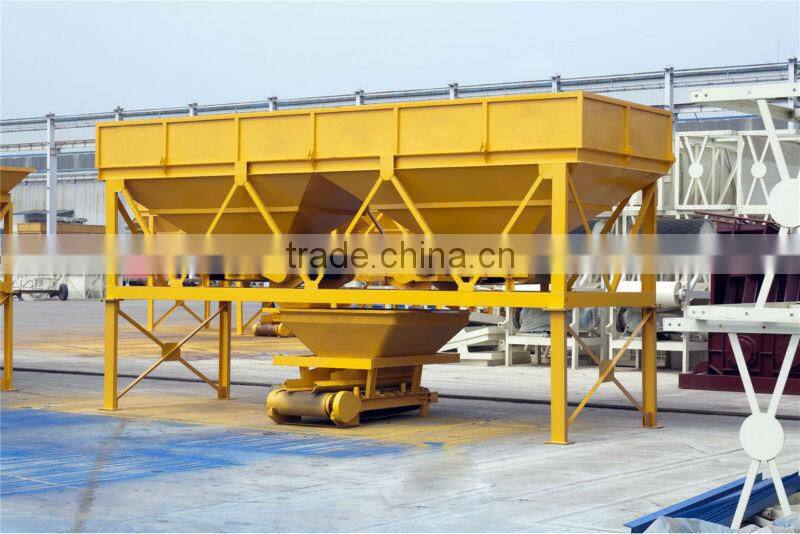

4.The plants are provided with two,three or four in-line aggregate bins with an option of total storage capacity from 10 to 100 cubic meter, based on plant size.
5.High precision load cells for independent electronic weighing of cement, aggregates & water with digital display.
6.automatic PLC based control system
7.Modular design providing flexibility to adopt to different layout requirements
8.Designed for ready-mix producers, contractors, precast manufacturers and special applications.
Specification | |
Productivity |
25m3/h |
Discharge Height |
3.8m |
Max. Aggregate Size(gravel/pebble) |
60/80mm |
Mixer Capacity |

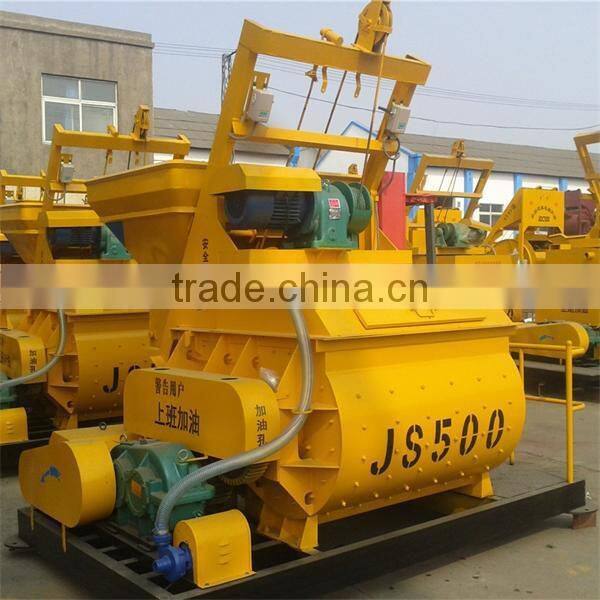

500L twin shaft mixer |
The Capacity of Aggregate Bin |
2m3 x2 |
The Capacity of Aggregate Weighing Bin |
0.8m3 |
Loading Type of Aggregate to the Mixer |
Skip Hoist Hopper |
Cement Weighing Capacity |
250kg |
Water Weighing Capacity |
150kg |
Additive Weighing Capacity |
30kg |
Screw Conveyor |
Ø 219 mm |
Cement Silo |
Bolted Type 50T/100T |
Control System |
Automatic/Manual |

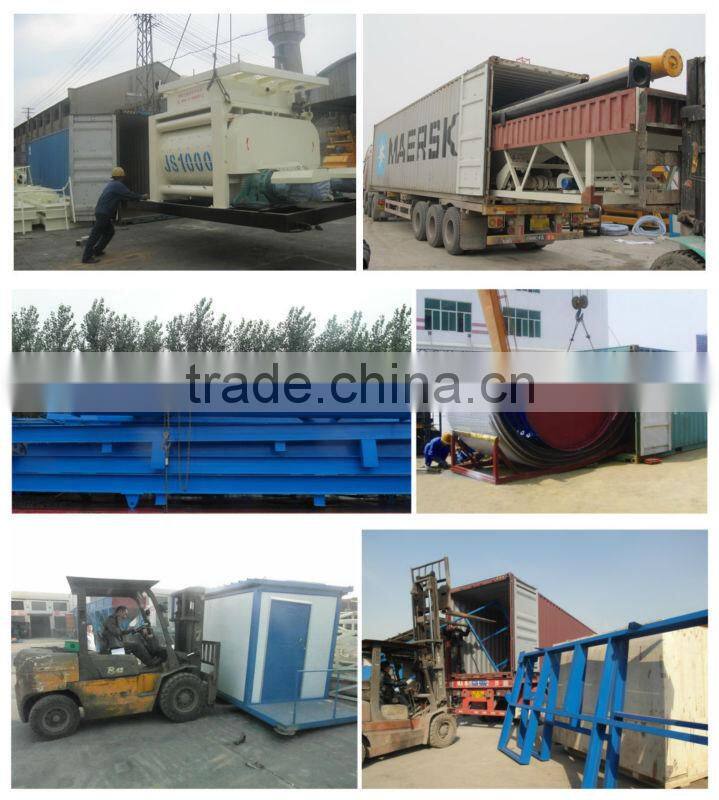

1)FCL:20''GP,40''HQ ect standard exporting container
2)LCL,Poly wood case
Wire cables are used for fastening the machine
1.pre-sale service: we can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: we can solve professional technical problems and other related issues for you.
3.after-sales service: we provides that engineers available to service machinery overseas and equipment for life maintenance.
TENGFEI GROUP since 1958, have been one of the largest Construction Machinery suppliers in China now, located in Zhengzhou, main products are Concrete Batching Plant, Concrete Mixer Machine,dry mortar mixing equipment and etc.
