Specifications
concrete aggregate batching machine1.Production capacity:120CBM/h
2.BV
3.Batching accuracy:2%
4.Variety of material:2-5

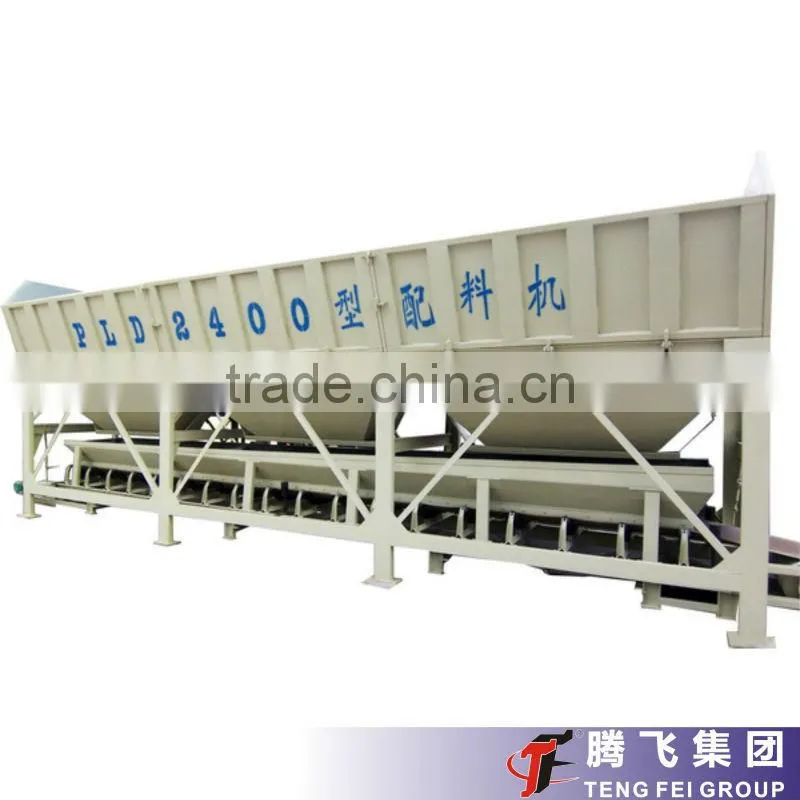

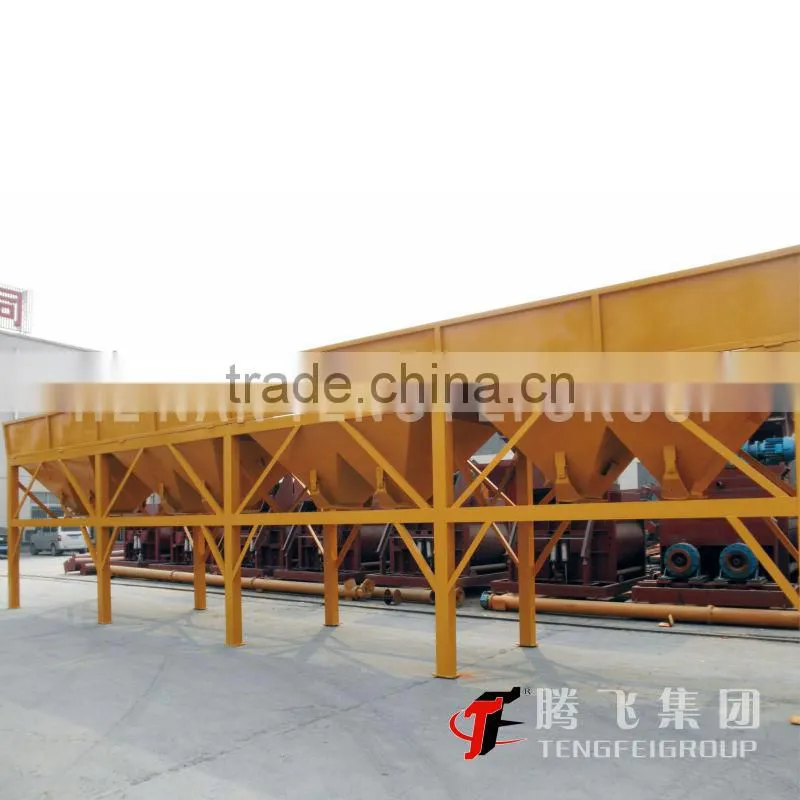

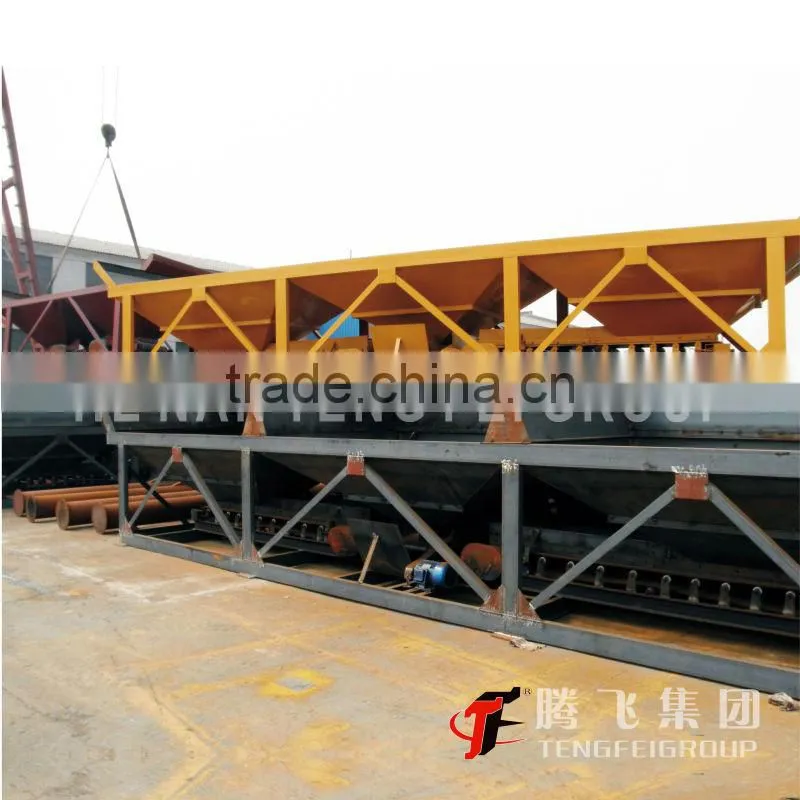

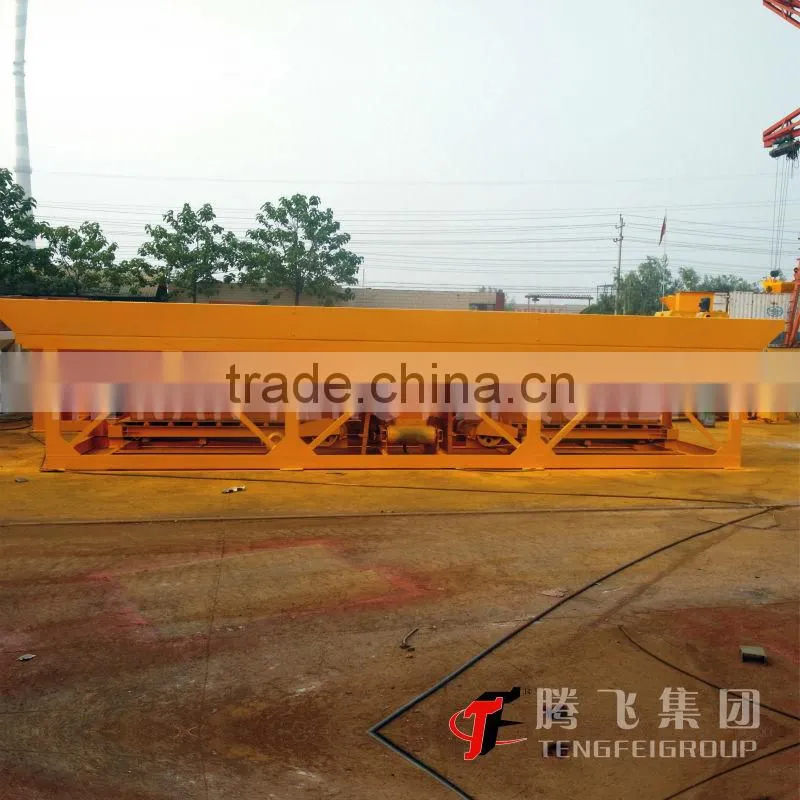

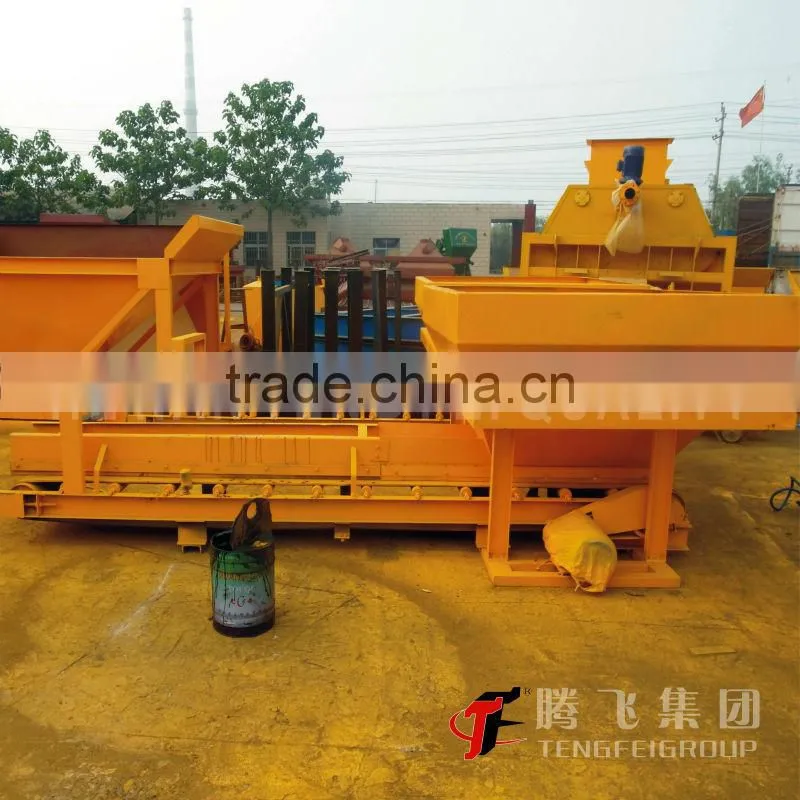

PLD2400 concrete aggregate batching machine
1, Introductions of PLD2400 concrete aggregate batching machine
Concrete batching machine loading materials by loader or belt conveyor is automation equipment used for quantitative distribution of materials, which mainly used in concrete construction industry to replace artificial platform scale or volume measurement, etc .
2. Preponderance of PLD2400 concrete aggregate batching machine
1) rough weighing or precision weighing, high precision
2) main fittings adopts international famous brand with high reliability
3) the reasonable overall structure , strong stiffness and beautiful
4) smooth delivery, ensure the normal feeding
5) weigh four aggregate at the same time, high efficiency
6) head of Belt has keep-off cover, effectively prevent splashing
3. PLD2400 concrete aggregate batching machine
This series of products adopt electronic weighing, computer control, digital display, and wired remote control. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, easy operation, reasonable design, compact structure and long service life. Widely used in all kinds of large and medium-sized construction project and concrete mixing station.
PLD series of concrete batching machine includes: PLD800, PLD1200, PLD1600, PLD2400, PLD3200, PLD4800, etc.
4. Parameter of PLD2400 concrete aggregate batching machine
Model of PLD series |
2400 |
3200 |
Weighing hopper capacity (L |
2400 |
3200 |
storage hopper capacity(m³) |
4*10 |
4*18 |
Production capacity (m³/h) |
120 |
160 |
Batching accuracy |
2% |
2% |
Maximum capacity(kg) |
4000 |
5000 |
Variety of material |
2-5 |
2-5 |
Filling height(mm) |
2900 |
2300 |
Speed of feeding belt |
1.25 |
1.25 |
Power (kw) |
11 |
15 |
Total weight(kg) |
8500 |
10500 |
Outline dimensions (mm) |
10000*2200*4000 |
14500*3000*4600 |

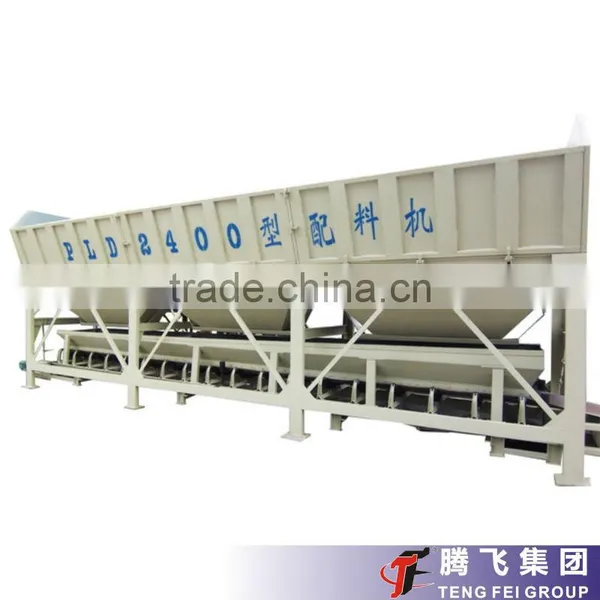

Detailed drawing
1.Delivery time: 15 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole loading.
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
Why chose Henan Teng Fei?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
How long is the warranty?
The warranty period is 12 months.
What services does it provide?
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
What is the Teng Fei’s basic philosophy?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
