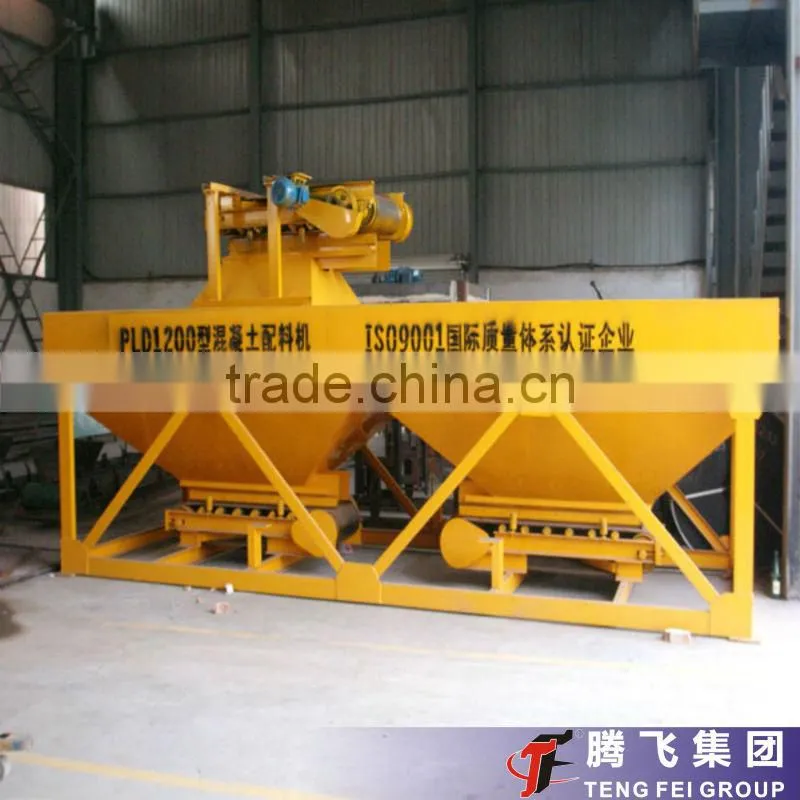

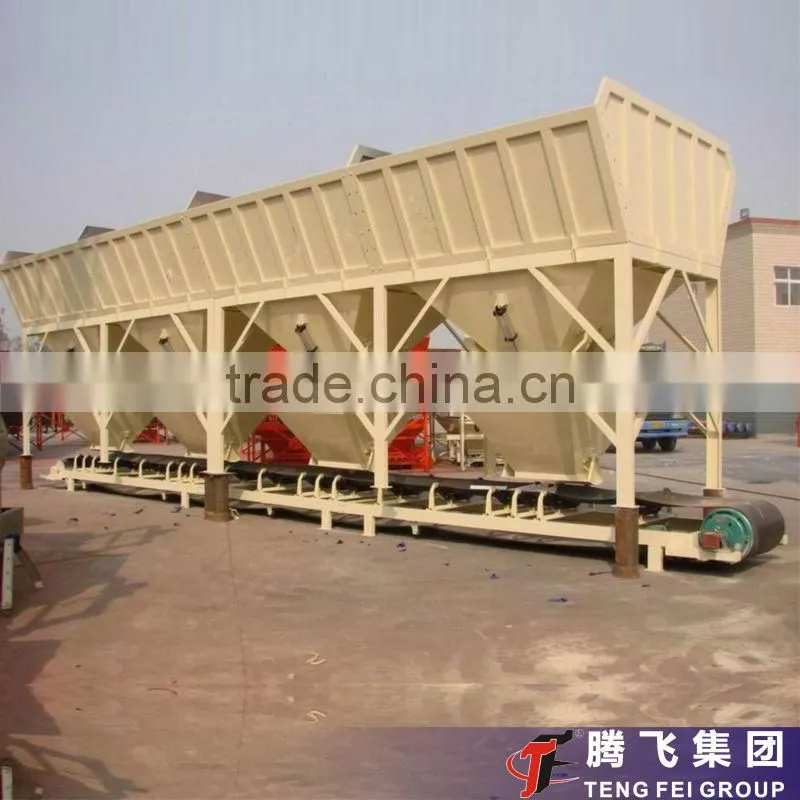

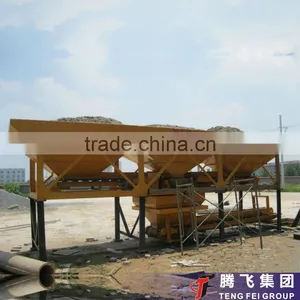

Concrete batching machine PLD1200 concrete batching pld

Specifications

PLD1200 concrete batching pld
1.Out volume:4*3m3
2.Productivity:60
3.Weighing hopper capacity:800L
4.BV

Concrete batching machine PLD1200 concrete batching pld



1. Introductions of PLD1200 concrete batching machine price

Concrete batching machine loading materials by loader or belt conveyor is automation equipment used for quantitative distribution of materials, which mainly used in concrete construction industry to replace artificial platform scale or volume measurement, etc .





2. PLD1200 concrete batching pld

PLD series concrete batching machine is a kind of equipment with automatically batching material on the front desk and using mixer together. It can automatically finishing the batching procedures of 3-6 kinds of materials (second grade concrete) such as sand, stone, cement according to users’ requirement. These serial products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation. After this serial concrete batching machine with relative concrete mixer, different types and specification combined concrete mixing station can be formed.

3. Parameters of PLD1200 concrete batching pld



Type	PLD800	PLD1200A	PLD1200B
Weighing Hopper Capacity (L)	800	1200	1200
Storing Hopper Capacity (m3)	3*2m3	4*3m3	3*3m3
Productivity(m3/h)	48	60	60
Batching Accuracy	±2%	±2%	±2%
Max measuring(kg)	2000	3000	3000
Aggregate	2—3	2—4	2—4
Feeding Height(mm)	2430	2600	2600
Speed of feeding(m/s)	1.25	1.25	1.25
Power(kw)	3*3	3*3	4*3
Total weight	2300	2800	410
Outline dimension	5400 *1800 *3010	6000 *1800 *3090	8400 *1800 *3100



1.Delivery time: 15 days after receipt of your deposit.

2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.

3.Package:

1).Wire cables are used for fastening the machine on the trailer or inside the container.

2).Cork wood are placed in front or behind the machine to protect it.

3).Plastic film is covered on the machine as a rain-roof.

4).Crane is used during the whole loading.







Why chose Henan Teng Fei?

1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.

2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project

3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.



How long is the warranty?

The warranty period is 12 months.



What services does it provide?

1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.

2.on-purchase service: our company can solve professional technical problems and other related issues for you.

3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.



What is the Teng Fei’s basic philosophy?

Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
