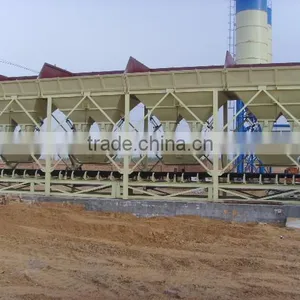

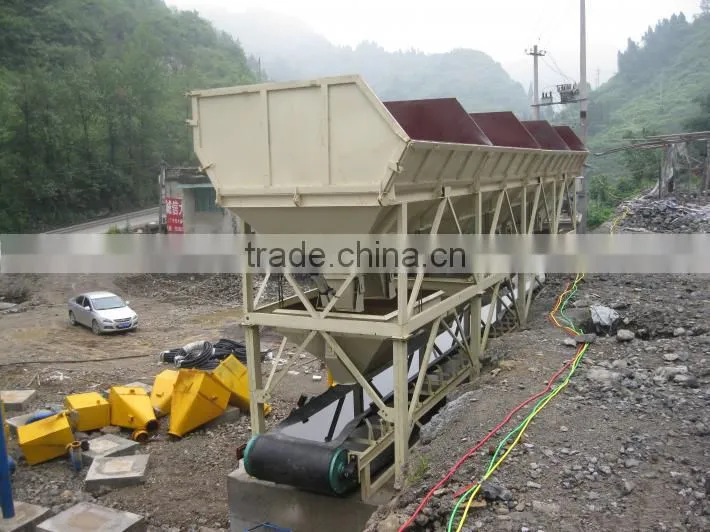

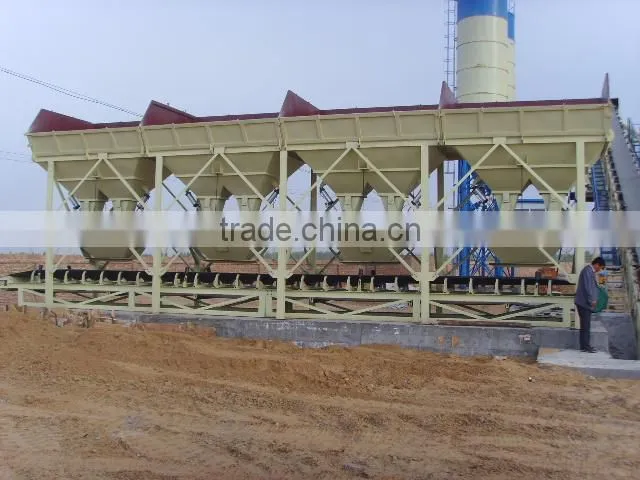

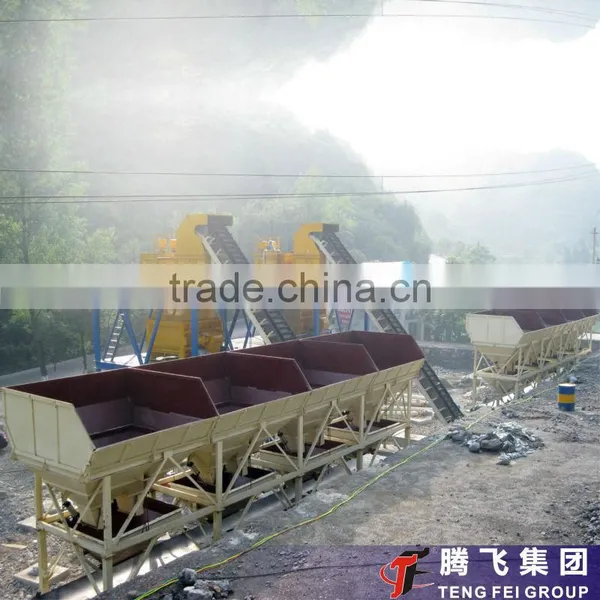

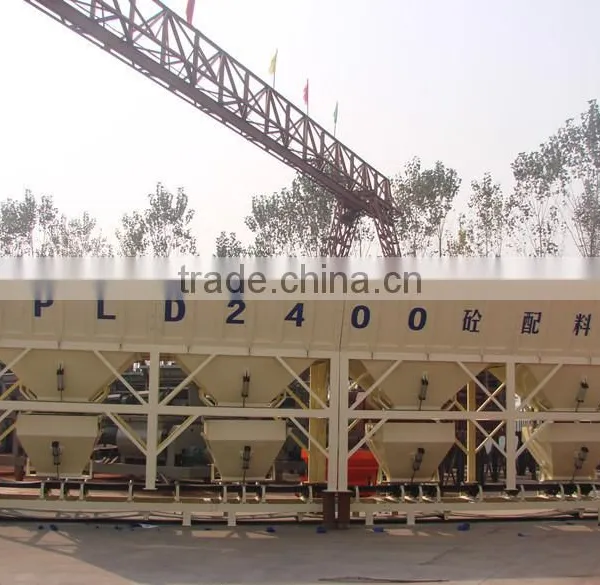

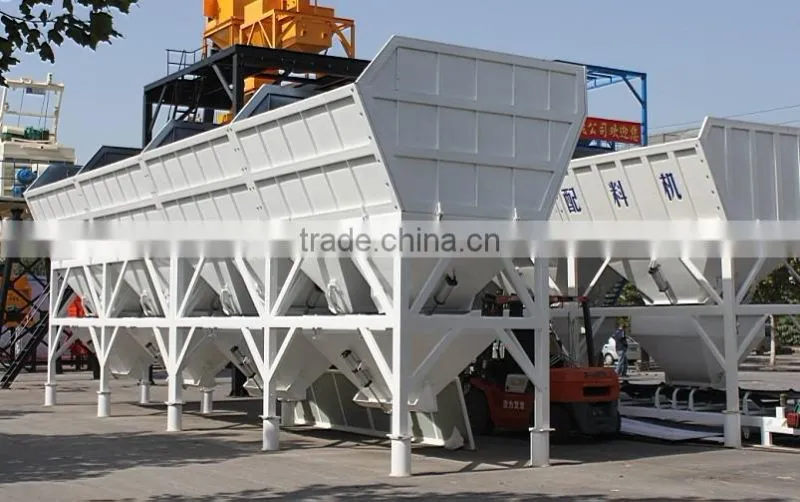

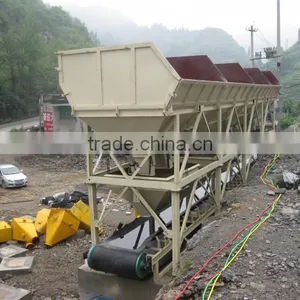

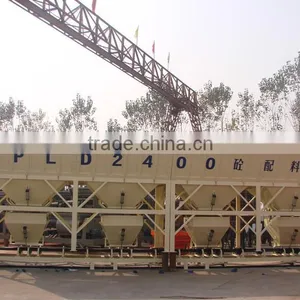

PLD2400 concrete batching machine -Top selling

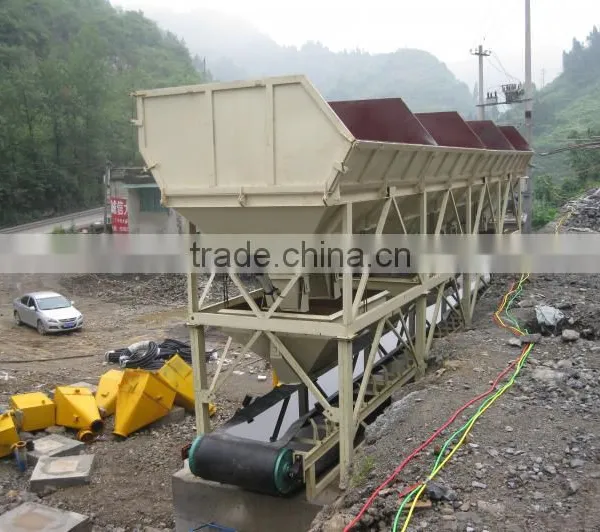

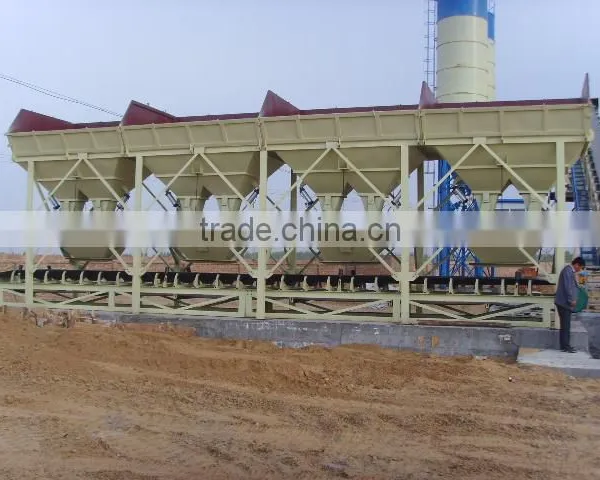

1. Introduction of PLD2400 concrete batching machine
PLD series Concrete Batching Machine is a kind of equipment with automatically batching material on the front desk and using mixer together. It can automatically finish the batching procedures of 3~6 kinds of materials (second grade concrete) such as sand, stone, cement, according to user’s design.
2. Application of PLD2400 concrete batching machine
This series of products adopt electronic weighing, computer control, digital display, and wired remote control. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, easy operation, reasonable design, compact structure and long service life. Widely used in all kinds of large and medium-sized construction project and concrete mixing station.

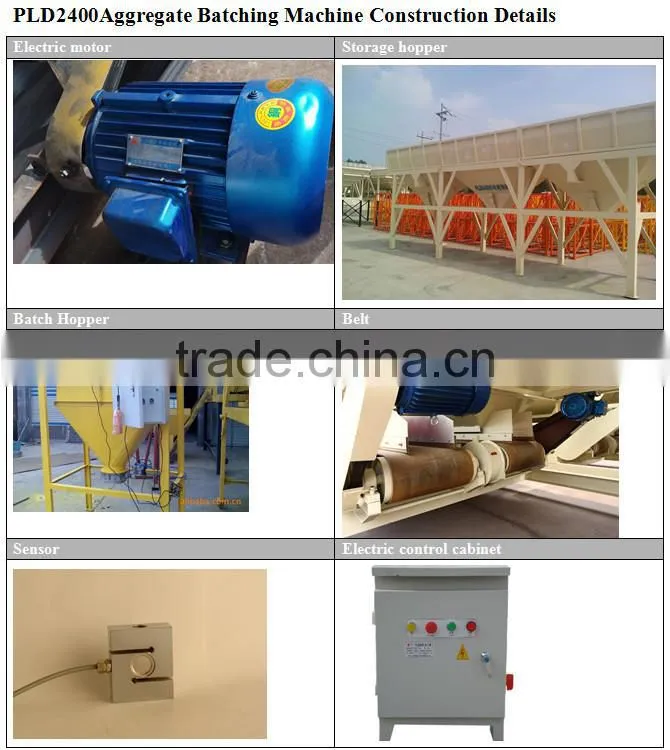

3. Parameters of PLD2400 concrete batching machine
Item |
PLD2400 |
|
Weighing Method |
Independent |
|
Discharging Control |
Pneumatic Control |
|
Batching accurancy |
±2% |
|
Max batching capacity (kg) |
3000 |
|
Variety of material |
2-5 |
|
Feeding height (mm) |
2900 |
|
Speed of feeding belt (m/s) |
1.25 |
|
Storage Hopper |
Unit Capacity (m3) |
15 |
QTY |
4 |
|
Weighing Hopper |
Unit Capacity (m3) |
2.4 |
QTY |
4 |
|
Sensor |
Capacity (kg) |
1000 |
QTY |
12 |
|
Belt Conveyor |
Belt Width (mm) |
650 |
QTY |
1 |
|
Vibrator |
Unit Power (kw) |
0.4 |
QTY |
3 |
|
Motor |
Unit Power (kw) |
7.5 |
QTY |
1 |
|
Weight (t) |
8.5 |
|
Outline dimensions (mm) |
10000*2200*4000 |
|
Remark |
Speed of feeding belt is adjustable(1.2-1.6m/s). |
|
