Specifications
1.good price,high quality
2.normal frequency 30m/min, frequency 0-63m/min
3.ISO and CE certified,12 months warranty
Main characteristics of FOCUS rack and pinion lift:
1. Construction hoist, is also called construction lifter, construction elevator, construction lift, building lifter, building hoist, building lift, building elevator, material hoist, builder lifter, rack and pinion lift, rack and pinion hoist, rack and pinion elevator, rack and pinion lifter, etc.
2.FOCUS MACHINERY construction lift (construction elevator/construction hoist) adopts rack and pinion transmission based on domestic and foreign advanced technology, through many years of innovation and development.
3.. Mast section can be divided into three specifications as follows: 650x650x1508, 800x800x1508 and 960x650x1508.
4.. Driving mode: SCD dual drive, counter weight, no counter weight of SC triple drive, built-in, upper-setting and frequency control etc.
5. FOCUS construction hoists (construction lifters/construction elevators) are applicable to bridges, chimneys, buildings and many other projects.
rack and pinion lift/ rack and pinion hoist/ rack and pinion elevator:
Elevator classification |
Model |
Rated load capacity(kg) |
Lifting speed (m/min) |
Motor power (kw) |
Rated fixing load capacity (kg) |
|
Normal frequency construction hoist |
single cage |
SC100 |
1000 |
33 |
2x11 |
1000 |
SC200 |
2000 |
33 |
3x11 |
2000 |
||
double cage |
SC100/100 |
SC100/100 |
33 |
(2×2)×11 |
2×1000 |
|
SC200/200 |
2×2000 |
33 |
(2×3)×11 |
2×2000 |
||
Frequency construction hoist |
single cage |
SC100 |
1000 |
0-63 |
3×11 |
1000 |
SC200 |
2000 |
0-63 |
3×15 |
2000 |
||
double cage |
SC100/100 |
2×1000 |
0-63 |
(2×3)×11 |
2×1000 |
|
SC200/200 |
2×2000 |
0-63 |
(2×3)×15 |
2×2000 |
||

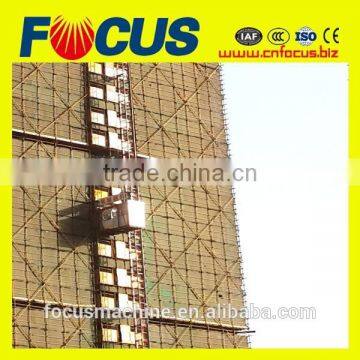

Our rack and pinion lifts( rack and pinion hoists/ rack and pinion elevators) have been purchased, installed and operated all over the world:
