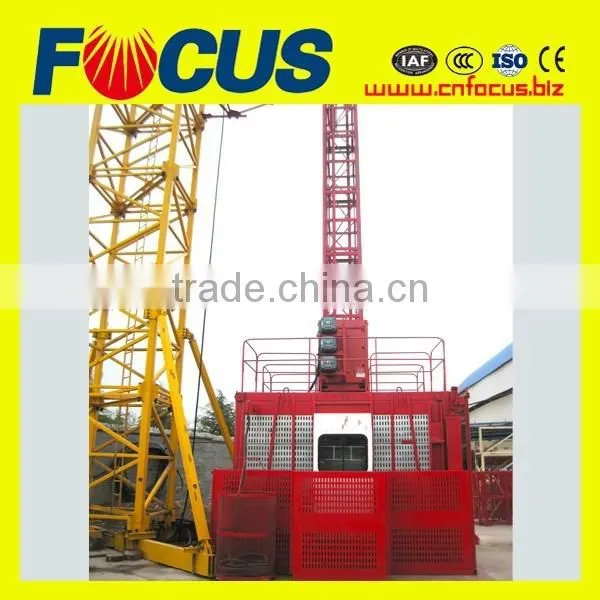

Help CenterSC100/SC200 Single Cage Construction Elevator/ Lifter/ Hoist/ Lift With Good Price
Related Products
-
SC Series SC100 or SC100/100 Construction Lift/ Lifter/ Hoist/ Lifter/ Elevator/ With Good PriceUS$ 35,000 - 35,000MOQ: 1 Set -
SC 200 Construction Hoist /passenger Material Hoist in AlgeriaUS$ 30,000 - 50,000MOQ: 1 Set
-
China SC200/200 Gear Rack Lift With 2ton Cage Machine Construction in NegeriaNegotiableMOQ: 1 Set
-
SC200/200 Gear Rack Lift With 2ton Cage Concrete Machine for SaleNegotiableMOQ: 1 Set
-
Good Quality SC 200 Type Construction Hoist /building HoistUS$ 30,000 - 50,000MOQ: 1 Set
Specifications
construction hoist
1.good price,high quality
2.0-63m/min adjustable spped
3.ISO and CE certified,12 months warranty
Main characteristics of FOCUS construction elevator|construction lifter|construction hoist :
1. Construction hoist, is also called construction lifter, construction elevator, construction lift, building lifter, building hoist, building lift, building elevator, material hoist, builder lifter etc.
2.FOCUS MACHINERY construction hoist (construction elevator/construction lifter) adopts rack and pinion transmission based on domestic and foreign advanced technology, through many years of innovation and development.

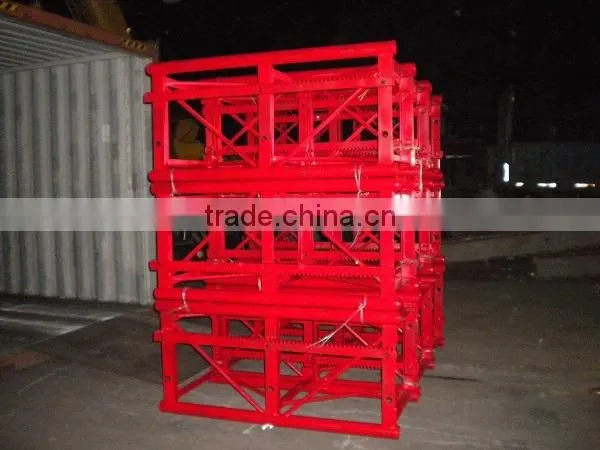

3.. Mast section can be divided into three specifications as follows: 650x650x1508, 800x800x1508 and 960x650x1508.
4.. Driving mode: SCD dual drive, counter weight, no counter weight of SC triple drive, built-in, upper-setting and frequency control etc.

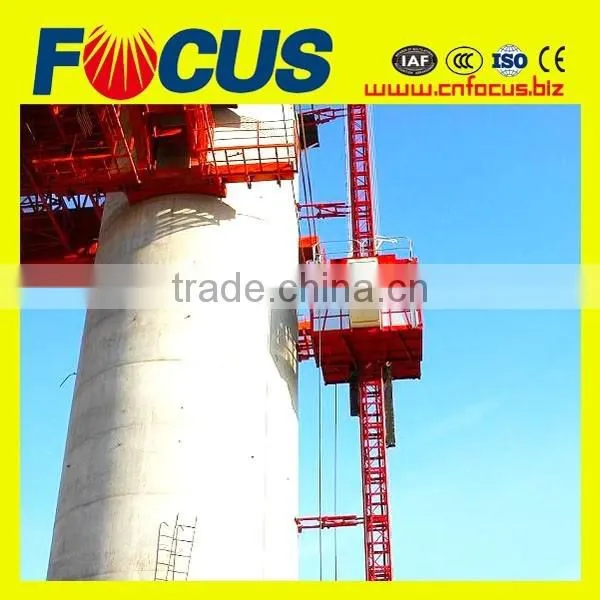

5. FOCUS construction hoists (construction lifters/construction elevators) are applicable to bridges, chimneys, buildings and many other projects.
Construction Lifter/Construction Hoist/ Construction Elevator:
Type model |
SC100/100 or SC100 |
|
Rated loading capacity |
KG |
1000x2 or 1000 |
Freestand height |
M |
50 |
Hoisting speed |
M/MIN |
33 |
The max. hoisting height |
M |
200 |
Rated passenger capacity |
PERSON |
10x2 or 10 |
Dimension inside the cage |
M |
3x1.3x2.2 |
Dimension of mast section |
MM |
650x650x1508 or 800x800x1508 or 900x650x1508 |
Safety device type |
|
SAJ40--1.2 |
Working pressure |
V |
380v, 50HZ(can be changeable according to the customer's requirements) |
Total power of motor |
KW |
(2x2)x11 or 2x11 |
Type model |
SC200/200 or SC200 |
|
Rated loading capacity |
KG |
2000x2 or 2000x1 |
Freestanding height |
M |
50 |
Hoisting speed |
M/MIN |
33 |
The max.hoisting height |
M |
200 |
Rated passenger capacity |
PERSON |
24x2 or 24 |
Dimension inside the cage |
M |
3x1.3x2.2 |
Dimension of mast section |
MM |
650x650x1508 or 800x800x1508 or 900x650x1508 |
Safety device type |
|
SAJ40--1.2 |
Working pressure |
V |
380v,50HZ( can be changeable according to the customer's requirements) |
Total power of motor |
KW |
(2x3)x11 or 3x11 |

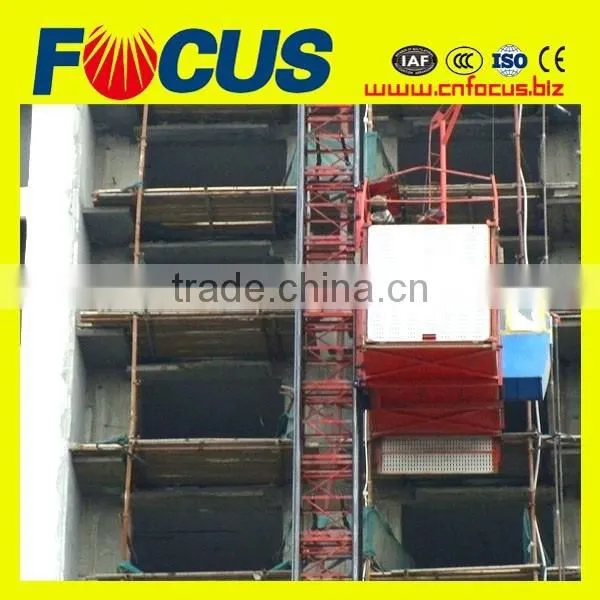

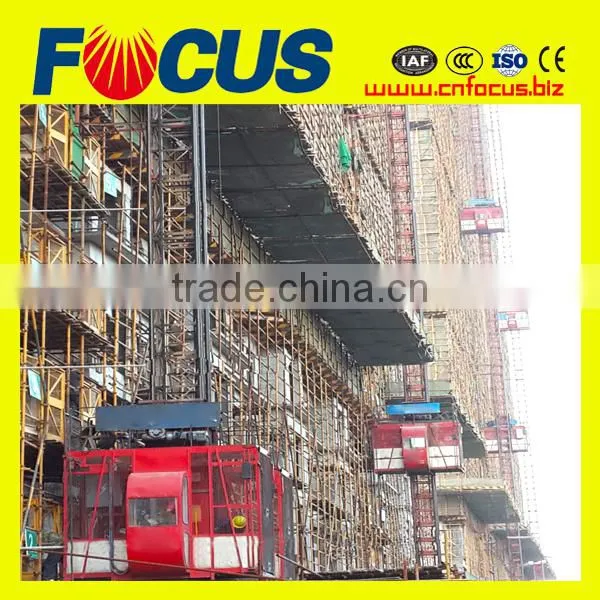

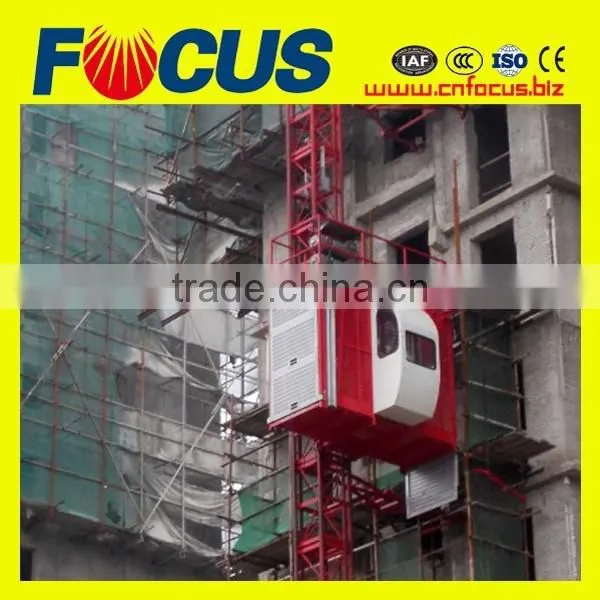

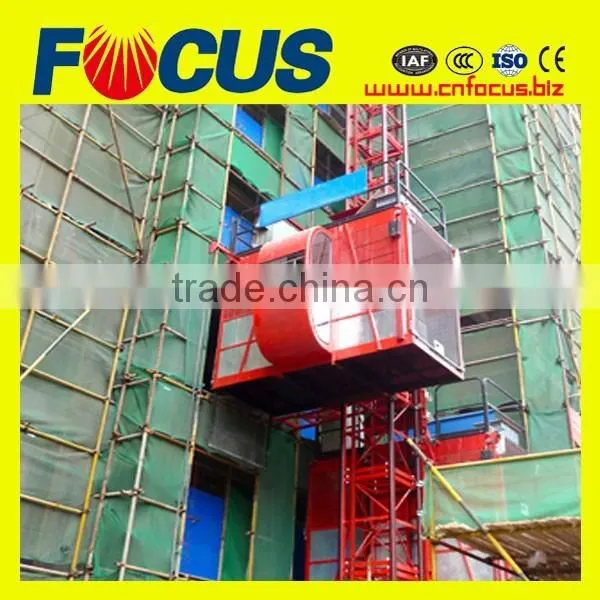

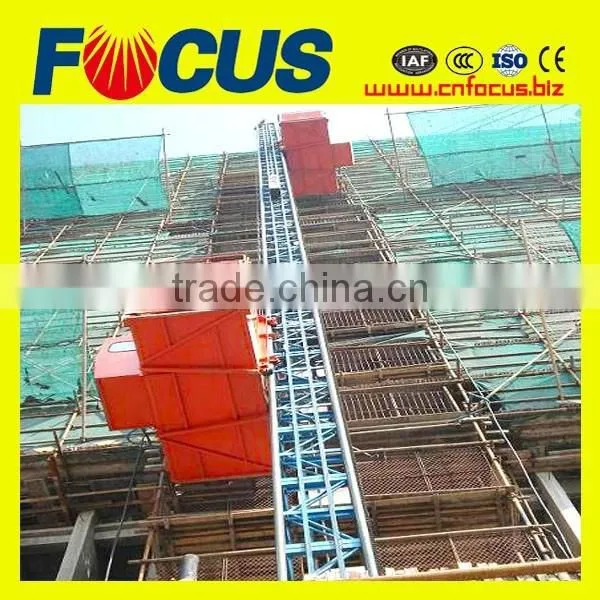

Our construction hoists(construction lifters/construction elevators) have been purchased, installed and operated all over the world:
Established in 1982, we are professional manufacturer of high quality ready mixed concrete batching plant, asphalt mixing plant, mobile concrete mixing plant, concrete mixer truck, concrete pump, concrete boom pump, concrete pump truck, tower crane, construction hoist, cement screw conveyor, cement silo, cement conveyor, cement bag opener, etc.
Our products have been distributed in various places in China and over 50 countries and regions in the world. With the increasing presence in domestic and overseas markets, we constantly focus our strength on R&D to ensure our leadership in the business.
Covering an area of 65,000sqm with 900 workers, 40 engineers, 102 expertise staff members and 80 management personnel, we provide our clients around the world with reliable, well-engineered, state-of-the-art process solutions.
Our products have passed ISO9001:2000 Quality Management System Certification and many other tests by clients, governments and third party institutes. With all those honors, our passion on new technology and innovation will never be ceased. Our endeavor for continuous 5-star service will never be halted.
We stand for new product ideas and courageous vision of the future. We stand for our never-stopping dedication and devotion to your construction equipment solutions. We focus on your project needs.
