High Quality and Good Service 37m 39m
Truck Mounted Concrete Boom Pump
Be suited for different project application especially the small site and bridge projects. Upper parts can be designed according to customers' required chassis. And we could supply the chassis made in China.
Equipped with STIEBEL(from Germany) PTO box to connect engine with hydraulic oil pump, making the pump group run more stable and efficient.
∑ Boom System:The boom system is designed by Multi physics analysis and testing. The steel is made by imported HSLA (High strength low alloy steel). All the welding are 100% inspected to ensure the structure rational and high reliability.
Adopt "R" type folding boom sections easy for special project. And the boom speed is adjusted
sleeplessly, with compensated pressure, proportion system of sensitive to loading, as assure the flexible working of the boom.Maximum shock-absorbing controlled by multiple valve controller.
∑ Pumping System:Tungsten steel glass plate and cutting ring guarantee the long using life.Automatic retraction of the concrete piston provides a more convenient and easier maintenance for the pumping system.
Automatic accelerator tracking system adjust the accelerator according to the actual pumping condition to save more diesel oil.
∑ Hydraulic & Electrical System:Adopt double pumps with double circuits system and world famous hydraulic components.Variable displacement axial piston pump make the swing cylinder more stable and powerful.Operated by manual/panel/radio remote controller(NBB)
Why would our clients choose Focus Boom Concrete Pump?
- large pumping capacity with high efficiency;
- light-weighed and optimized design enables FOCUS boom concrete pump truck small occupation of ground area;
- low oil consumption, economic engineered;
- full hydraulic system guarantee stable pumping performance;
Parameters of Focus 37m,39m Boom Concrete Pump:
| Parameter/Unit | HDT5281THB-37/4 | HDT5291THB-39/4 | |
| Output in theory | m3/h | 125 | 125 |
| Bucket volume | L | 700 | 700 |
| Model of dirstribution valve | S Valve | S Valve | |
| Max. operation radius | m | 32.6 | 34.7 |
| Max. operation height | m | 36.6 | 38.7 |
| Max. operation depth | m | 25.5 | 27 |
| Open height of boom | mm | 8450 | 8830 |
| Diameter of delivery pipe | mm | 125 | 125 |
| Length of hose pipe | m | 4 | 4 |
| Rotary range of boom | 370° | 365° | |
| Quantity of boom | 4 | 4 | |
| Max. speed | km/h | 85 | 90 |
| Chassis model | ISUZU CYZ51Q | HOWO ZZ5307N4647C | |
|
Wheel base between the first & the second axle |
mm | 4595 | 4600 |
| Rear tread | mm | 1850 | 1830 |
| Max. engine output power | kw | 265(1800r/min) | 247(2200r/min) |
| Fuel consumption | L/100km | 36.6 | 34 |
| Out dimension(L*W*H) | mm | 12000*2490*3800 | 12500*2490*3950 |
| Total weight | kg | 28000 | 29500 |

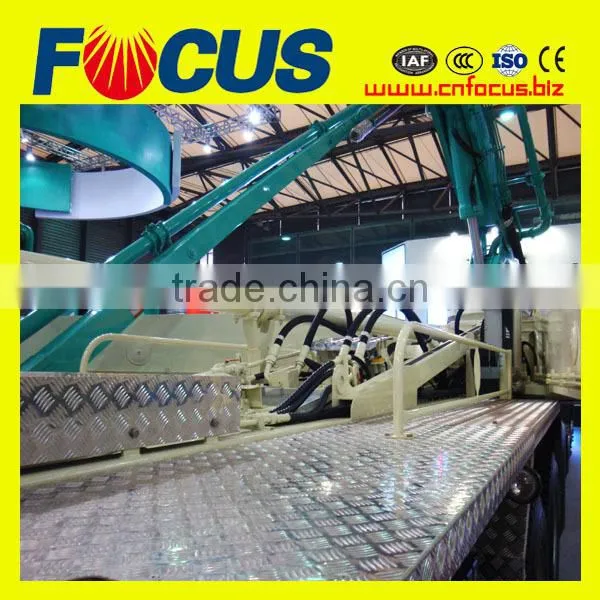

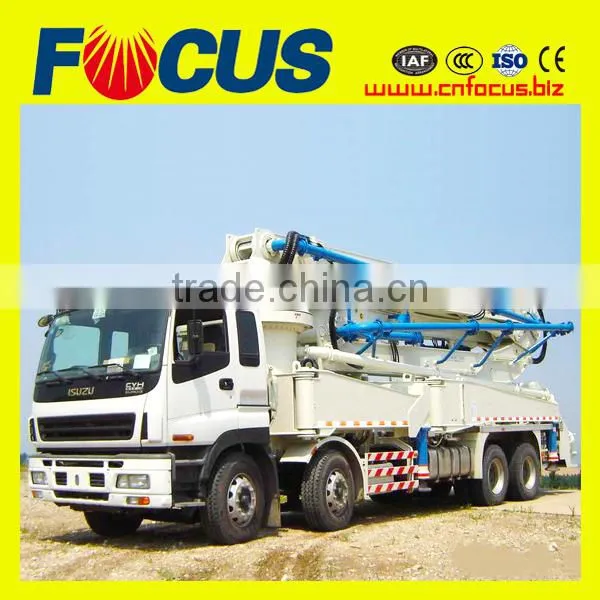

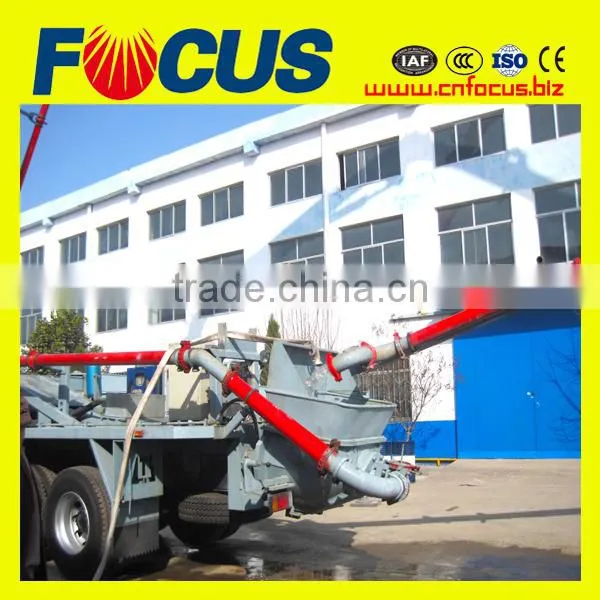

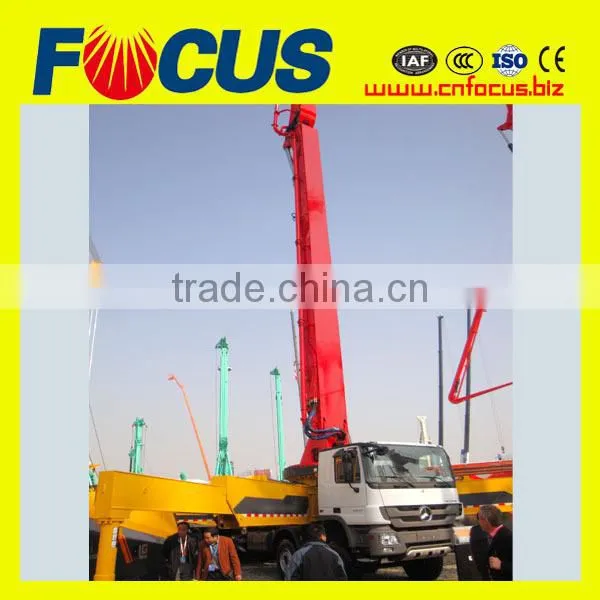

Product details of Focus Boom Concrete Pump:
Thanks for visiting, by the time you are paying attention to us, our boom concrete pumps are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visiting us @
