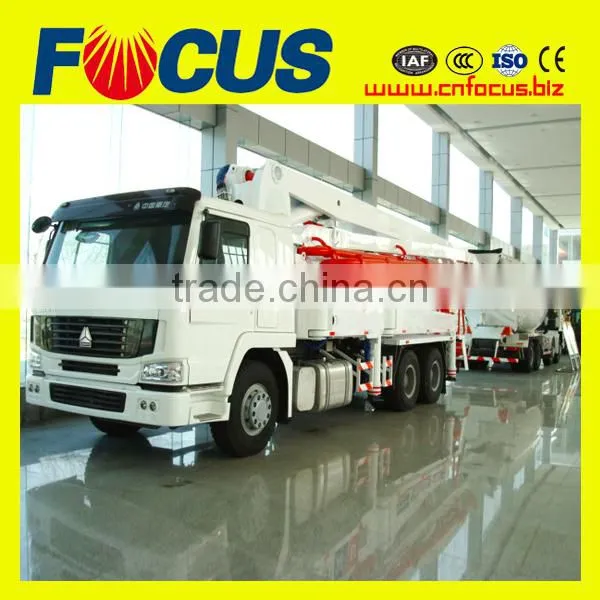

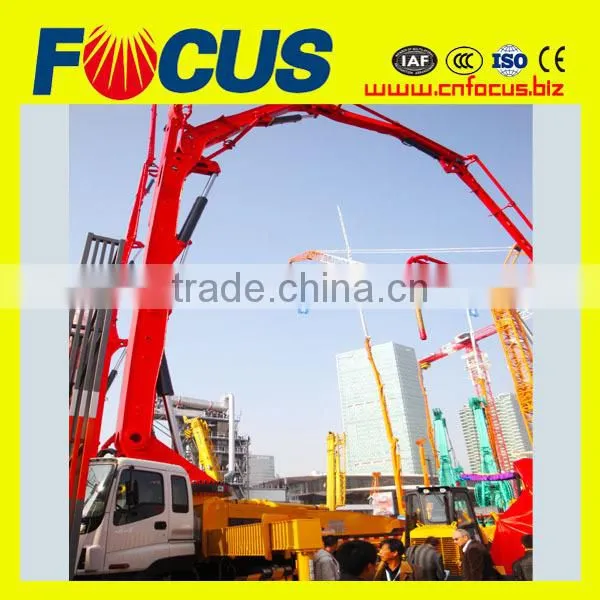

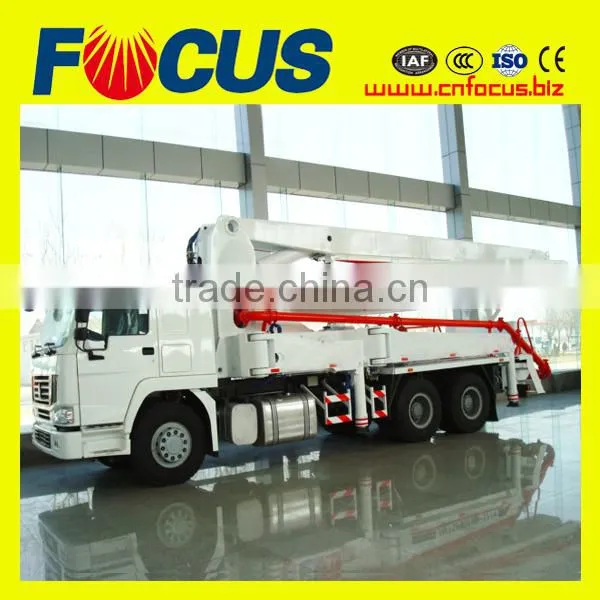

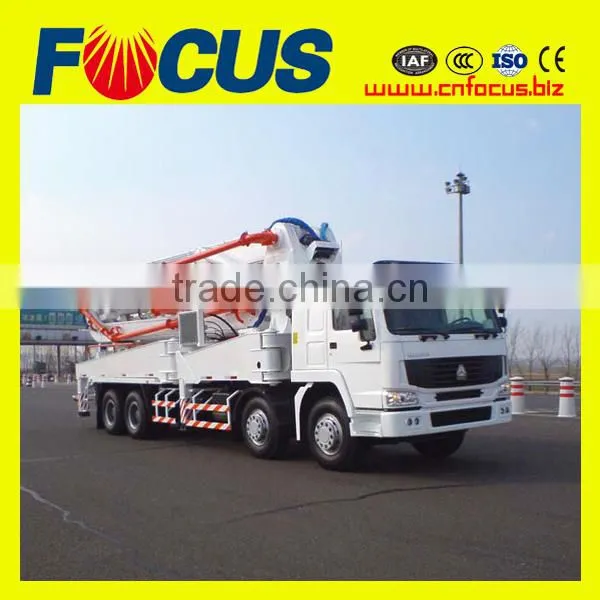

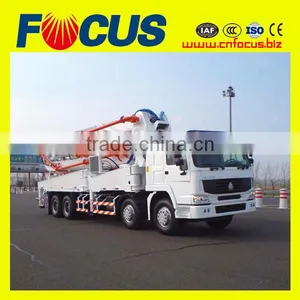

Stable Perpormance 37m 39m Work Range Truck-Mounted Concrete Pump
Concrete Boom Pump
Bringing in advanced experience both at home and abroad, FOCUS boom concrete pump is developed by applying modern advanced computer simulation techniques and systematically analyzing the influence condition of the boom fatigue life because of the change of various parameters such as stress, displacement, natural frequency etc. The series products won many patents on boom structures optimization and hydraulic systems design.
Advantages of Focus Boom Concrete Pump:
1.good pumping performance;
2.ISUZU Chassis,low oil consumption,great mobility;
3.ISO certified.
Why would our clients choose Focus Boom Concrete Pump?
- large pumping capacity with high efficiency;
- light-weighed and optimized design enables FOCUS boom concrete pump truck small occupation of ground area;
- low oil consumption, economic engineered;
- full hydraulic system guarantee stable pumping performance;
Parameters of Focus 37m,39m Boom Concrete Pump:
| Parameter/Unit | HDT5281THB-37/4 | HDT5291THB-39/4 | |
| Output in theory | m3/h | 125 | 125 |
| Bucket volume | L | 700 | 700 |
| Model of dirstribution valve | S Valve | S Valve | |
| Max. operation radius | m | 32.6 | 34.7 |
| Max. operation height | m | 36.6 | 38.7 |
| Max. operation depth | m | 25.5 | 27 |
| Open height of boom | mm | 8450 | 8830 |
| Diameter of delivery pipe | mm | 125 | 125 |
| Length of hose pipe | m | 4 | 4 |
| Rotary range of boom | 370° | 365° | |
| Quantity of boom | 4 | 4 | |
| Max. speed | km/h | 85 | 90 |
| Chassis model | ISUZU CYZ51Q | HOWO ZZ5307N4647C | |
|
Wheel base between the first & the second axle |
mm | 4595 | 4600 |
| Rear tread | mm | 1850 | 1830 |
| Max. engine output power | kw | 265(1800r/min) | 247(2200r/min) |
| Fuel consumption | L/100km | 36.6 | 34 |
| Out dimension(L*W*H) | mm | 12000*2490*3800 | 12500*2490*3950 |
| Total weight | kg | 28000 | 29500 |

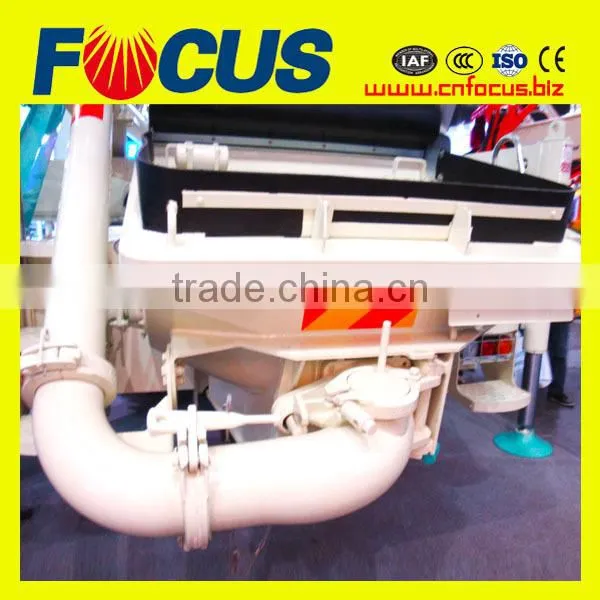

Product details of Focus Boom Concrete Pump:
Thanks for visiting, by the time you are paying attention to us, our boom concrete pumps are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visiting us @
