Durable Long Life Electric Concrete Pole
Steel Mould with High Acuracy

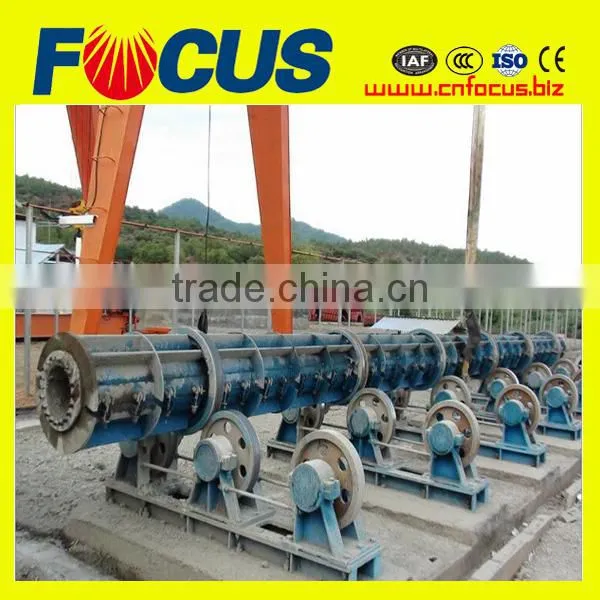

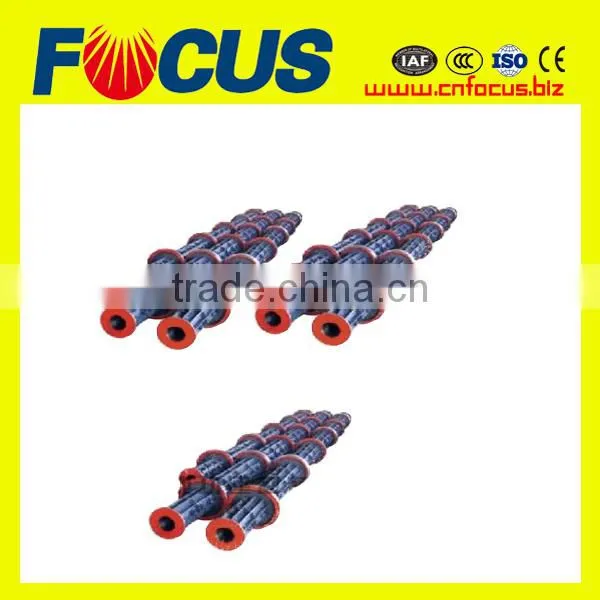

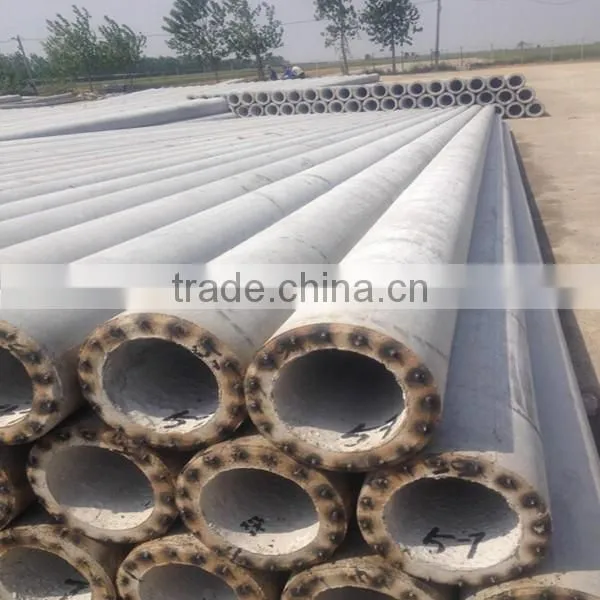

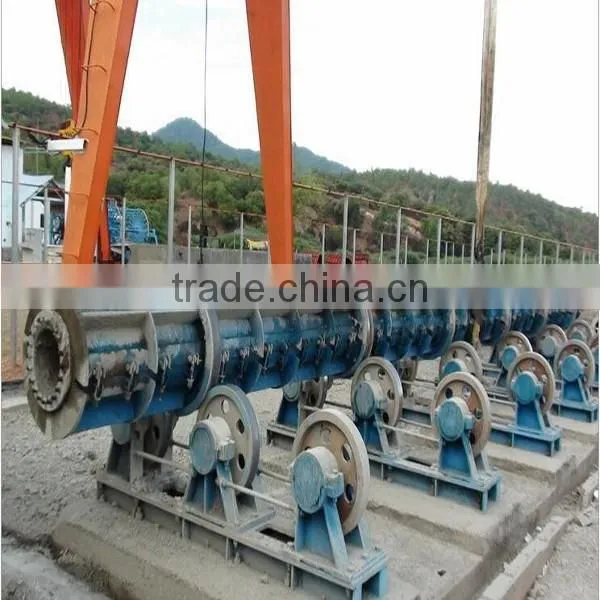

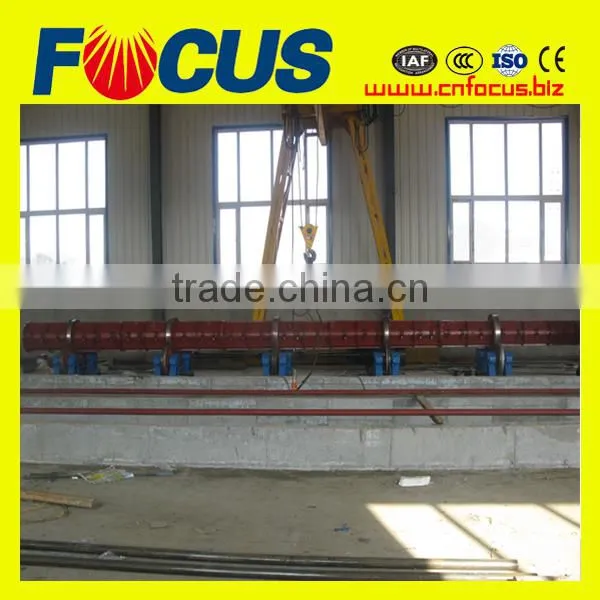

Concrete pole Steel Mould is a kind of mould equipment, which is used for making a variety of different diameter and length of reinforced concrete poles and other cement products.

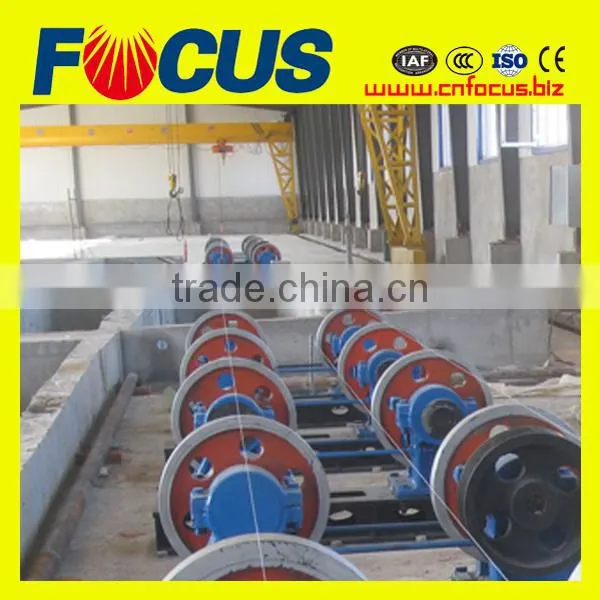

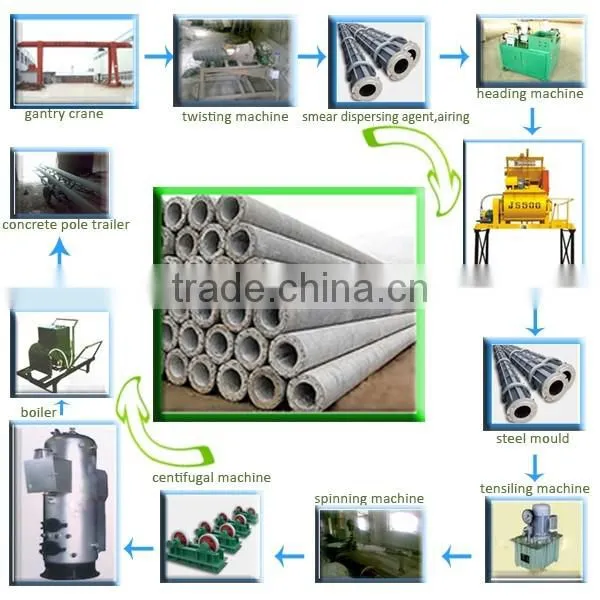

Pre-stressed spun concrete pole plant is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.

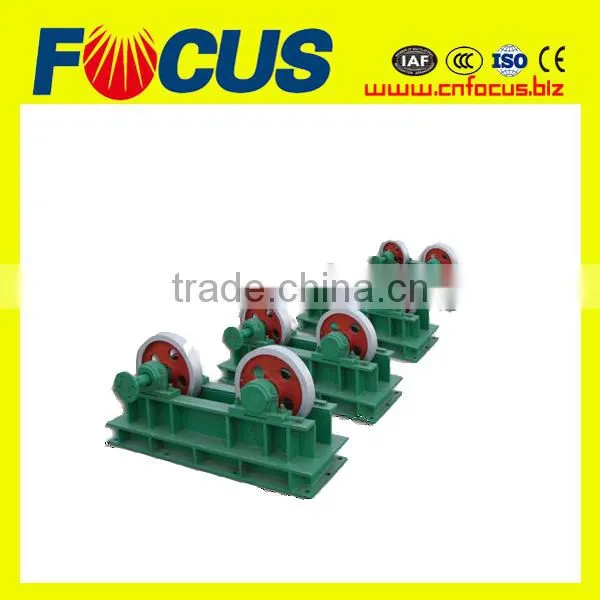

The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.
Parameters of FOCUS Concrete pole Steel Mould:
| Model | Normal Inner Diameter (mm) | Normal External Diameter (mm) | Flange Distance Beween Wheel (mm) | Wheel Tread Diameter (mm) | Normal Length (mm) |
| GMZ103 | 100 | 150 | 2370 | 600 | 3080 |
| GMZ153 | 150 | 200 | 2370 | 670 | 3080 |
| GMZ203 | 200 | 260 | 2370 | 710 | 3080 |
| GMZ253 | 250 | 320 | 2370 | 970 | 3080 |
| GMZ304 | 300 | 380 | 3120 | 970 | 4080 |
| GMZ354 | 350 | 440 | 3120 | 970 | 4080 |
| GMZ404 | 400 | 490 | 3120 | 970 | 4107 |
| GMZ504 | 500 | 610 | 3120 | 1220 | 4107 |
| GMZ604 | 600 | 720 | 3120 | 1220 | 4117 |
| GMZ804 | 800 | 960 | 3120 | 1640 | 4140 |
What are the main features of FOCUS Concrete pole Steel Mould?
1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).
2. Crack resistance can increase about 3~5 times.
3. Rigidity increases 1~3 times.
4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
5. Good durability, can delay the existence and expansion of cracks.
6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.
Product details of FOCUS Concrete pole Steel Mould:
Thanks for visiting, by the time you are paying attention to us, our Concrete pole Steel Moulds are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visiting us @
