ISO Certified Transit Mixer Transit Mixer Truck Concrete Transit Mixer

ISO Certified Transit Mixer Transit Mixer Truck Concrete Transit Mixer thumbnail-1
ISO Certified Transit Mixer Transit Mixer Truck Concrete Transit Mixer thumbnail-2

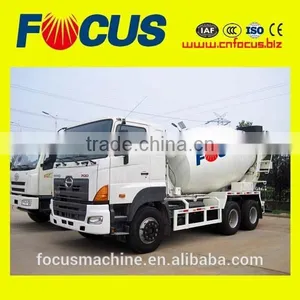

ISO Certified Transit Mixer Transit Mixer Truck Concrete Transit Mixer thumbnail-3
ISO Certified Transit Mixer Transit Mixer Truck Concrete Transit Mixer photo-1

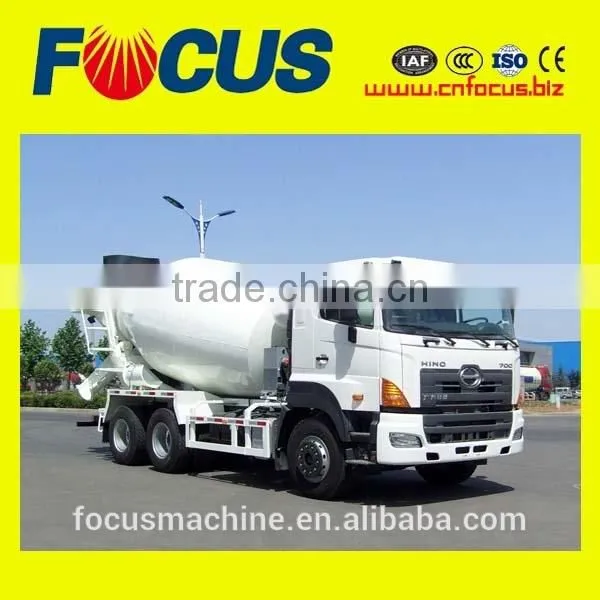

ISO Certified Transit Mixer Transit Mixer Truck Concrete Transit Mixer photo-2

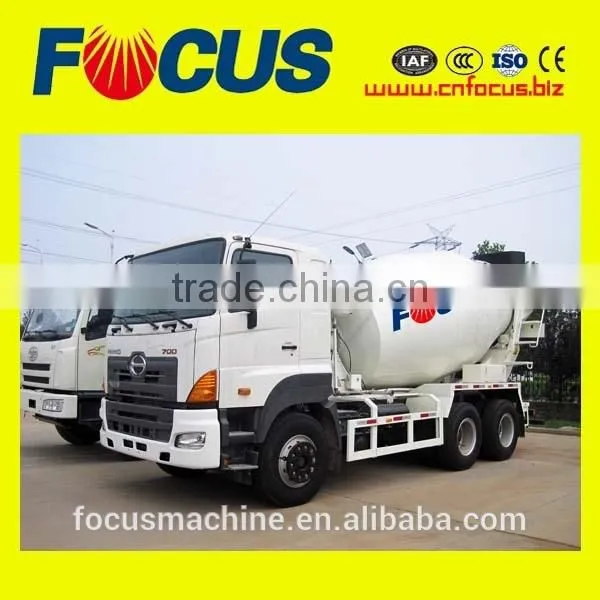

ISO Certified Transit Mixer Transit Mixer Truck Concrete Transit Mixer photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
FOCUS
Contact Supplier Request Quote Chat Now
Zhengzhou Focus Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name FOCUS
Model Number 10m3
Weight 25000kg
Dimension(L*W*H) 9140*2500*3845
Power(W) 250kw
Certification ISO9001:2008
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

  Transit mixer truck

1.FOCUS4x4
2.Imported hydraulic system and reducer
3 .  8m3, 9m3,10m3, 12m3 ,14m3 capacity



Characteristics of 8m3, 9m3,10m3, 12m3 ,14m3   Transit mixer truck

 1.FOCUS 8m3, 9m3,10m3, 12m3 ,14m3 concrete  Transit mixer truck



2.international famous brand hydraulic drive fits are adopted in our   Transit mixer truck

3.integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;

4.multi-points control system enables Transit mixer truck   operation to be easier, safer and more comfortable;

5.air pressure water supply system with large capacity water tank.



What are the main features of FOCUS  Transit mixer truck  ?

1.Oil tank and radiator are imported top brand combination with temperature control switch and vacuum meter while oil change and maintenance are easily realized for  Transit mixer truck

2.Pump, motor and reducer in FOCUS Transit mixer truck   all original imported AMERICA static pressure driving system with big driving torque and high efficiency.

3.Imported hose and connector are separately from GERMANY EMB and ITALY MANULI.

4.Hose buckling device is totally from GERMANY HYDAC.

5.Stirring vat auto-welding improves  concrete mixer production efficiency and makes welding quality finer.

6.Tri-axial design and three-section double logarithm helix surface design can ensure concrete speedy feeding and discharge and low surplus rate in our    Transit mixer truck

7.Fault indicator for mixing concrete  can check all welding seams of stirring vat to ensure good welding quality after it’s being welded by auto-welding machine.

8.Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.



concrete truck mixer/concrete transit mixer/cement truck mixer/concrete mixing truck technical parameters:
Model 8m³ 9m³ 10m³ 12m³ 14³
Tuck Chassis HINO STEYR HINO HOWO HOWO
Length(mm) 8550 9200 9800 10150 10150
Width(mm) 2490 2490 2495 2496 2496
Height(mm) 3800 3800 3830 3900 3960
Weight(kg) 25000 25000 31000 31000 31000
Load weight(kg) 12600 13000 15650 16370 16700
Max.speed(kg/h) 75 72 90 90 50
Oil consumption(L/100km) 32 34 38 38 38
Engine Engine model WD615.69
Engine type 6-cylinder direct injection diesel engine with water cooling
Engine power(KW) 247(2200r/min) 247(2000r/min)
Max.torque(N.M) 1250(1600r/min)
Working Drum volume(m³) 12.8 14.7 17.05 19.65 20.1
device Mixing volume(m³) 8 9 10 12 14
  Drum rotation(r/min) 0-14
  Discharge speed(m³/min) ≥3
  Slump(m) 100-230
  Surplus rate(%) <1
  Water tank vol.(L) 400







ISO Certified Transit mixer Transit mixer truck Concrete transit mixerISO Certified Transit mixer Transit mixer truck Concrete transit mixerISO Certified Transit mixer Transit mixer truck Concrete transit mixer
