Specifications
Herbs Powder Machine1.Confirms to food pharmaceutical standards.
2.Specially for grinding fiber kind herbs.
3.SUS304
Licorice Root and Herbs Powder Machine
Why Choose Bidragon?
1.Powerful R&D capability, ensure meet global market requirements with updated advanced technology;
2.Perfect management to ensure the common goal serving sincerly customer;
3.Strict quality inspection, "Quality is above everything" always keep in Bidragon people’s mind;
4.Full business experience abroad, have established long-term relationships with our regular clients,priority in reliability;
5.Economical project solution, timely response, delivery without delay and lifelong aftersales service.
Application
This kind herbs powder machine unit is suitable for the pharmaceutical, food, chemical and other industries. With air-cooled, non –screen performance, etc. It is not influenced by viscosity texture and fiber materials, and no restrictions on any material, can play a better grinding effect . This kind of machine especially suitable for grinding herbs with a fiber or with a certain oily materials.
Working Principe
- This kind herbs powder machine unit comprise of hopper , grading wheel , grinding blades, gear ring , grinding motor , discharge outlet , fan, collector bins, dust catcher and other components .
- Material from the hopper into the crushing chamber, through the high-speed rotating blade grinding, adjustment and classification round plate distance to reach the required fineness of the material, high-speed rotation of the fan blade send the achieved requirements material from the crushing chamber to collecting bin
the materials that does not meet the requirements continue grinding in the grinding chamber ,dust generated collected by the dust catcher. - Herbal grinder unit by "GMP" standard design , simple structure, convenient operation and cleaning , low noise , high output, all with high-quality machine made of stainless steel , no dust during grinding .
Technique Parameters
Model |
BHG-200 |
BHG-300 |
BHG-400 |
capacity(kg/h) |
50-200 |
60-300 |
100-500 |
Inlet size(mm) |
Less than 10mm |
Less than 12mm |
Less than 15mm |
|
|
||
Final powder(mm) |
60-320 mesh |
60-320 mesh |
60-320 mesh |
Grinding Power(kw) |
5.5 |
7.5 |
11 |
Dust catcher power(kw) |
1.1 |
1.5 |
2.2 |
Dimensions(mm)(L*W*H) |
1000×800×1600 |
1200*850*1780 |
1500*900*1950 |
Weight(kg) |
400 |
700 |
900 |
Licorice Pictures

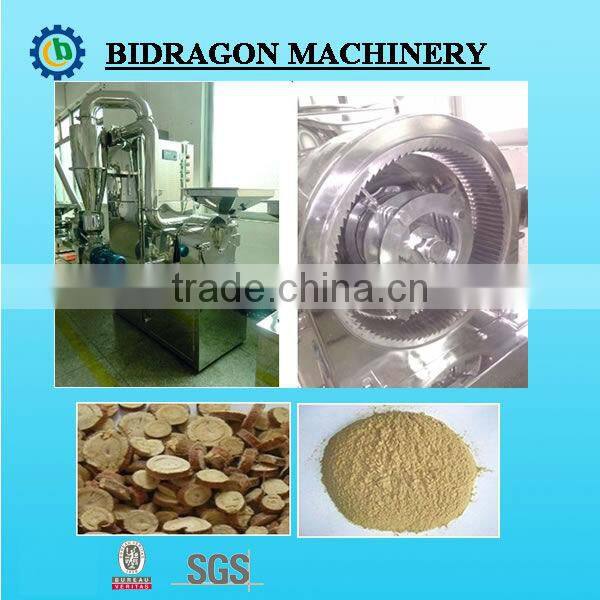

Licorice and herbs power making machine

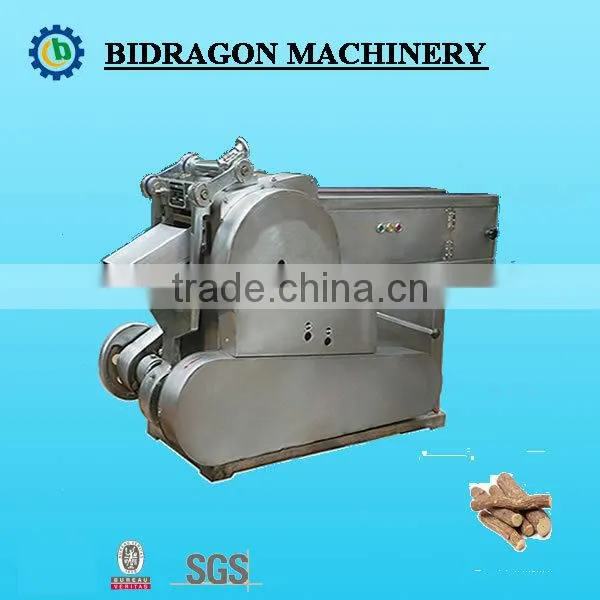

Licorice Root Cuting Machine
Licorice Root cutting machine for export
