Automatic Powder Packing Machine
Specifications
Powder Packing Machine1.food contact stainless steel
2.can match loading and unloading system
3.stable and high quality

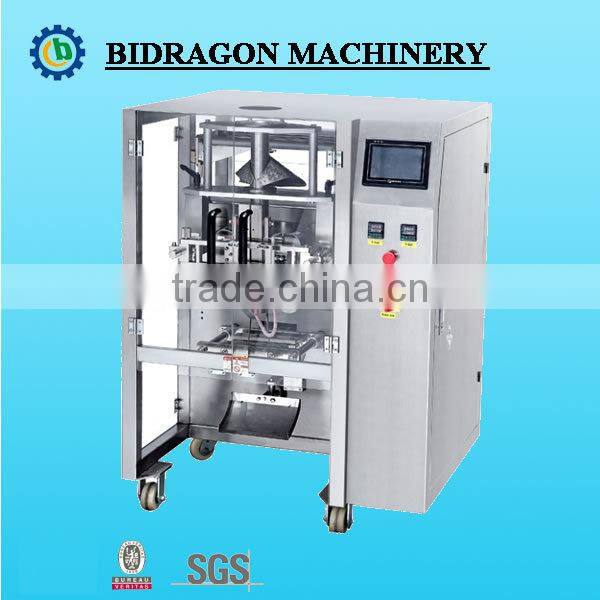

1. Automatic Bagging Machine:
|
l Features l Low cost high gain, high speed and efficiency. l Famous brand PLC control system, large touch screen, convenient to operate l Film drawing down system controlled by servo motor minimize the loss with complete automatic warn protection function l It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment. |
Specification:
v Bag size: Length: 80-300mm; Width: 80-200mm
v The maximum width of packing film:420 mm
v Thickness of film: 0.04-0.09mm
v Bag making mode: Pillow-type bag
v Air consumption:0.8Mps 0.5m3/min
v Power/voltage: 1N+PE/50HZ/AC220V/2.2KW
v Dimension (LxWXH): 1320×920×1392mm
Weight: 450kg
Printing:
v Printing Area: Single line 4×35,15 characters
Double lines 10×35,30 characters
Speed: 120 times/min. max

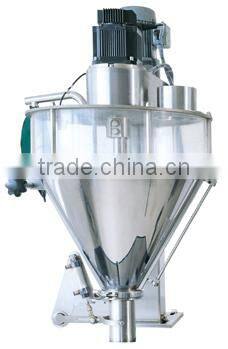

2. Spiral dosing system:
Metering system |
Auger dosing system |
Packaging weight |
100-1000g (alter auger) |
Packaging precision |
accuracy≤0.5%-1% |
Packaging speed |
10-50 bags/min |
voltage |
Three phase 380v ( AC 220v) 50-60HZ |
Machine power |
1.6kw |
Machine weight |
80kg |
volume |
70L |
