Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Stick Bag Packing Machine for Powder
US$ 3,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Medical, Chemical, Other, Food, Medical, Chemical, powder and granules materials
Packaging Type:
Stand-up Pouch, Bags, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Medical, Chemical, Other, Food, Medical, Chemical, powder and granules materials
Packaging Type Stand-up Pouch, Bags, Pouch
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V (adjustable)
Power 1.5Kw
Place of Origin Henan, China
Brand Name Bidragon
Model Number BP
Weight 195kg
Dimension(L*W*H) 1800*4020*2130mm
Certification SGS,
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic Stick Coffee Packing Machine
1 high accuracy, 0.3-1.0%
2 large packing range
3 Food grade stainless steel

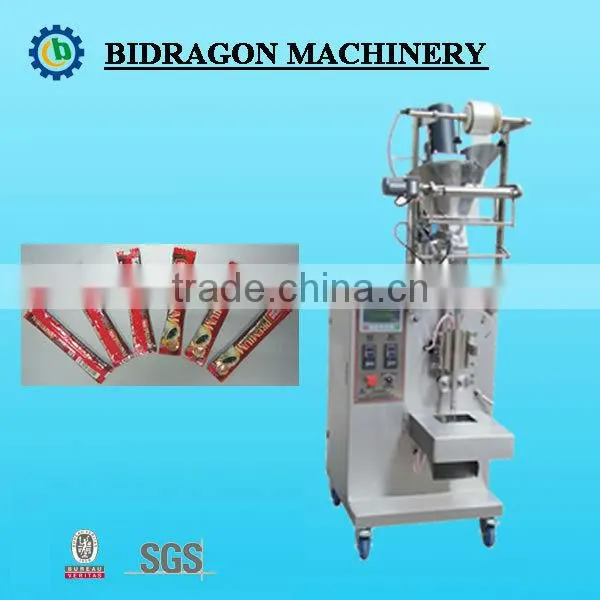

Stick Bag Packing Machine for Powder





Introduction of stick bag packing machine



This stick bag packing machine is specially designed for packing powder, granular materials , such as grape sugar, white boring , feed , milk powder, coffee , monosodium glutamate , solid beverage , powder, granular additive , solid pharmaceuticals, dyes and other items of packaging , the machine can be a one-time completion of nitrogen , measurement , play yards, cut bags , filling and bag making etc.





Features of stick bag packing machine



  1. It uses Chinese (English) to instruct, membrane touch screen clearly shows that the state, operating instructions, simple operation
  2. Adopts smart thermostat, temperature can be controlled to within 3 degrees.
  3. With the tooth sealing , sealing more solid ;
  4. The bag making and powder packing machine adopts enclosed structure , low noise , anti- dust , especially suitable for dust packaging ;
  5. Uses screw helix - turn -filling nose can increase the weighing feedback tracking function;
  6. Without stopping the machine , can directly adjust the sealing and cutting position , correction , seal formation , neat incision on the membrane touch screen ;
  7. Filling head can be changed, and able to adapt to a variety of materials;
  8. When adjust product specifications, do not need tools, a variety of products adjusting parameters can be stored for back-up use.
Technical Parameters of stick bag packing machine


Measurement method

screw rotation filling

Packing Accuracy

≤ ± 0.3-1 %

Machine Weight

800Kg

Feeding hopper volume

60L

Packaging speed

20 - 60bags / min

Air Consumption

0.6Mpa, 0.6L/cycle

Bag dimensions

width (W) 70- 250mm long (L) 100- 320mm

Packing Weight

5-50 ml (filling nose used alone and transform the spiral Attachment)

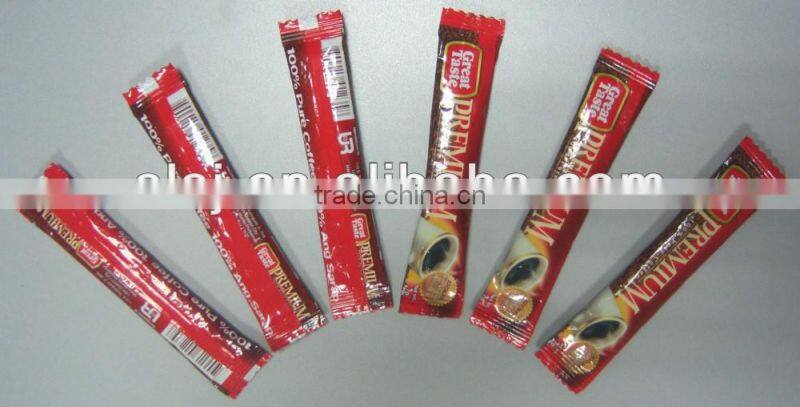

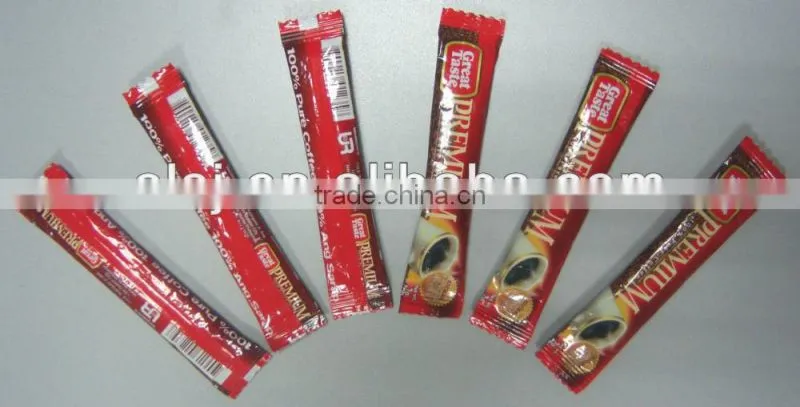

Packing samples of stick bag packing machine



 Stick Bag Packing Machine for Powder





To get more information on stick bag packing machine, just feel free to contact with us!
