Made in China Automatic Wire Nail Making Machine Price China Suppiler

Made in China Automatic Wire Nail Making Machine Price China Suppiler photo-1

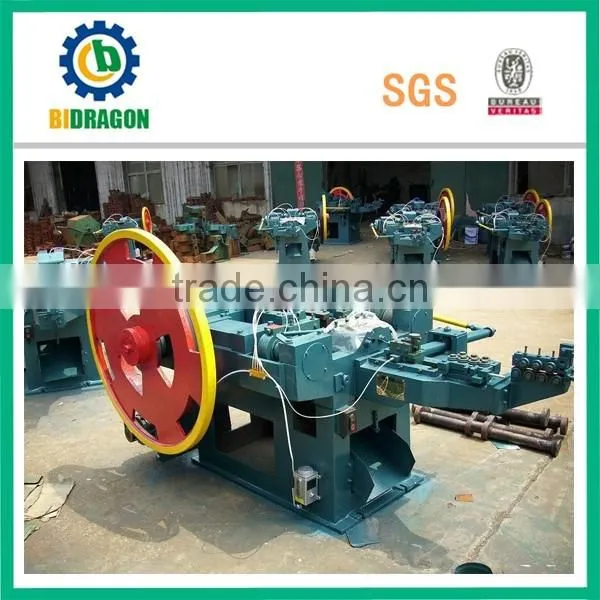

Made in China Automatic Wire Nail Making Machine Price China Suppiler photo-2
Made in China Automatic Wire Nail Making Machine Price China Suppiler photo-3
Made in China Automatic Wire Nail Making Machine Price China Suppiler photo-4
Made in China Automatic Wire Nail Making Machine Price China Suppiler photo-5
Made in China Automatic Wire Nail Making Machine Price China Suppiler photo-6
US$ 3,000 - 3,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
BIDRAGON
Model Number:
Z-94 nail making machine price
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name BIDRAGON
Model Number Z-94 nail making machine price
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

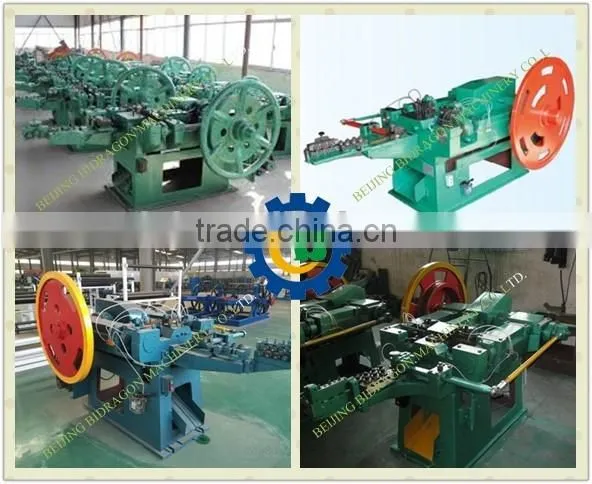

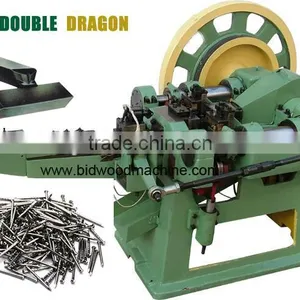

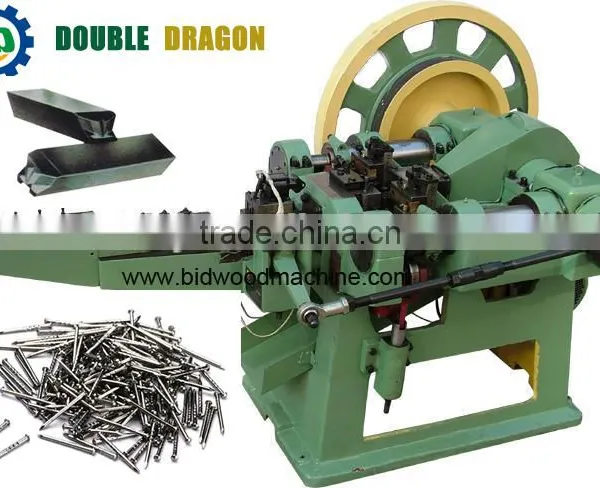

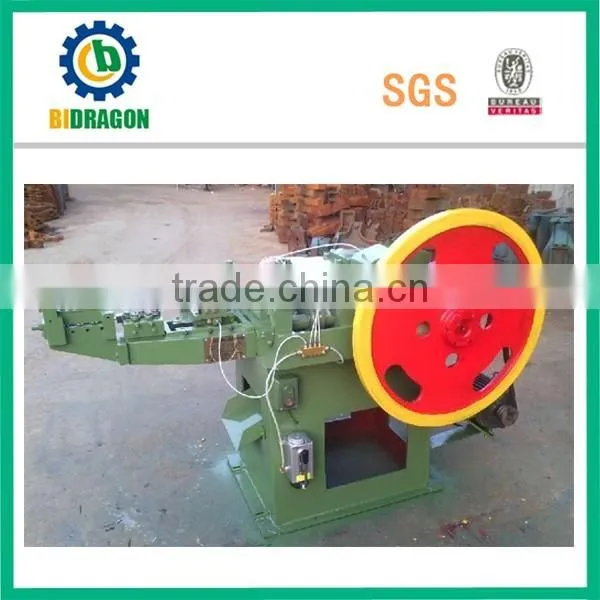

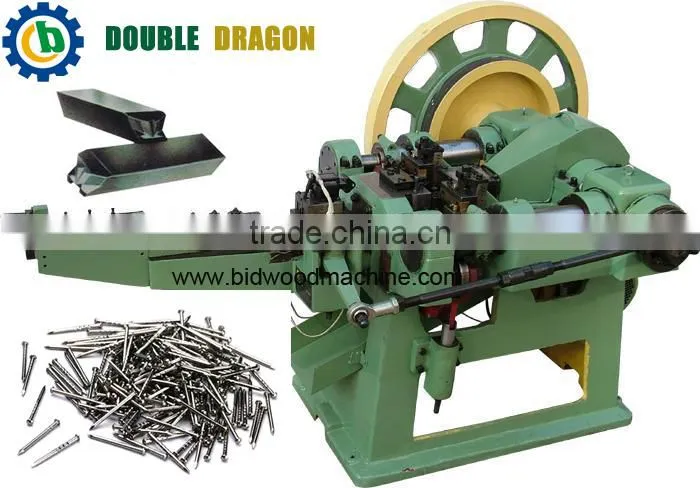

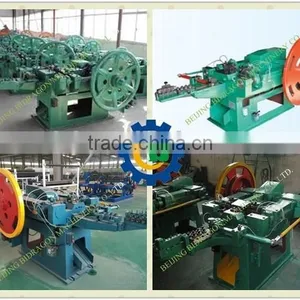

Z-94 Series 1-6 inch steel wire Nail Making Machine is mainly composed of Nail Making Machine, Wire Drawing Machine, Nail Polishing machine.

The wire nail making machine is used for producing various common nails and special nails. It has wide uses, simple operation, and reliable run. We can supply various machine parts and necessary fine auxiliaries for you.


This nail making machine adopts plunger type structure so as to ensure the features such as high speed, low noise and less impact.Especially,it can make the high quality of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun.


Technical items
Unit
BZ94-5C
BZ94-4C
BZ94-3C
BZ94-2C
BZ94-1C
Diameter of nail Max
mm
5.0
4.5
3.4
2.8
1.6
Diameter of nail Min
mm
3.4
2.8
1.8
1.0
0.9
Length of nail Max
mm
150
100
75
50
25
Length of nail Min
mm
100
50
25
16
9
Designed output
pcs/min
220
260
280
300
450
Motor power
kw
5.5
4
3
2.2
1.5
Overall size
mm
2400×1550×1650
2350×1500×1350
2060×1250×1300
1820×1200×1100
1500×1200×1100
Weight
kg
2500
1900
1200
950
750

Main Features

1) This nail making machine adopts plunger type structure so as to ensure the features such as high speed.

2) low noise and less impact.

3) Full automatic.

4) One year warranty.


Certifications
Detailed Images

Wire Nail Drawing Machine

Wire nail drawing machine is used to get the fine dia. we need.
Combined wire drawing machine: it is can be matched with 2 rollers, 3 rollers, 4 rollers or more according to the daily capacity.

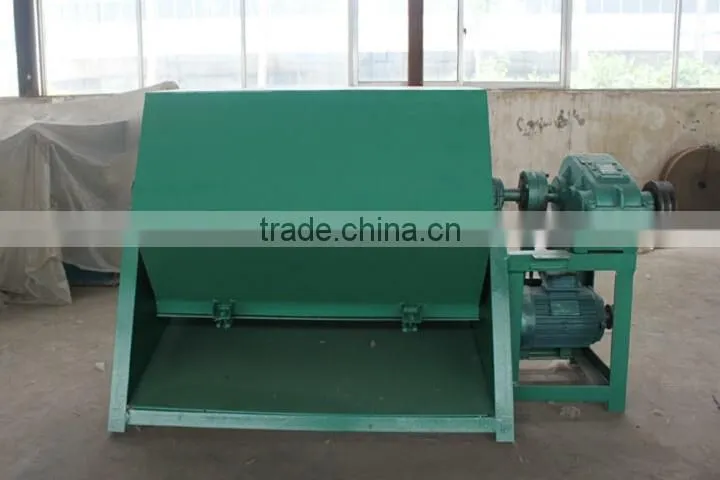

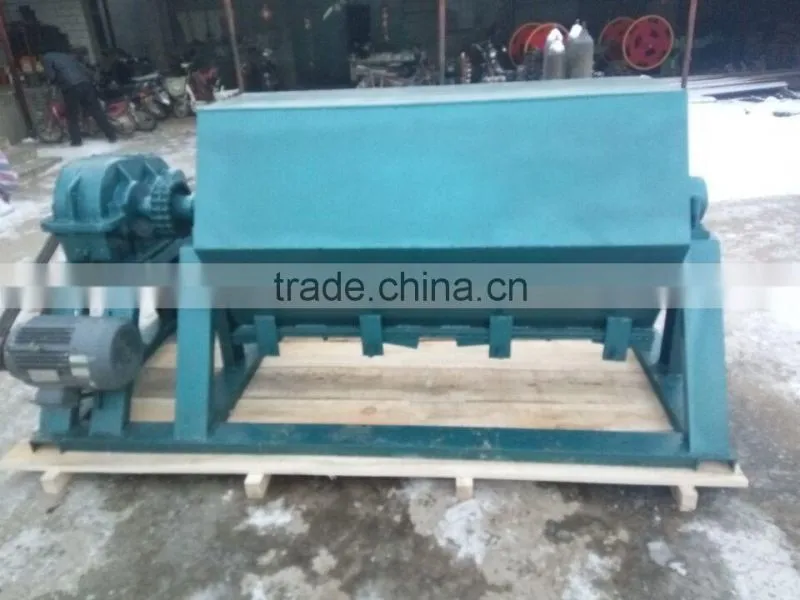

Nail Polishing Machine


when the nails comes out from the nail making machine, it is not so smooth and bright, to make it bright and have a good selling appearance, it needs to be polished. Firstly put the nail in the polishing drum, then put some saw dust onto the nails,then cover it and start the machine, in general it needs 2 hours’ polishing.


Butt Welding Machine

In case the wire breaks during drawing,you can use the butt welding machine to weld the broken wire together ,then continue the drawing.without this machine,if the wire breaks,you need to sharpen the wire head again and do all things from the start.

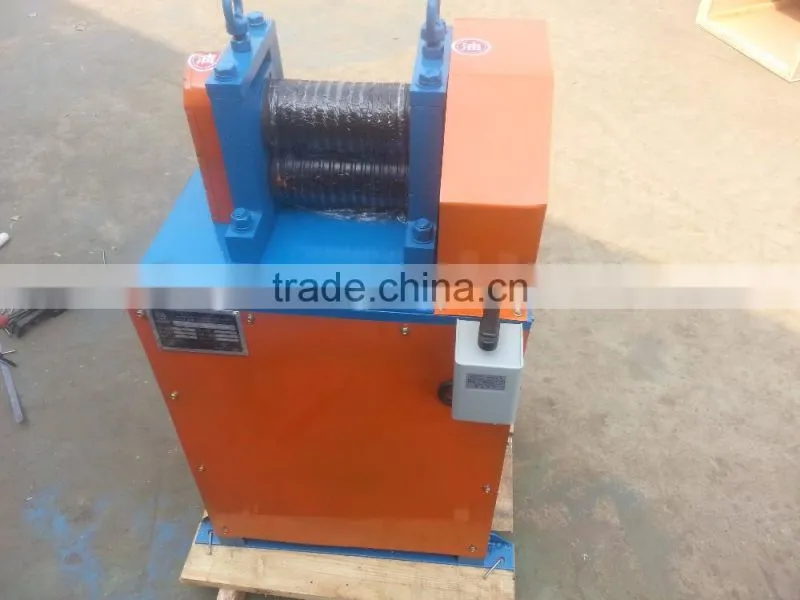

Nail Pointing Machine

It is used to sharpen the head of the wire, then the wire can beeasily get into the mouth of the nail machine.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

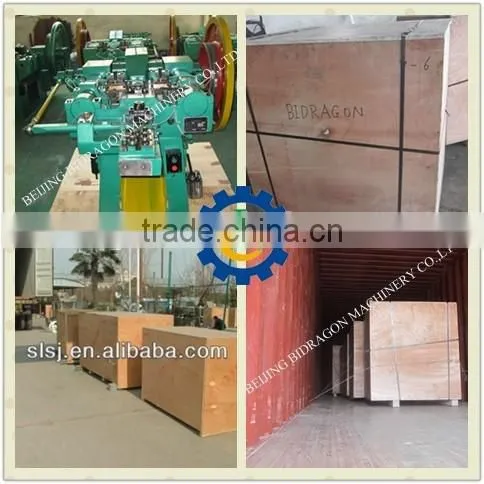

Packing & Delivery


The traditional export packing
Plywood packing


Port information
qingdao,shagnhai,ningbo,tianjin (According to the customer's requirements)
