What is the meaning of 1 set sets wire nail making machine? This question is very to answer. The wire nail making machine, understand from the word, just what a machine to making wire nail. But 1 set would become a complex wire nail making processing.

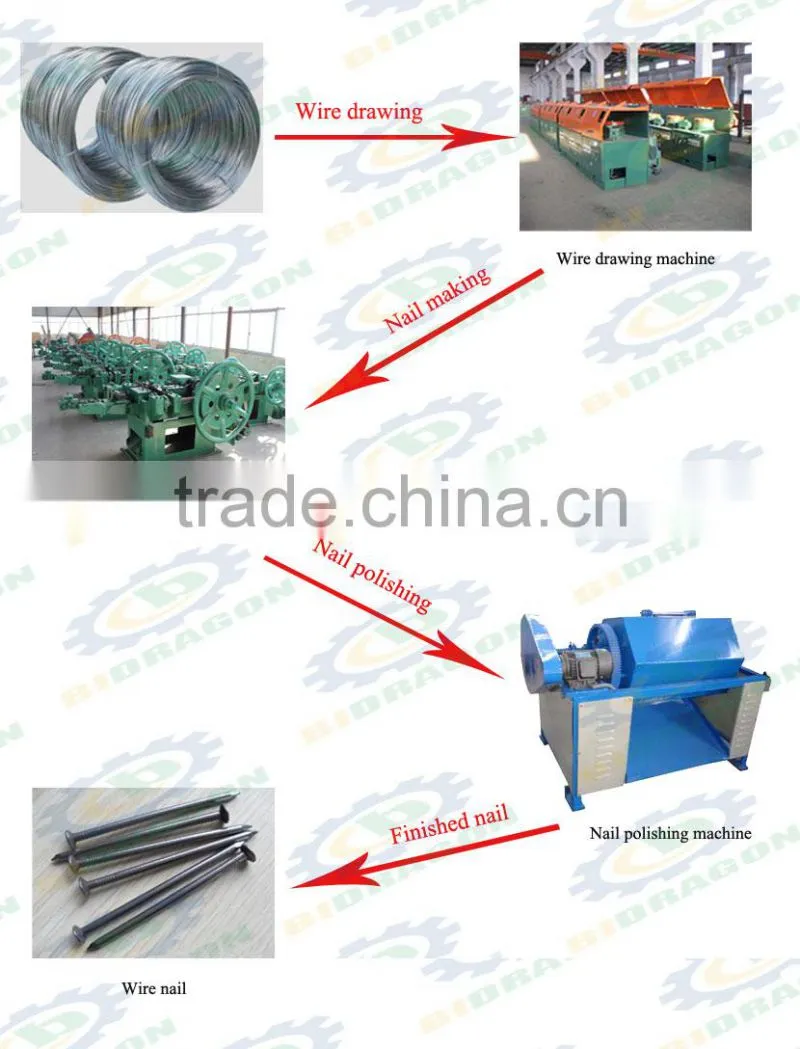

The 1 set wire nail making machine contains 3 main parts, wire drawing, nail making machine, and nail polishing. The other spare parts is nail knife, nail mould , pin punch , dies . The wire nail making machine system composes of these parts.
The 3 main machine of the wire nail making process:
Wire drawing machine: draw the raw material steel wire.
Nail making machine: to cut the steel wire into nails and make nails head.
Nail polishing machine: When the nails come from the nail making machine, it
is not so smooth and bright, to make it bright and have a good selling appearance;
It needs to be polished. Concerning for the polishing steps, firstly put the nail in the
polishing drum; Them put some saw dust onto the nails, then cover it and start the
machine , in general it needs 2 hours to completed .
Specification
Technica |
Unit |
Z94-4C |
Z94-3C |
Z94-2C |
Z94-1C |
Z94-5.5C |
Z94-6A |
Max diam |
mm |
4.5 |
3.4 |
2.8 |
1.6 |
5.5 |
6.0 |
Min diam |
mm |
2.8 |
1.8 |
1.2 |
0.9 |
4.1 |
4.1 |
Max length |
mm |
100 |
75 |
50 |
25 |
150 |
180 |
Min length |
mm |
50 |
25 |
16 |
9 |
100 |
100 |
Desiged output |
Pcs/min |
260 |
280 |
300 |
450 |
220 |
220 |
Motor power |
kw |
4 |
3 |
2.2 |
1.5 |
5.5 |
11 |
Weight |
kg |
1900 |
1200 |
950 |
750 |
2500 |
6000 |

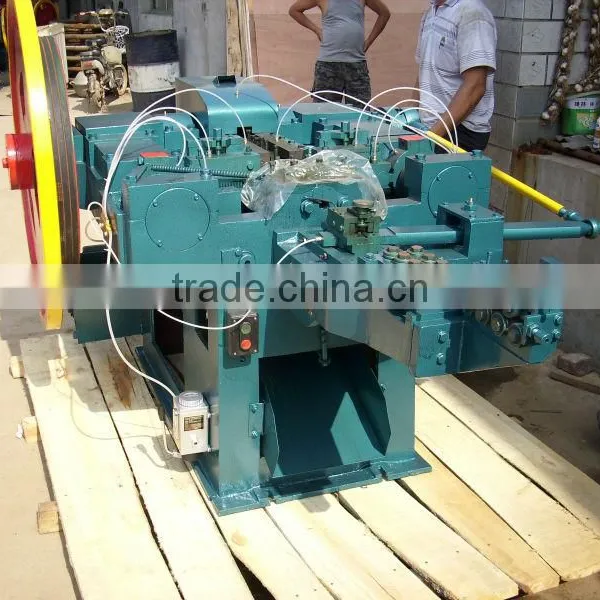

Our product pictures:
Our packing pictures:
Our delivery pictures:
The nails pictures:
