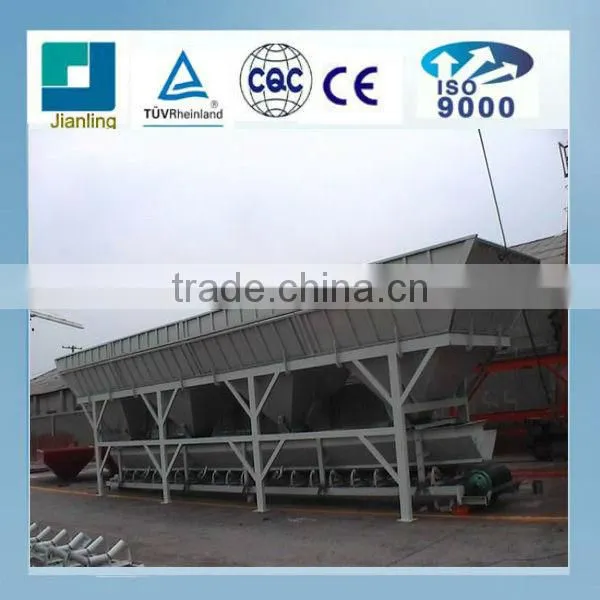

PL2400 Factory Supply Hot Sale Concrete Batcher
Overview of Concrete Batcher
Automatically finish the proportioning and measuring of sand and stone.
1. The controller has visual features like high weighing accuracy, rapid reacting speed,
stable and reliable performance, strong anti-jamming ability, simple operation, etc.
2. It can control the specified proportioning times, and accumulate the total times
automatically.
3. Customers can choose the numbers of proportioning bins according to different
use.
Features of Concrete Batcher
1. PL2400 batching machine is a kind of modified concrete batching equipment and us-
ed to prepare concrete mixture. It can prepare 3 kinds of material, adopts electronic sca-
le measuring, automatic batching program control. It is of higher batching accuracy, higher
speed, strong applicability; easy to operate and reliable to use. The mixture ratio can be
regulated freely, simple and intuitive.
2. PL2400 batching machine and concrete mixer can be combined into concrete mixing
station, which is used in large, medium water and electricity engineering, building site,
and concrete prefabricated part factory. And it is ideal equipment to improve production
efficiency, reduce labor intensity, and guarantee concrete quality.
3. The machine is composed of feeding system, weighing system and electrical system etc.
The main parts: conveyor and hopper. Conveyor is a belt feeder, with a precisely weighing
system (control lever & single sensor).
Technical Parameters of Concrete Batcher
Model |
PL800 |
PL1200 |
PL1600 |
PL2400 |
Storage capacity(L) |
2×3000 |
3×4500 |
3×5000 |
3×8000 |
Capacity of measuring hopper(L) |
800 |
1200 |
1600 |
2400 |
Batching period(s) |
40 |
40 |
40 |
40 |
Max. Weight of Accumulative Weighing(kg) |
3000 |
3000 |
4000 |
6000 |
Weighing accuracy(%) |
±2 |
±2 |
±2 |
±2 |
Host power(kw) |
6.6 |
9.6 |
4.18 |
7.7 |
Outline demensions |
6050×2000×2820 |
9200×2250×3267 |
9200×2250×3267 |
9692×2750×3500 |
Weight of single machine(kg) |
3000 |
4500 |
5000 |
6500 |
Weighing form |
Electronic weighing |
Electronic weighing |
Electronic weighing |
Electronic weighing |
Basic Structure And Accessary
After-Sale Service:
1.Warranty:1 year
2.Eengineer is available to service abroad.
3.Techincal assistance is avaible in 24 hours.
