10-Ton Winch Rope / Synthetic Winch Rope for Winch
10-Ton winch rope / synthetic winch rope for winch
Instruction
UHMWPE is the world strongest fiber and is 15 times stronger than steel. The rope is the choice for every serious sailor worldwide because it has very little stretch, it’s lightweight, easy splicable and is UV-resistant.
UHMWPE is made from ultra-high molecular-weight polyethylene and is an extremely high-strength, low-stretch rope.
UHMWPE is stronger than steel cable, floats on water and is extremely resistant to abrasion.
It is commonly used to replace steel cable when weight is an issue. It also makes an excellent material for winch cables
UHMWPE rope core with Polyester jacket rope is a unique products.This kind of rope has high strength and high abrasion resistance features. Polyester jacket will protect the uhmwpe rope core, and prolong the service life of rope.
| Material | UHMWPE (HMPE) |
| Type | Braided |
| Structure | 12-strand |
| Length | 30M/40M/50M(customized) |
| Diameter | 8mm/10mm/12mm(customized) |
| Color | green/grey/red/black/blue/yellow(customized) |
| Accessory | thimble+protective sleeve+lug+hook |
| Delivery time | 7-25days |
| Package | coil/hanks/bundles/reel |
| Certificate | CCS/ISO/ABS/BV(customized) |
Main performance
10-Ton winch rope / synthetic winch rope for winch
- Materials:Ultra High Molecular Weight Polyethylene
- Construction:8-strand ,12-strand, double braided
- Application: Marine, Fishing,Offshore
- Standard Color:Yellow(also available by special order in red, green, blue, orange and so on)
- Specific Gravity:0.975(floating)
- Melting Point: 145℃
- Abrasion Resistance:Excellent
- U.V.Resistance: Good
- Temperature resistance: Maximum 70℃
- Chemical Resistance: Excellent
- U.V.Resistance:Excellent
- Dry&Wet conditions: wet strength eaquals dry strength
- Range of Use: Fishing, offshore installation, Mooring
- Coil Length: 220m(according to customers' request)
- Spliced strength:±10%
- Weight and Length Tolerance:±5%
- MBL:conform ISO 2307
- Other sizes available upon request
Technical data
10-Ton winch rope / synthetic winch rope for winch
Feature
10-Ton winch rope / synthetic winch rope for winch
- Strong adaptability
- High mechanical strength
- High corrosion resistance
- Low elongation
- Good wear resistance
- Easy to operate
- Long service life
Accessory

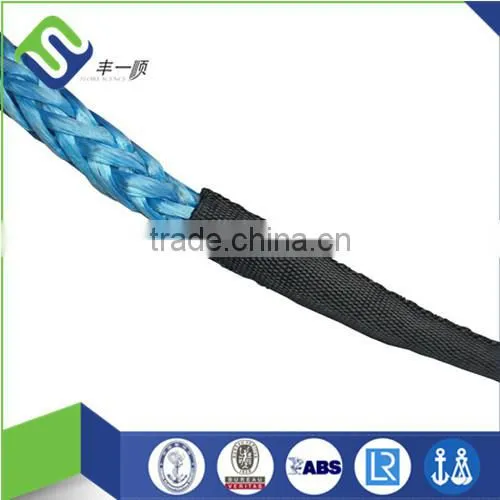

Protective sleeve

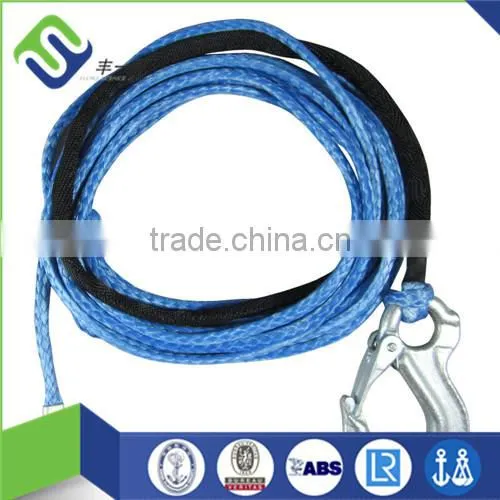

Hook

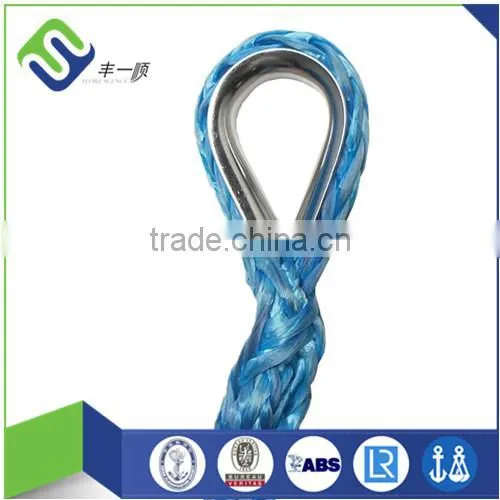

Thimble

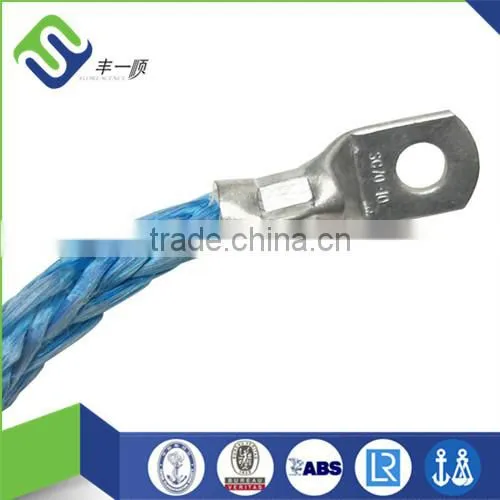

Lug
Application
10-Ton winch rope / synthetic winch rope for winch
- Towing
- Lifting
- ATV 4x4


Package
10-Ton winch rope / synthetic winch rope for winch
- Length:30m/40m/50m
- Packing:bundle with carton
Transportation
10-Ton winch rope / synthetic winch rope for winch
- Port: Qingdao Port/Shanghai Port or according to customers' request
- Transportation ways:Sea/Air
Contact
If you are interested in our products, Pls don't hesistant to contact me.Let's talk details.
Cherry Liu
Skype:cherry_0317
Phone number:18205329368
