plastic monofilament yarn extruding machine
- 10 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Application: | Other, rope twine net | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | high | Place of Origin: | Shandong, China |
Brand Name: | Lutong | Model Number: | YSJ-80 | Voltage: | 380v/ 220v |
Power(W): | 22kw | Dimension(L*W*H): | 15*2*1.5m | Weight: | 3000kgs |
Certification: | BV | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PP PE monofilament yarn extruding machine
Usage:
This set of machine is a professional yarn drawing line, which is mainly used for producing PP, HDPE monofilament yarn used for making rope, twine, fishing net, etc...
Characters:
This line consists of extruder, the first stretching device, heating extension board, the second stretching device and coiling machine. The matching devices for production process are complete, so it can continuously finish the whole procedures from putting material to coil yarn onto bobbins...
According to different technological requirements, set and automatically control the heating temperature of screw cylinder and die head. The temperature can be adjusted according to different kinds of materials.
Adopts rotating needle roller, which can split the stretched yarns into net shape in order to make the yarns soft during next procedure of making ropes.
Technical specifications:
Model | YSJ-45 | YSJ-50 | YSJ-65 | YSJ-70 | YSJ-80 |
Dia.of Screw(mm) | 45 | 50 | 65 | 70 | 80 |
L/D of screw | 28:1 | 28:1 | 28:1 | 28:1 | 28:1 |
Rotate speed of screw(r/min) | 5-75 | 5-75 | 5-75 | 5-75 | 5-75 |
Power of main motor(Kw) | 7.5 | 11 | 15 | 18.5 | 22 |
Heatin |

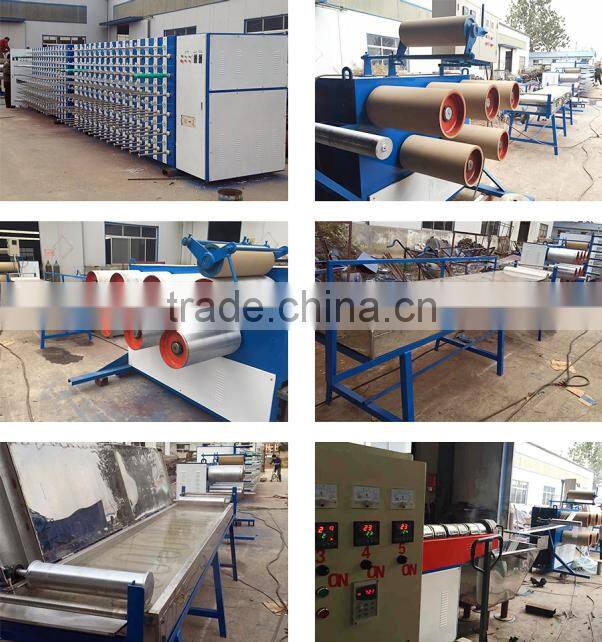

Machine parts:

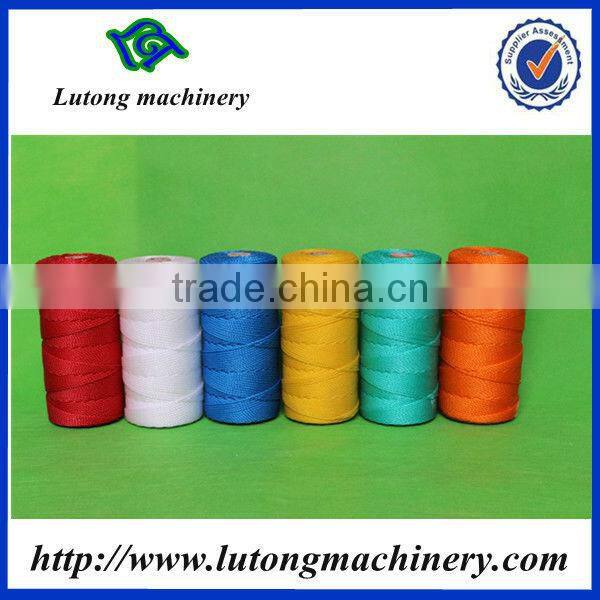

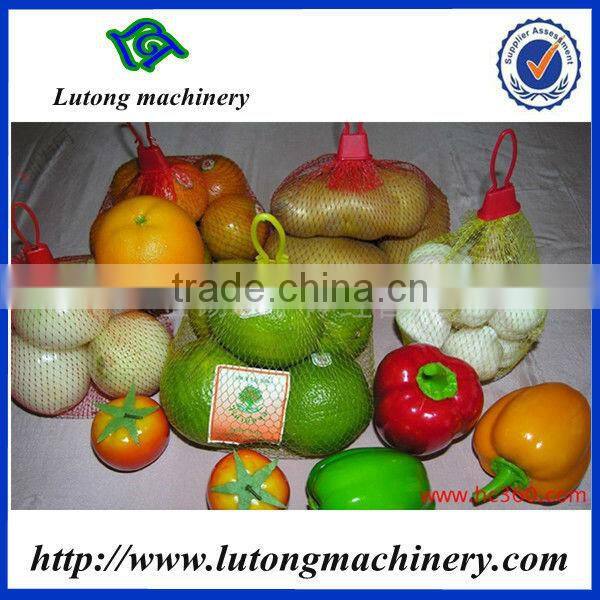

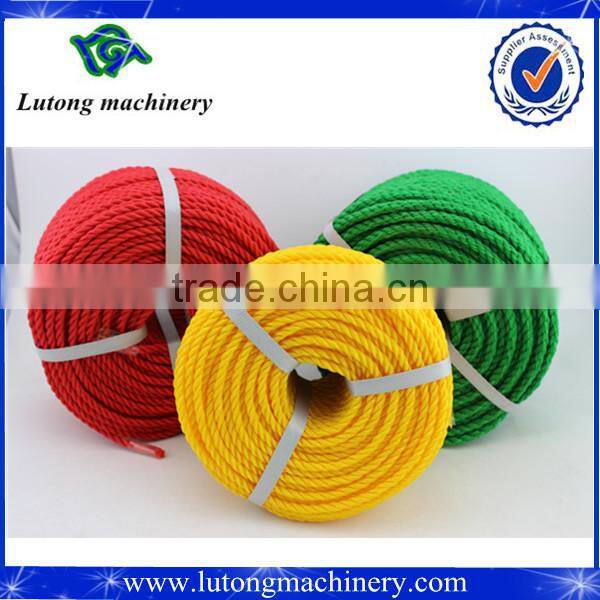

Finished products:
Thank you for visiting our website. If you have any comments and suggestions on our products and services, we express our gratitude and sincere welcome.
About Lutong
Our company was established in 2003. Founded before we already have a wealth of rope production experience, on the basis of long time rope productions, we setup new factory in 2006, which manufactures plastic machines relevant with rope production. Therefore, we can provide you with high-quality machines, meanwhile, we can help to supply solution suggestions for some problems appeared during your rope production according to our years of production experience. Discuss and study together for further progress.
About price
Quote steps:
1. A preliminary quote for your reference.
2. Depending on your final finished product, recommend the appropriate machine models.
3. According to your special requests for parts brand, performance, to provide the final offer.
Note: Due to the differences of machine configuration, materials, technical requirements, accessories brand, etc... The price will fluctuate. In order to get accurate quotation on time, please let us know your detailed requirements.
About payment
30% deposit, the balance paid before shipment.
40% deposit, the balance paid against copy of B/L.
100% L/C
About freight
We can consult good freight for your reference.
About shipment
Small machines, small quantity, 10-15 days.
Big machines, small quantity, 20-30days.
Production line, or big quantity, 30-45 days.
According to different machines, we adopt nude package or plywood cases.
Installation and testing
We dispatch engineer go abroad for installation and testing machine until machine working successfully when machine reach to buyer’s factory, or according to buyer’s arrangement.
Buyer should take the responsibility for engineer’s round-journey ticket, room and board there, cost for visa, and arrange a translator. If need engineer supply train, buyer should pay salary $60 per day.
Preparation before start the machine
The equipment must be fixed on reliable ground.
Check whether the chain is loose or not
Check whether the electronic organ and wire is normal or not
Check whether all the doors are closed suitably or not
Check whether power voltage is normal or not.
Fill in lubricate oil and engine oil before testing the machine
Machine maintenance
Lubricate oil must be filled in each transmitting parts timely (twice every week at least); grease must be filled in the bearings (twice every week at least).
Check whether the chain, transmitting belt, screw are loose or not every shift.
Check motor and listen to the running sound to see it in good condition or not.
Machine stop, pls clean up waste material and sundries under cooling condition on time.
Customer’s service
Warranty period of one year. Within one year the main components of the machine problems, we provide replaced spare parts (except for the improper operation of the buyer); if technical problem can be solved by buyer, we can supply solution by email or phone. For operating problem occurred during production, you can contact with us at any time.
Technological innovation
We insist in continuous improvement and innovation of existing technologies to meet the needs of the majority of rope manufacturers’ demand. Our technological achievements will be shown on our website by degrees. And if you have special technical requirement, our company can assist in research and development.
Website:
Place of production
Laizhou city, Shandong province. Near to Qingdao port.
For equipment we can’t produce, we can recommend a reputable company for your reference. .
