Split Film Plastic Raffia Tape Drawing Machine
This series plastic raffia tape drawing machine can produce many kinds of fiber by different screw and related equipments, such like HDPE and PP monofilament fiber, danline fiber, flat film fiber, split film fiber, the fibers can be used for the manufacturing of industry, fishing industry and civilian use, such like rope, fishing net, construction safety net, PP bag and etc.
1. Main technical parameter
| Item | HDSLJ-70 | HDSLJ-80 | HDSLJ-90 |
| T-Die Width | 600mm | 800mm | 1000mm |
| Dia of Screw | 70mm | 80mm | 90mm |
| Ratio of L/D | 30 | 33 | 33 |
| Rotation Speed of Screw | 20-90r/min | 20-90r/min | 20-90r/min |
| Drawing Ratio | 4--10 | 4--10 | 4--10 |
| Power Consumption | 100kw/60kw | 130kw/80kw | 150kw/100kw |
| Max Output capacity | 1200kg/24h | 2100kg/24h | 3000kg/24h |
| Machine Dimension(L*W*H) | 25m*2m*2m | 26m*2.2m*2.1m | 27m*2.2m*2m |
2. Flow Chart of plastic raffia tape drawing machine:
Raw material ----------Extruder------------water cooling--------stretching-------heating
---------stretching-----------guide roller----------winder
3. Advantages
- Screw and barrel are made of nitride steel 38CrMoAl with special hardening, with a good corrosion resistance and wear resistance
- AC Invertor & Motor which synchronizes the entire extruder
- Latest technology used to force the melt into the die very effectively
- High outputcapacity
- Low maintenance
4. What can we do for you??
(1)Supply high quality products
1. Best material selection
All steel are national standard steel; All electrical appliances are domestic brand and international brand

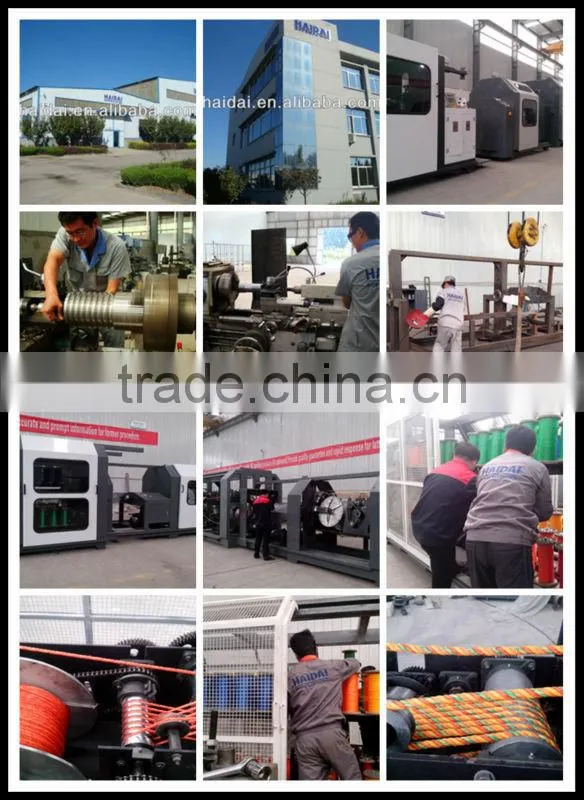

2. Professional producing
we produce all machines by ourselves, all machines are required to be modulated and main machine parts are required to be quenched .
3. Whole line machine
we can supply the whole line machine to make rope, from raw material to finished product.
PP extruder (pp fiber)----Ring twister (strand)---Rope Making Machine (twisted rope, braided rope)---Packagingspool winder, ball winder, hank machine, coil machine)
(2)Supply Excellent service
1. Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

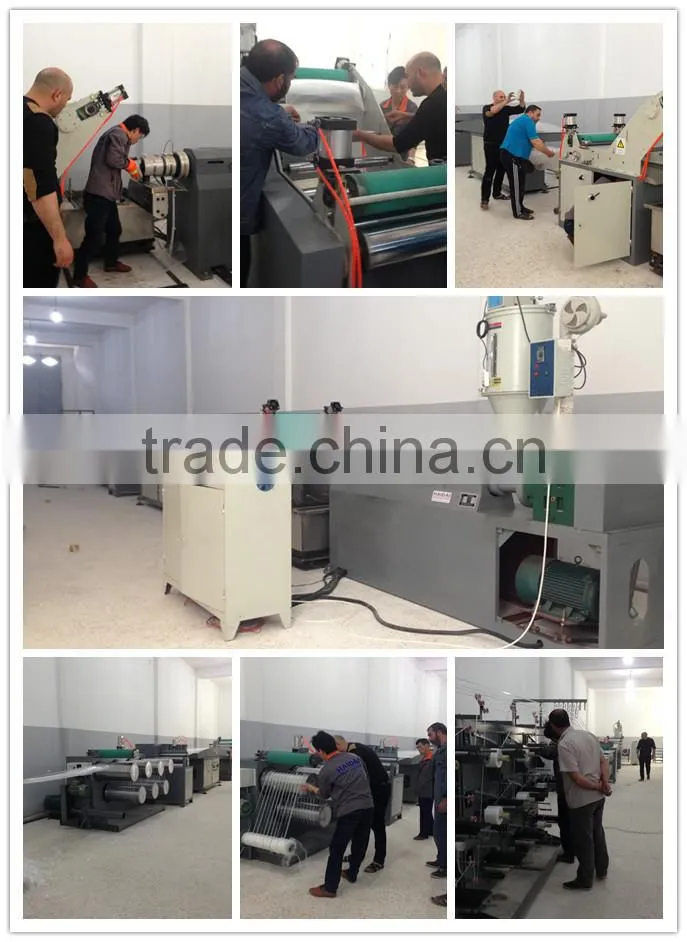

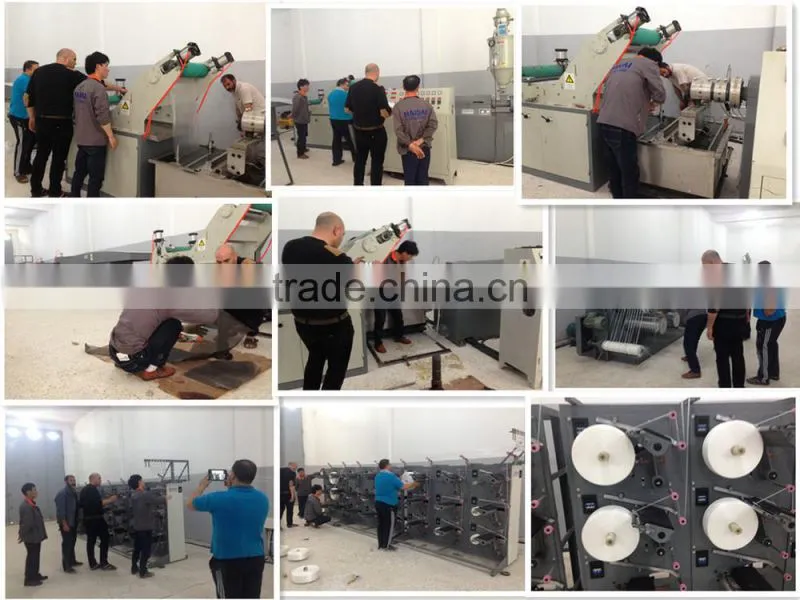

Installing at client's factory
2. Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.Good After-Sales Service
We offer the Preventative Maintenance and After Sales Service.We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

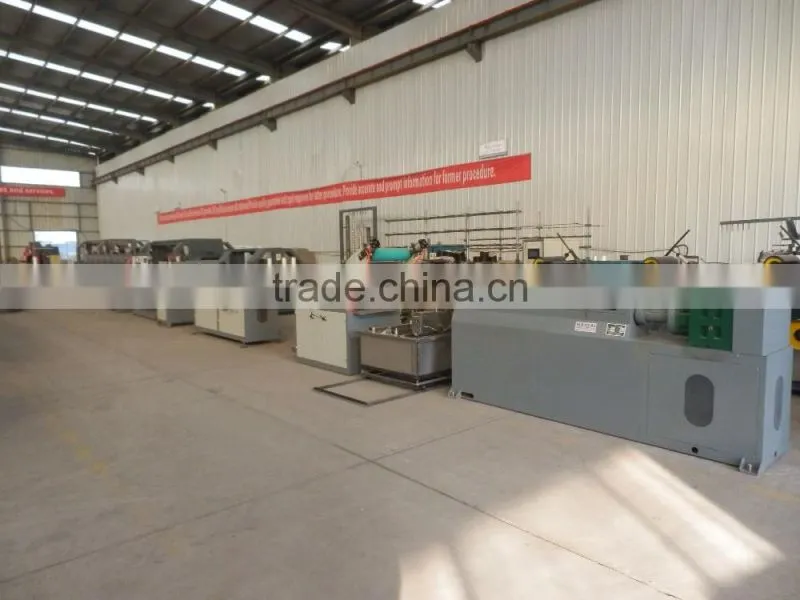

5. Picturer Show of plastic raffia tape drawing machine
plastic raffia tape drawing machine
The plastic raffia tape can be used for making pp baler twine and pp rope.
Our certifications
7. FAQ
1. Q: How can I get photos and videos about the plastic raffia tape drawing machine?
A: we can supply you all details photos of our machine. if you need, we can take operating video for you.
2. Q: Are you a factory or a trade company?
A: We are a professional rope machine factory, and we have export right.
3. Q: Can you do the design for us?
A: Yes, we have a professional team having rich experience in rope machine design and manufacturing. Just tell us your request; our engineers will try their best to get it; you can also send us your design drawing, we can make the machine follow it.
4. Q: How can I install the machine?
A: For extruder, our engineer can install it for you; for ring twister, we can install one group before delivery; for twisted rope machine, ball winder, spool winder,etc. they are finished machine, no need to install.
Details information and price will provide to you as soon as get your inquiry.
