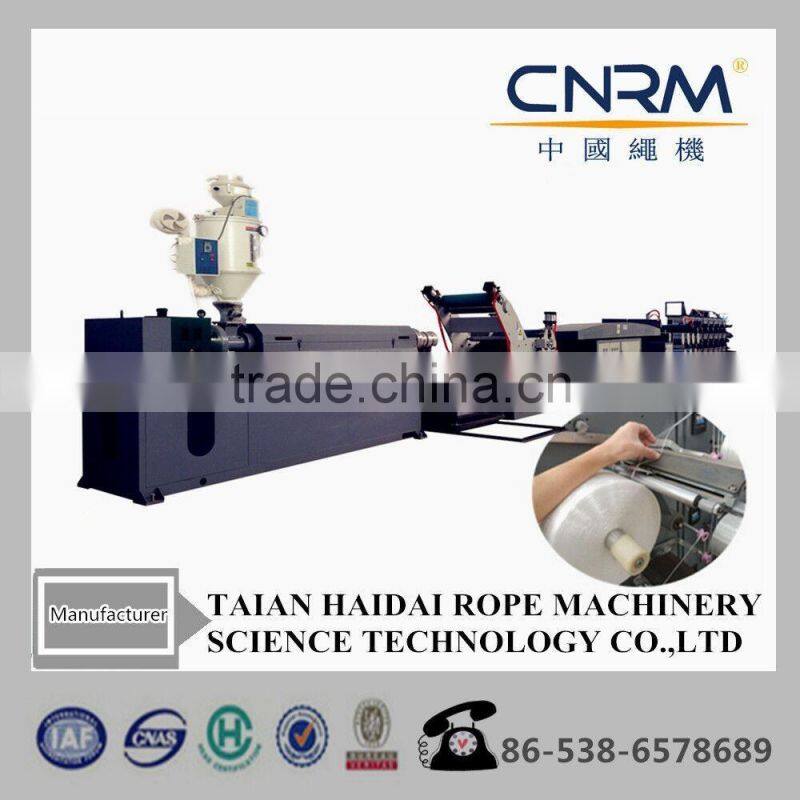

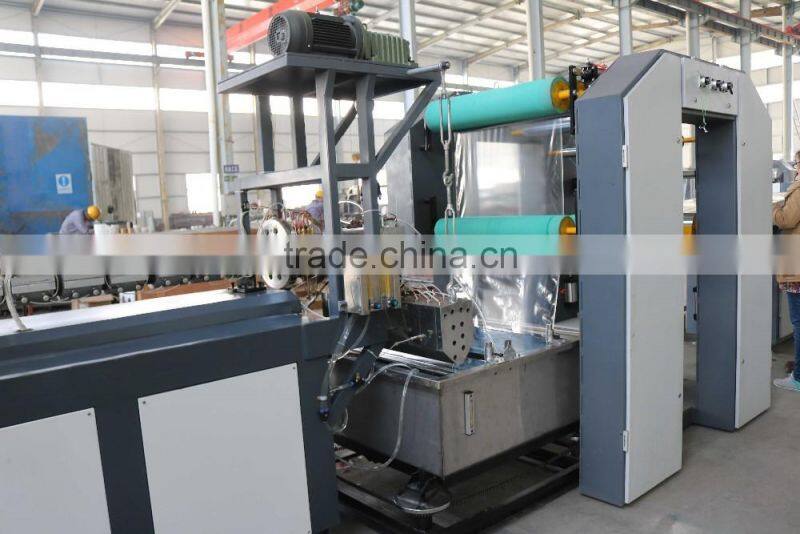

PP Raffia Yarn Plastic Split Film Making Machine

PP Raffia Yarn Plastic Split Film Making Machine thumbnail-1
PP Raffia Yarn Plastic Split Film Making Machine photo-1
US$ 40,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Fiber, Yarn, Twine, Rope, Net
Plastic Processed:
PP
Contact Supplier Request Quote Chat Now
Taian Haidai Rope Machinery Science Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Fiber, Yarn, Twine, Rope, Net
Plastic Processed PP
Screw Design Single-screw
Automatic Grade Semi-Automatic
Place of Origin Shandong, China
Brand Name CNRM
Model Number HDSLJ-80
Voltage 380VAC,3 Phase,50HZ
Power(W) 130/80kw
Dimension(L*W*H) 26m(L)*2.2m(W)*2.1m(H)
Weight 12tons
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

This series plastic split film making machine can produce many kinds of fiber by different screw and related equipments, such like HDPE and PP monofilament fiber, danline fiber, flat film fiber, split film fiber, the fibers can be used for the manufacturing of industry, fishing industry and civilian use, such like rope, fishing net, construction safety net, PP bag and etc.
Item
HDSLJ-70
HDSLJ-80
HDSLJ-90

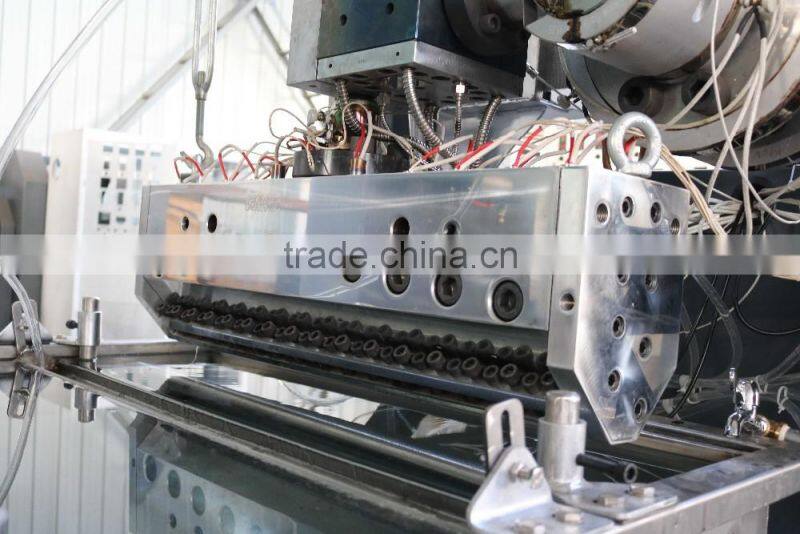

T-Die Width
600mm
800mm
1000mm
Dia of Screw
70mm
80mm
90mm
Ratio of L/D
30
33
33
Rotation Speed of Screw
20-90r/min
20-90r/min
20-90r/min
Drawing Ratio
4--10
4--10
4--10
Power Consumption
100kw/60kw
130kw/80kw
150kw/100kw
Max Output capacity
1200kg/24h
2100kg/24h
3000kg/24h
Machine Dimension(L*W*H)
25m*2m*2m
26m*2.2m*2.1m
27m*2.2m*2m

Main Features

1) Screw and barrel are made of nitride steel 38CrMoAl with special hardening, with a good corrosion resistance and wear resistance
2) AC Invertor & Motor which synchronizes the entire extruder
3) Latest technology used to force the melt into the die very effectively
4) High outputcapacity
5) Low maintenance







Click here for machine videos
Certifications

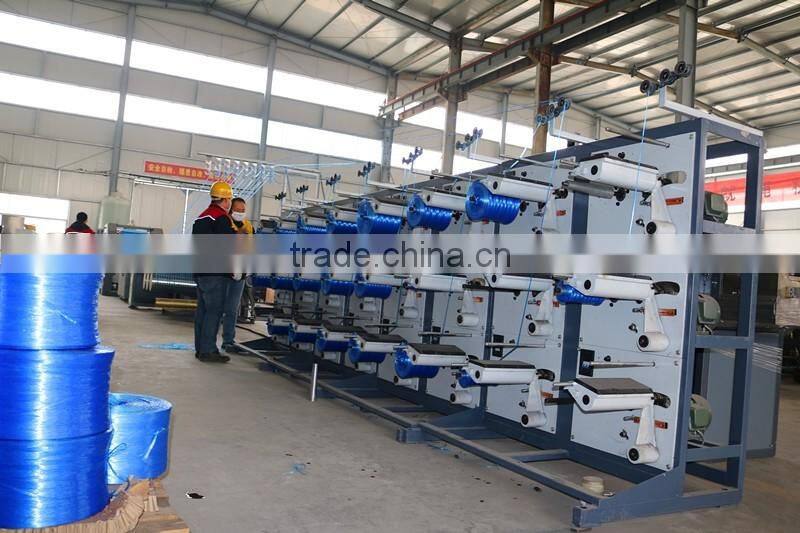

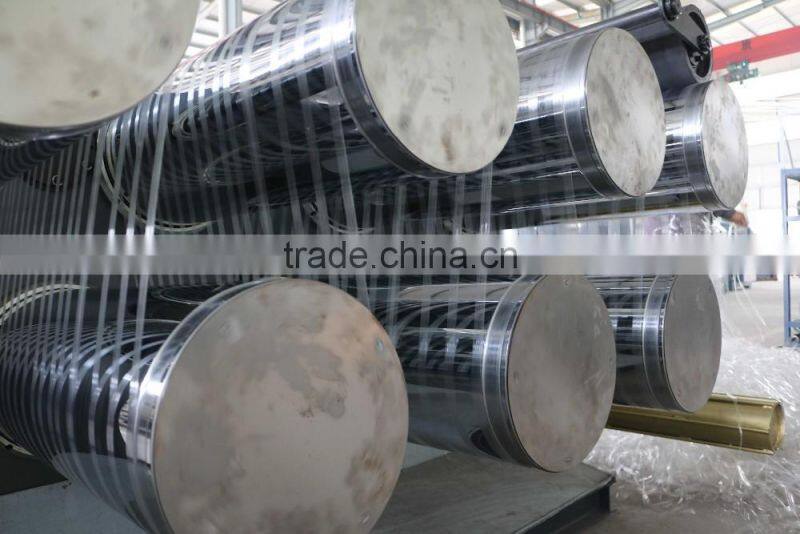

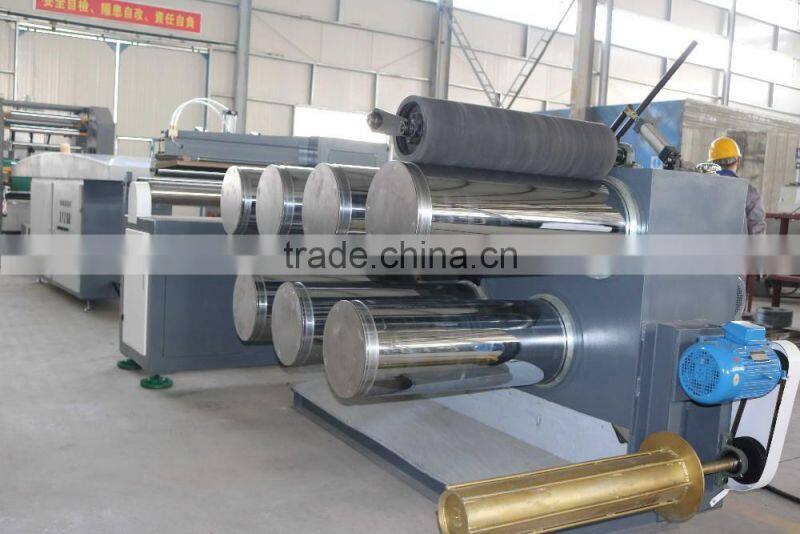

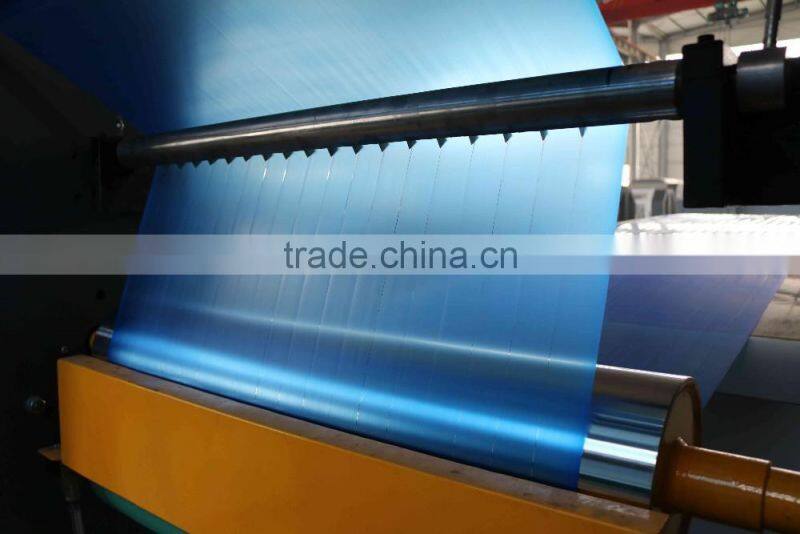

Detailed Images
Why Choose us
Packing & Delivery


Related Products

Ring Twister

For twisting pp twine

Two for one spool winder

For twsiting and winding pp twine into spool shape

Yarn ball winder

For winding pp twine to ball shape

Our Company
FAQ

What can we do for you??


(1)Supply high quality products
1. Best material selection
All steel are national standard steel; All electrical appliances are domestic brand and international brand
2. Professional producing
we produce all machines by ourselves, all machines are required to be modulated and main machine parts are required to be quenched .
3. Whole line machine
we can supply the whole line machine to make rope, from raw material to finished product.
PP extruder (pp fiber)----Ring twister (strand)---Rope Making Machine (twisted rope, braided rope)---Packagingspool winder, ball winder, hank machine, coil machine)


Please feel free to contact me for more details.
