China Manufacture Nylon Fiber Rope Making Machine

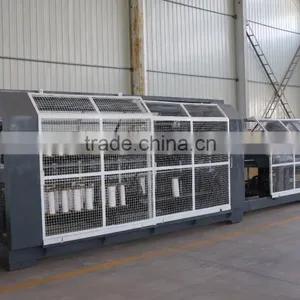

China Manufacture Nylon Fiber Rope Making Machine photo-1

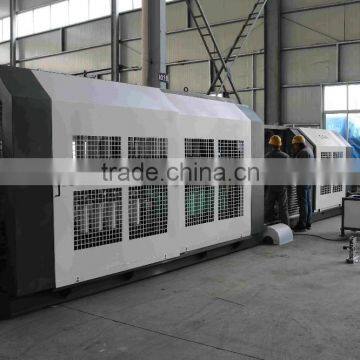

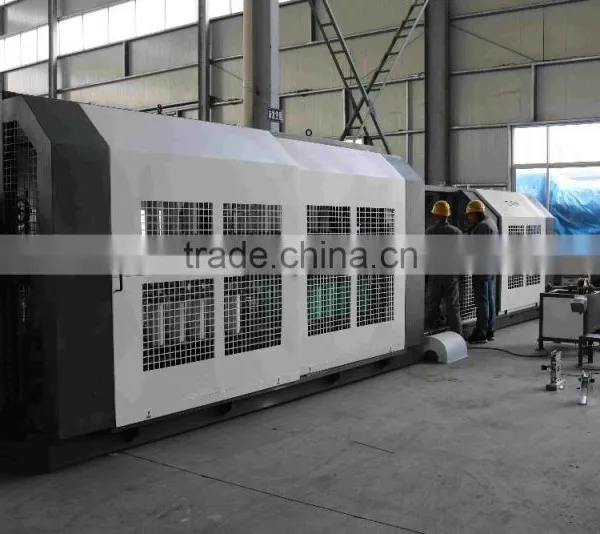

China Manufacture Nylon Fiber Rope Making Machine photo-2

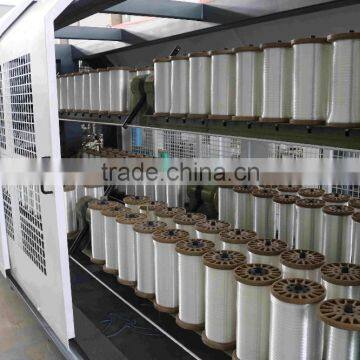

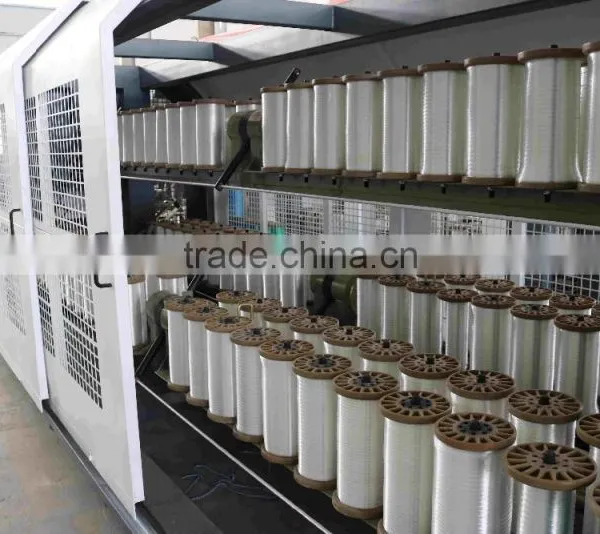

China Manufacture Nylon Fiber Rope Making Machine photo-3

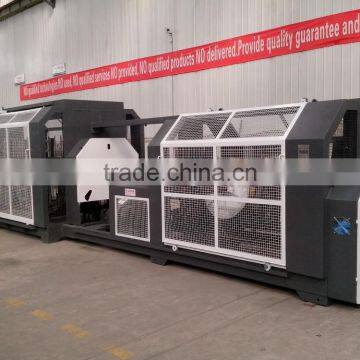

China Manufacture Nylon Fiber Rope Making Machine photo-4

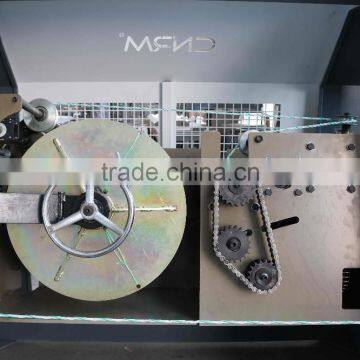

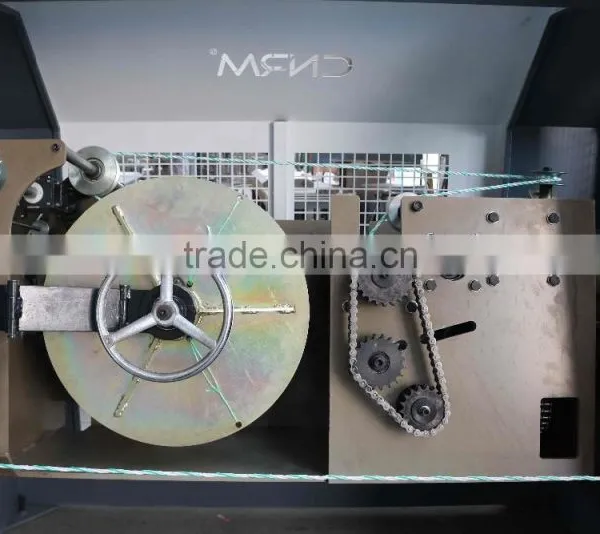

China Manufacture Nylon Fiber Rope Making Machine photo-5

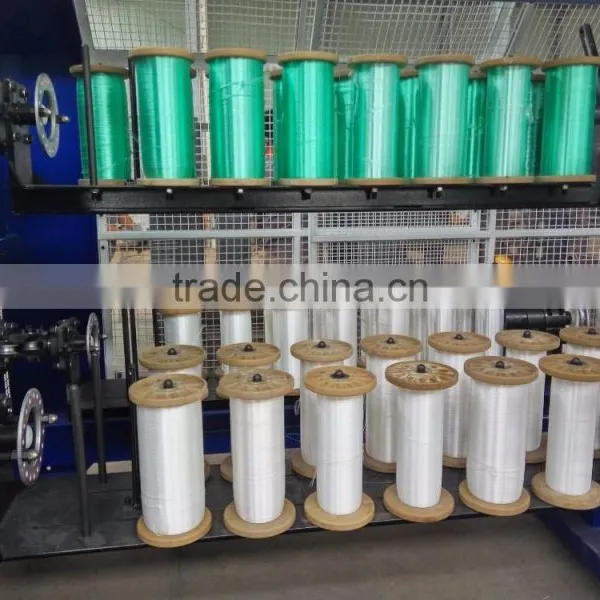

China Manufacture Nylon Fiber Rope Making Machine photo-6
US$ 6,200 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other
Plastic Processed:
PP
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other
Plastic Processed PP
Screw Design Other
Automatic Grade Semi-automatic
Place of Origin Shandong, China
Brand Name CNRM
Model Number M33
Voltage 380V 50HZ
Power(W) 5.5kw
Dimension(L*W*H) 5.6*1.8*1.2m
Weight 2.5t
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

All kinds of specification of pp plastic twisting rope machine for 3 strand or 4 strand can be made by this machine. It is suitable for rope production of different material, such as HDPE&PP monofilament, danline, polyester,nylon, cotton and etc. This 3 strand pp rope making machine is equipped with frequency converter, meter counter, overtravel- limit switch and auto-stop device.It is easy to adjust the rope tensility and change the direction of twist and lay length.

Technical Data

Rope range
Ø3-10mm
Lay range
15-38mm
Rope lay
S or z
Take-up,coiling head
Ø480mm,traverse 265mm,barrel Ø138mm
Take-up,max.weight
Polypropylene 25kg
Pay-off packages
M33-3
M33-4
3x8,max.Ø175x300mm traverse
4x8,max.Ø175x300mm traverse
3x6,max.Ø225x300mm traverse
4x8,max.Ø225x300mm traverse
Take-up capacity
Production capacity
Rope diameter
Coiling head
Rope diameter
Output
Ø4mm
3572m
Ø4mm
120kg
Ø6mm
1563m
Ø6mm
300kg
Ø8mm
926m
Ø8mm
600kg
Ø10mm
595m
Ø10mm
800kg
Bobbin Cradle Part

Rope Winder Part

Final Rope

Process Pictures

Videos

Please click the above picture for machine running video,thanks!

Please click the above picture for our company Alibaba Assessment video,thanks!

Please click the above picture for more machine details,thanks!

Certification
Service
Packing and Delivery
Contact Way
Company Information
