3 Strands Twisted Nylon Rope Making Machine

3 Strands Twisted Nylon Rope Making Machine photo-1
3 Strands Twisted Nylon Rope Making Machine photo-2
3 Strands Twisted Nylon Rope Making Machine photo-3
3 Strands Twisted Nylon Rope Making Machine photo-4
3 Strands Twisted Nylon Rope Making Machine photo-5
3 Strands Twisted Nylon Rope Making Machine photo-6
US$ 6,200 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other
Plastic Processed:
PP
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other
Plastic Processed PP
Screw Design Other
Automatic Grade Semi-automatic
Place of Origin Shandong, China
Brand Name CNRM
Model Number M66
Voltage 380V 50HZ
Power(W) 18.5kw
Dimension(L*W*H) 12*2.4*2.35m
Weight 10tons
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

All kinds of specification of pp plastic twisting rope machine for 3 strand or 4 strand can be made by this machine. It is suitable for rope production of different material, such as HDPE&PP monofilament, danline, polyester,nylon, cotton and etc. This 3 strand pp rope making machine is equipped with frequency converter, meter counter, overtravel- limit switch and auto-stop device.It is easy to adjust the rope tensility and change the direction of twist and lay length.

Technical data
Rope range:
Φ20-26mm
Lay range:
40-105mm
Rope lay:
S or Z
Take-up, coiling head:
Φ740mm, traverse 430mm,barrel Φ150mm
Take-up, max. Weight:
Polypropylene 70kg
Pay-off packages
M66-3
M66-4
3x46 , max.Φ175X300mm traverse
4X46,max.Φ175X300 mm traverse
3x36 , max.Φ225X300mm traverse
4X36,max.Φ225X300 mm traverse
Take-up capacity
Production capacity
Coiling head
Output
Φ20mm
420m
Φ20mm
1500 kg
Φ22mm
350m
Φ22mm
1600 kg
Φ24mm
300m
Φ24mm
1800 kg
Φ26mm
250m
Φ26mm
2000 kg
Picture show

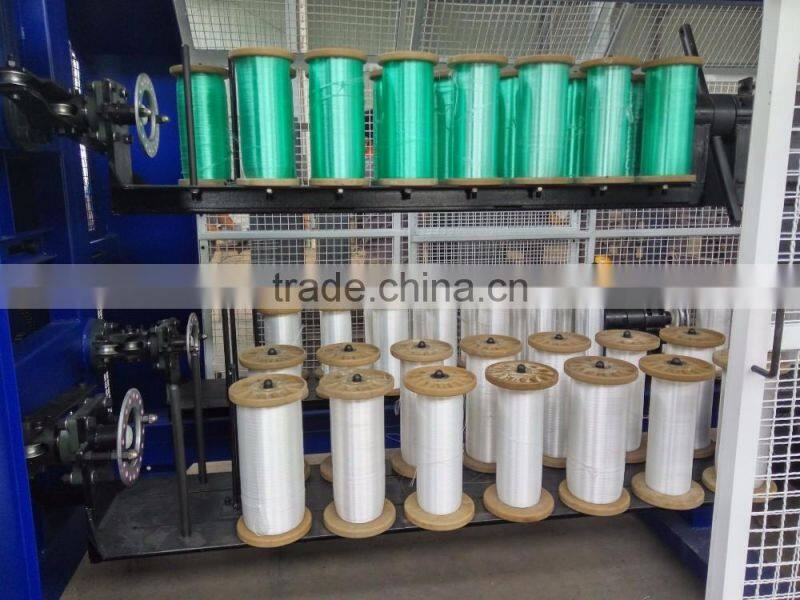

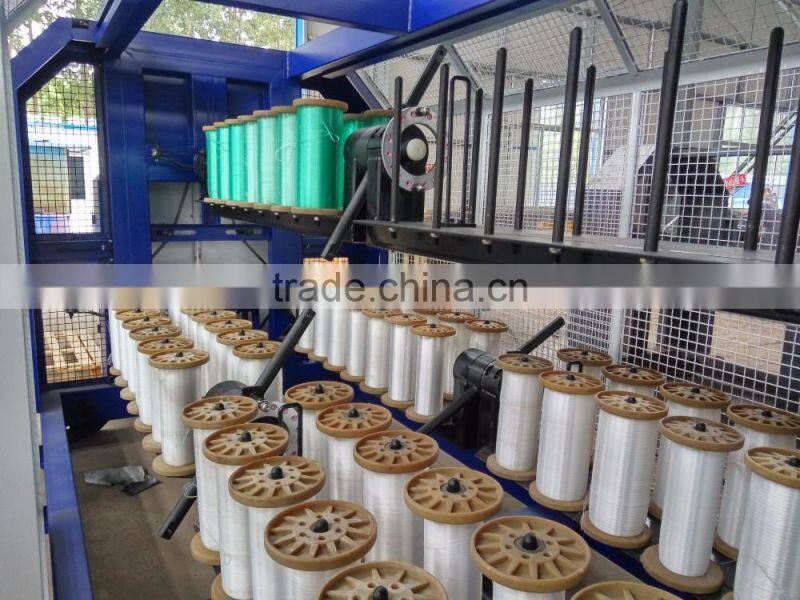

Bobbin Cradle Part

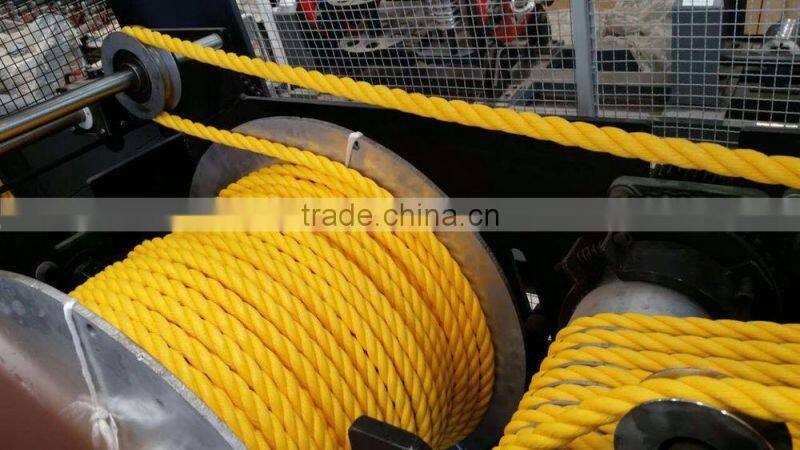

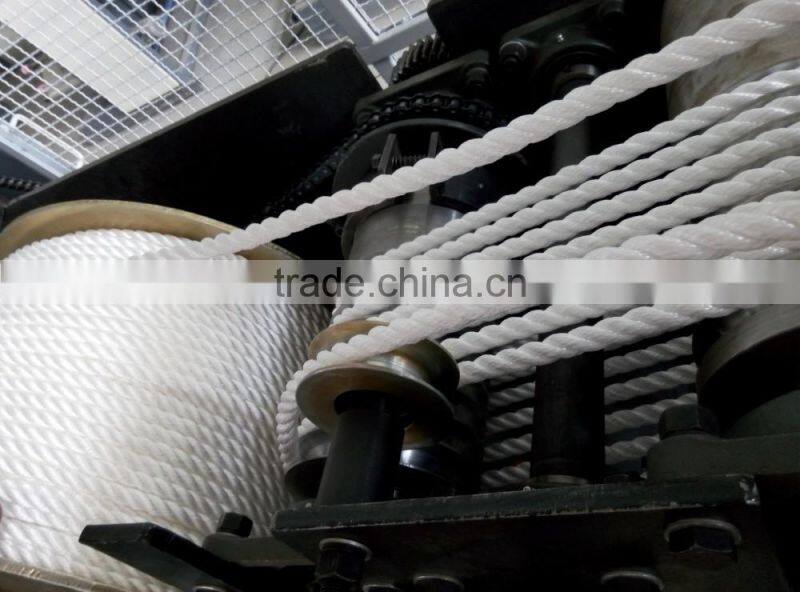

Rope Winder Part

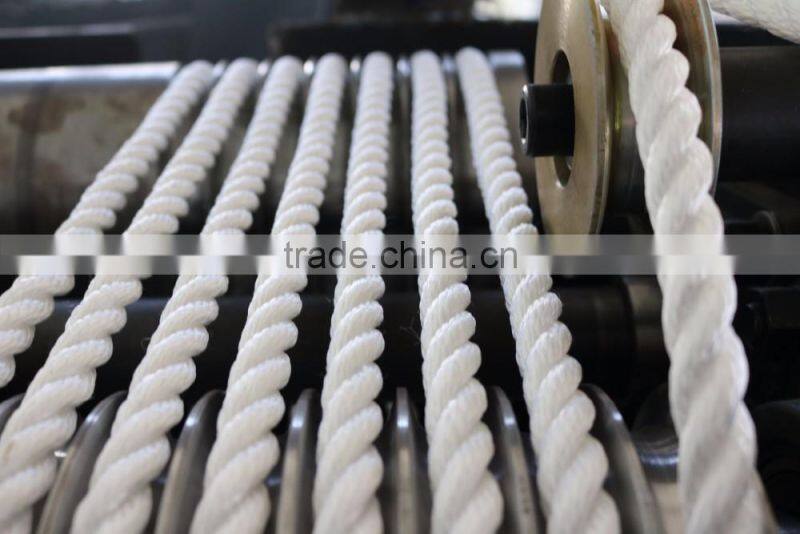

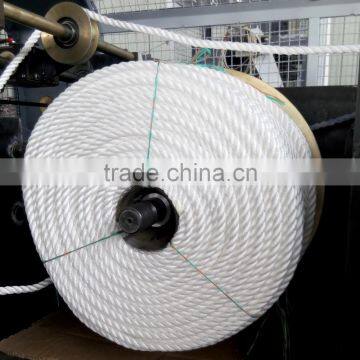

Final Rope

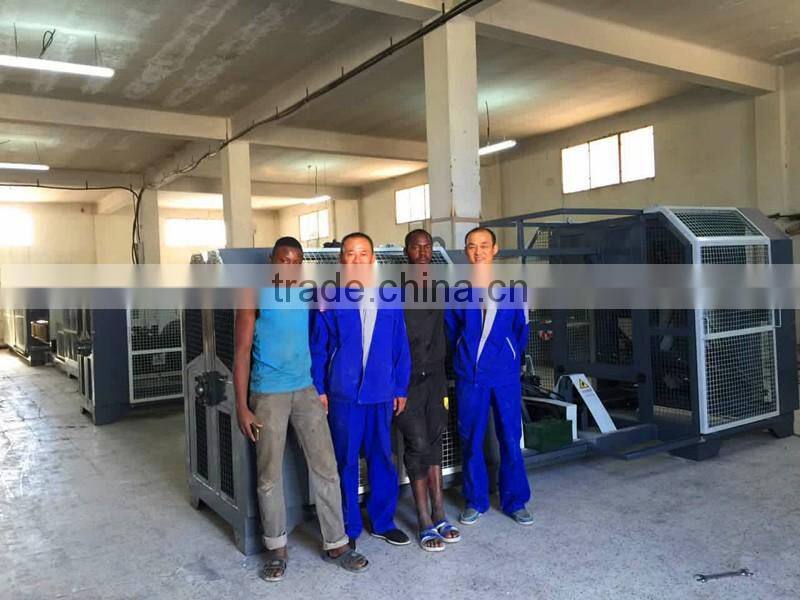

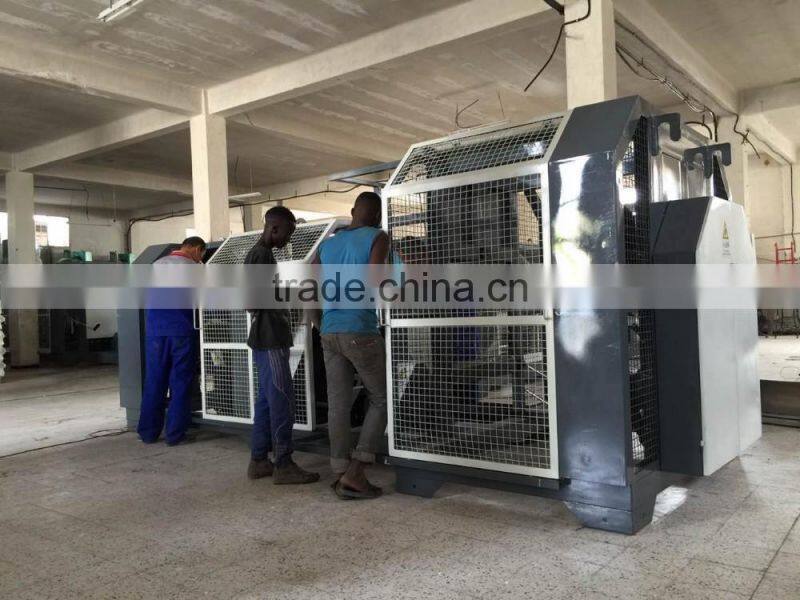

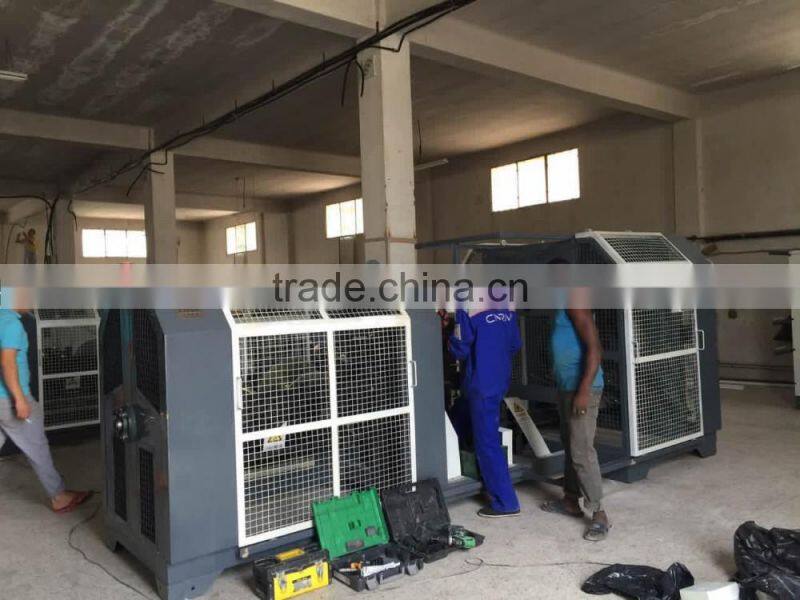

Installation service for our customer

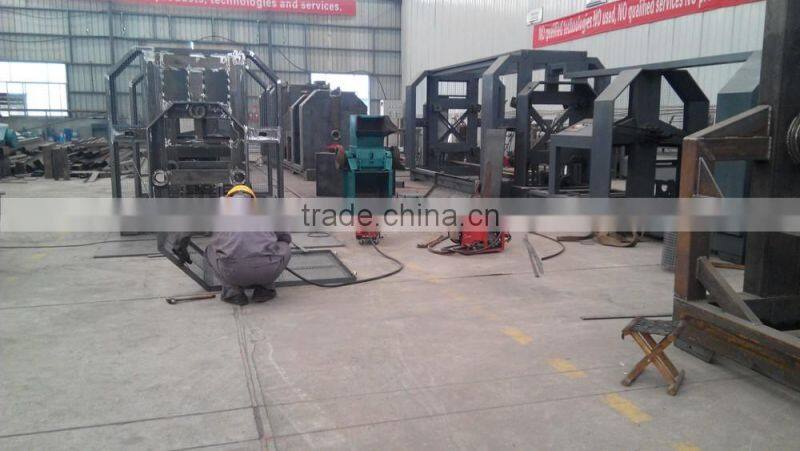

HAIDAI Process Pictures

Machine Video

Please click the above picture for machine test running video,thanks!

Please click the above picture for our company Assessment video of Alibaba,thanks!

Please click the above picture for more machine details,thanks!

Certification
Packing and Shipping
