High Voltage Polymer Fuse Cutout HRW3-10/100
US$ 10 - 30
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
HRW3-10/100
Usage:
High Voltage
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Voltage Polymer Fuse Cutout HRW7-12/100US$ 1 - 10MOQ: 1000 Pieces -
High Voltage Porcelain Distribution Fuse Cutout 38KV 100AUS$ 1 - 10MOQ: 1000 Pieces
-
High Voltage Drop-out Fuse 33KV RW5-35US$ 1 - 10MOQ: 1000 Pieces
-
Ceramic Pin Type Insulator ANSI 55-2US$ 0.4 - 0.8MOQ: 3000 Pieces
-
Ceramic Spool Insulator ANSI 53-2US$ 0.4 - 0.8MOQ: 3000 Pieces
Place of Origin
Zhejiang, China
Model Number
HRW3-10/100
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
Product Description
High voltage Polymer Fuse Cutout HRW3-10/100
Condition of Use:
1. The ambient air temperatures within the range of -30 degreeto +40 degree;2. The altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of the A. C. Power supply not less than 48Hz and not exceeding 52Hz;
4. Earthquake intensity not exceeding 7 degrees;
5. Maximum wind speed not exceeding 35m/s.
Technical Standard:
The technical performance of the products is in confirmed to IEC291, 282.

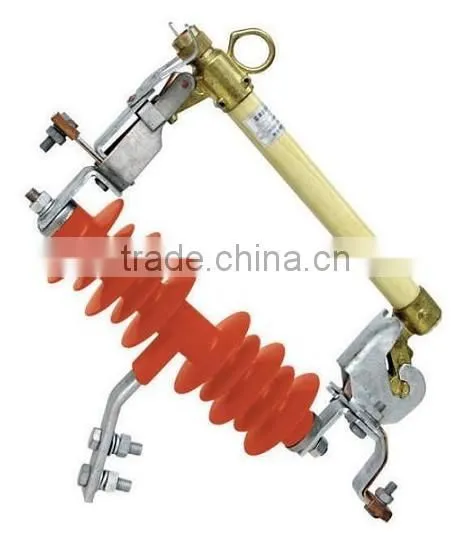

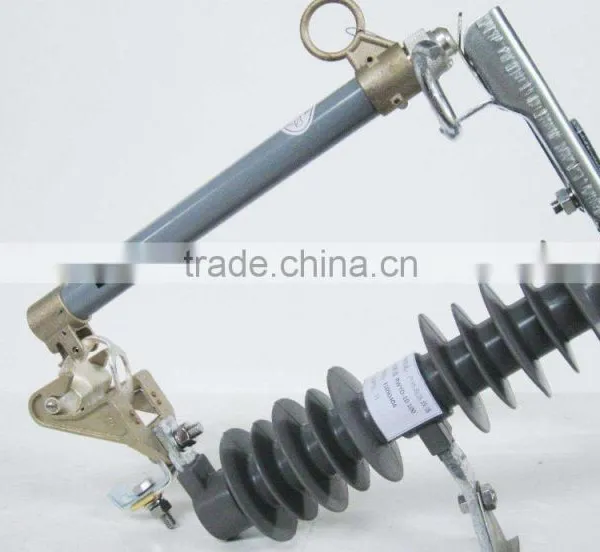

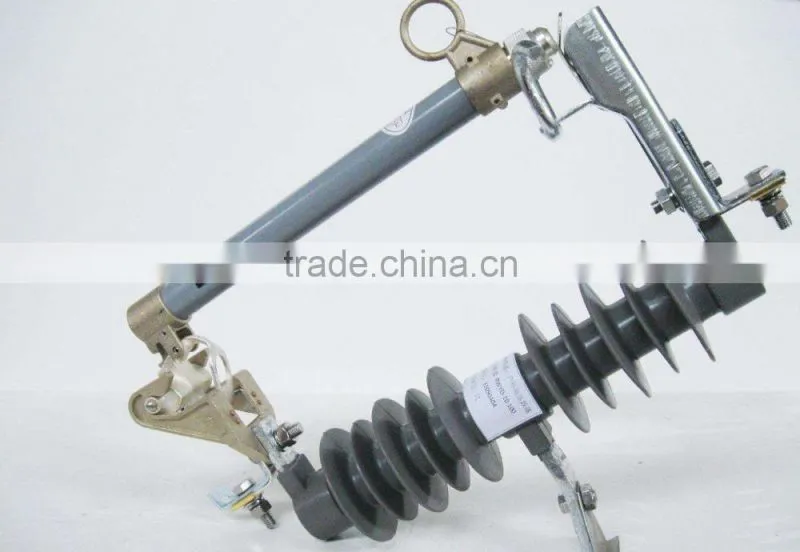

Products pictures
Specifications form
Type |
Rated voltage(KV) |
Rated current(A) |
Breaking current(KA) |
Impulse voltage(KV) |
Power-frequency withstand voltage(KV) |
Leakage distance(MM) |
Weight (KG) |
Size(cm) |
HRW3-10/100 |
10 |
100 |
6.3 |
110 |
42 |
240 |
3.5 |
48*28*11.5 |
HRW3-10/200 |
10 |
200 |
8 |
|
42 |
240 |
3.5 |
|
HRW7-10/100 |
10 |
100 |
6.3 |
110 |
42 |
240 |
5.5 |
48*28*11.5 |
HRW7-10/200 |
10 |
200 |
8 |
|
42 |
240 |
5.5 |
|
HRW10-12/100 |
12 |
100 |
6.3 |
110 |
42 |
350 |
4.9 |
53.5*14*34 |
HRW10-12/200 |
12 |
100 |
8 |
110 |
42 |
350 |
4.9 |
|
HRW11-12/100 |
12 |
100 |
6.3 |
110 |
42 |
230 |
4.4 |
48*28*11.5 |
HRW11-12/200 |
12 |
200 |
8.0 |
110 |
42 |
230 |
4.4 |
|
HRW12-12/100 |
12 |
100 |
6.3 |
110 |
42 |
260 |
5.7 |
61*42*13 |
HRW12-12/200 |
12 |
200 |
8.0 |
110 |
42 |
260 |
5.7 |
