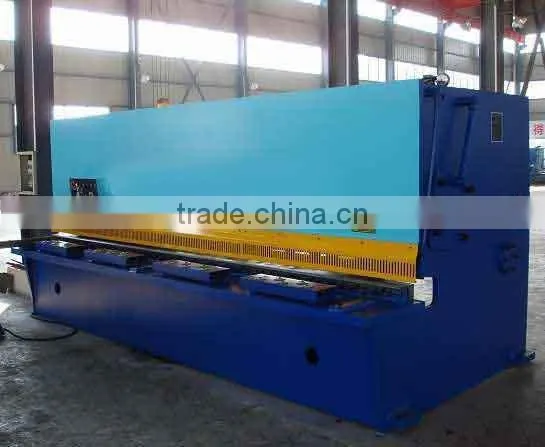

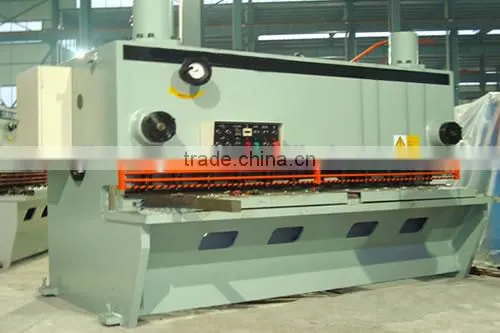

QC12k Series CNC hydraulic swing type shear
- 1500 Set / Sets per Month
- Shanghao Nanjing Wuhu
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Model Number | QC12Y-4x3200 | Voltage | 380 | |
| Rated Power | 60HZ | Dimension(L*W*H) | 3000*1540*1750 | |
| Weight | 4 TON | Certification | CE & ISO | |
| Warranty | 2 years | After-sales Service Provided | Overseas third-party support available |
Product Description
| 1 Company Name: Maanshan Jinheng International Trade Co., Ltd |
| 2 Jinheng-heli is leading supplier: bending machine, press brake, shearing machine, punching machine, power press, Ironworkers, rolling machine and hydraulic press. |
| 3 Official website: |
| 4 Skype: joy2468 |
Introduction to the structure and properties:
This machine adopts steel plate welding structure , have high strength and good durability.
The frame is entirely welded with steel plates,and treated to relive stress by tempering.
Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
The portable and prompt adjusment of the blades gap and the value of gap are indicated by digital, convenient and fast.
Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
Protection fence to ensure the operation safety.
Digital display device for size of back gauge and shearing times available.
The rectangular monoblock blades featuring long life with 4 cutting edges,quality high-carbon high-chrome blades D2 quality. European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany.
The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stability and can ensure the accuracy of displacement of back gauge.
CNC system has the accessory functions of compensation and automatic check.
Technical Specification:
Model | Cutting Thickness | Cutting Length | Cutting angle | Strength | Strokes | Main power | Weight(Approx.) |
(mm) | (mm) | (°) | (KN/CM) | (Time/Min) | (kw) | (kg) |
|
4×2500 | 4 | 2500 | 1°30′ | ≤450 | 10 | 5.5 | 3800 |
4×3200 | 4 | 3200 | 1°30′ | ≤450 | 10 | 5.5 | 5000 |
4×4000 | 4 | 4000 | 1°30′ | ≤450 | 8 | 5.5 | 6500 |
4×6000 | 4 | 6000 | 1°30′ | ≤450 | 5 | 7.5 | 11000 |
6×2500 | 6 | 2500 | 1°30′ | ≤450 | 10 | 7.5 | 5000 |
6×3200 | 6 | 3200 | 1°30′ | ≤450 | 9 | 7.5 | 6000 |
6×4000 | 6 | 4000 | 1°30′ | ≤450 | 8 | 7.5 | 8200 |
6×5000 | 6 | 5000 | 1°30′ | ≤450 | 6 | 7.5 | 10500 |
6×6000 | 6 | 6000 | 1°30′ | ≤450 | 5 | 11 | 16500 |
8×2500 | 8 | 2500 | 1°30′ | ≤450 | 10 | 7.5 | 6000 |
8×3200 | 8 | 3200 | 1°30′ | ≤450 | 8 | 7.5 | 7200 |
8×4000 | 8 | 4000 | 1°30′ | ≤450 | 8 | 7.5 | 8800 |
8×5000 | 8 | 5000 | 1°30′ | ≤450 | 8 | 7.5 | 11500 |
8×6000 | 8 | 6000 | 1°30′ | ≤450 | 8 | 11 | 18000 |
10×2500 | 10 | 2500 | 1°30′ | ≤450 | 9 | 11 | 7300 |
10×3200 | 10 | 3200 | 2° | ≤450 | 9 | 11 | 8000 |
10×4000 | 10 | 4000 | 2° | ≤450 | 8 | 11 | 12050 |
10×6000 | 10 | 6000 | 1°30′ | ≤450 | 5 | 15 | 24000 |
12×2500 | 12 | 2500 | 1°40′ | ≤450 | 9 | 18.5 | 9000 |
12×3200 | 12 | 3200 | 1°40′ | ≤450 | 9 | 18.5 | 10800 |
12×4000 | 12 | 4000 | 1°40′ | ≤450 | 8 | 18.5 | 13000 |
12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 16000 |
12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 29500 |
12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 46500 |
16×2500 | 16 | 2500 | 2°30′ | ≤450 | 9 | 18.5 | 11000 |
16×3200 | 16 | 3200 | 2°30′ | ≤450 | 8 | 18.5 | 13000 |
16×4000 | 16 | 4000 | 2°30′ | ≤450 | 8 | 18.5 | 16300 |
16×5000 | 16 | 5000 | 2°30′ | ≤450 | 6 | 18.5 | 20000 |
16×6000 | 16 | 6000 | 2°30′ | ≤450 | 5 | 22 | 36000 |
16×8000 | 16 | 8000 | 2°30′ | ≤450 | 5 | 22 | 75000 |
20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 15800 |
20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 18500 |
20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 21500 |
20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 47000 |
25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 19000 |
25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 23000 |
30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 23500 |
30×3200 | 30 | 3200 | 3°30′ | ≤450 | 4 | 40 | 26000 |
40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 38000 |
40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 49000 |
