Drilling Machine

Drilling Machine thumbnail-1
Drilling Machine photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Top Asian Resource Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal

Specifications

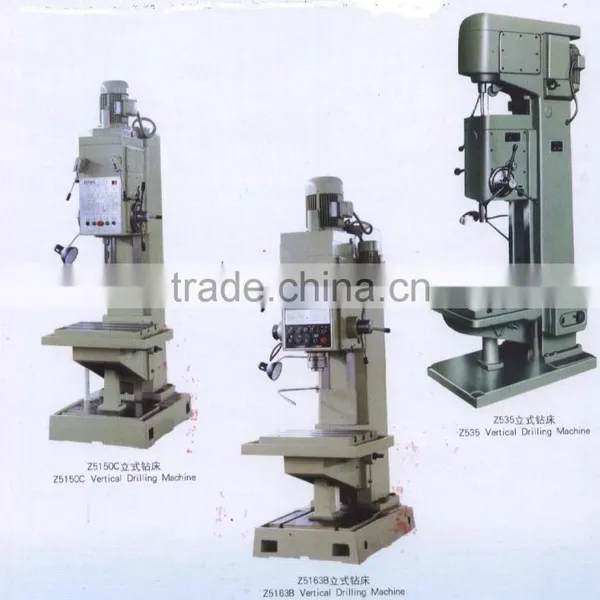

VERTICAL drilling machine



main parameter Z5163B Z5150C Z535
max drilling diameter 63mm 50mm 35mm
max feeding resistance 30000N 16000N 16000N
max allowed spindle torque 800N.m 350N.m 400N.m
spindle taper Morse#5 Morse#5 Morse#4
distance of spidle   375mm 335mm 300mm
centerline
spindle travel 250mm 250mm 225mm
spindle head travel 250mm 200mm 200mm
spindle speed 40-570rpm 45-850rpm 68-1100rpm
  9 steps 9 steps 9 steps

feed rate 0.1-0.78(6) 0.056-1.80(9) 0.11-1.60(11)
table travel 300mm 300mm 325mm
working table area 650x550mm 480x560mm 450x500mm
distance from spindle 800(1250)mm 750mm 750mm
to table surface
main motor 5.5kw 4kw 4kw
flow of cooling pump 25 LM 25 LM 25 LM
overall dimension (mm) 965x1452x2787 1040x905x2535 1280x842x2590
net weight 2500kg 1300kg 1600kg
