Drilling Machine

Drilling Machine thumbnail-1
Drilling Machine photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Model Number:
Z3063x20, /25, Z3080X20, /25
Contact Supplier Request Quote Chat Now
Top Asian Resource Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Model Number Z3063x20, /25, Z3080X20, /25

Specifications

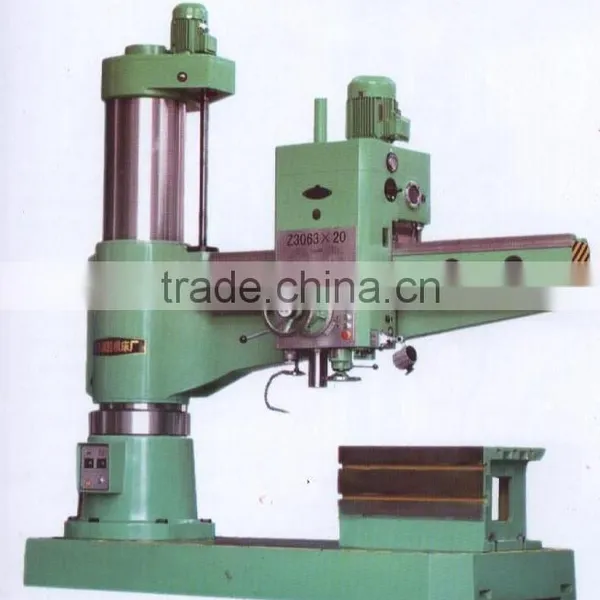

radial drilling machine

modle# Z3063x20 Z3063x25 Z3080x20 Z3080X25/1
column    450mm    450mm    450mm    450mm
max.drilling capacity 63/85mm 63/85mm 80-105mm 80-105mm
distance from spindle center to column surface 450-2050mm 450-2550mm 450-2050mm 450-2550mm
distance from spindle nose to base surface 400-1600mm 400-1600mm 343-1543mm 343-1543mm
spindle taper MT5 MT5 MT6 MT6
vertical travel of pindle 400mm 400mm 400mm 400mm
spindle speed and steps                 16-1250r/min, 16
spindle feeds and steps                 0.04-3.30mm/r ,16
main motor 5.5KW 5.5KW 7.5KW 7.5KW
machine weight(net) 6600kg 7200kg 6630kg 7230kg
overall dimension ( LxWxH)mm 3090x1250x3210 3590x1250x3210 3090x1250x3210 3590x1250x3210
