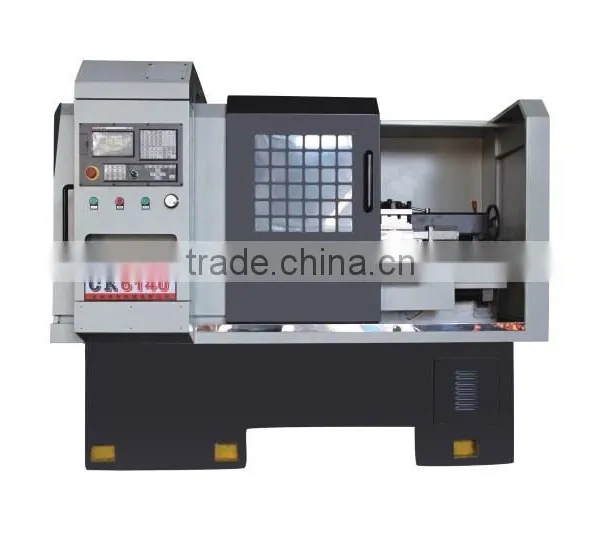

Help CenterCNC Lathe
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Semi-Automatic
Max. Swing Diameter
418mm
Place of Origin
Zhejiang, China
Brand Name
RANSHENG
Model Number
CK6140*750mm
Voltage
380
Power(W)
5.5kw
Dimension(L*W*H)
1950*1100*1680mm
Weight
1900kgs
After-sales Service Provided
Engineers available to service machinery overseas
| Item | CK6140 | ||||
| Max,swing over cross slide | Φ418mm | ||||
| Maximum length of workpiece | Φ400mm | ||||
| Maximum diameter of bar stocks | Φ50mm | ||||
| Maximum turning diameter of tool rurret(electric toolchanger/Combo type tool) | Φ260mm | ||||
| Max,machining length | 750mm | ||||
| Metric thread range | 0.25-12mm | ||||
| Inch thread range | 28-3 1/2'' | ||||
| From guideway of lathe(bed to centerline of the spindle) | 210mm | ||||
| Spindle speed range | 5-2000r/min | ||||
| X-axis maximum length of travel of knife rest | 220mm | ||||
| Z-axis maximum length of travel of knife rest | 750mm | ||||
| Feed speed in axis X(stepless) | 5-1000mm/min | ||||
| Feed speed in axis Z(stepless) | 10-3000mm/min | ||||
| X-axis rapid moving speed | 4000mm/min | ||||
| Z-axis rapid moving speed | 6000mm/min | ||||
| Sectional area of tool bar | 25*25mm | ||||
| Distance between centerline of spindle and supporting surface of tool | 25mm | ||||
| Taper of the tailstock | No4 | ||||
| Max travel of the tailstock | 120mm | ||||
| Power of main motor | 5.5kw | ||||
| Lathe's dimension(LxWxH) | 1950*1100*1680mm | ||||
| Net weight | 1900kgs | ||||
