Specifications
PE needle felt liquid filter bagmicron:1,5,10,20,50,75.100,150,200,500um
shpe, size can customize
hot melt or sewing seam

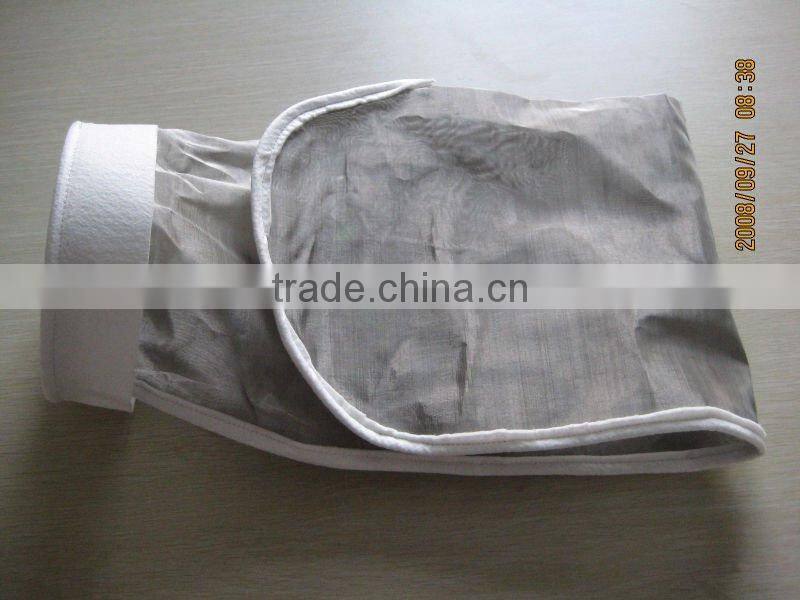

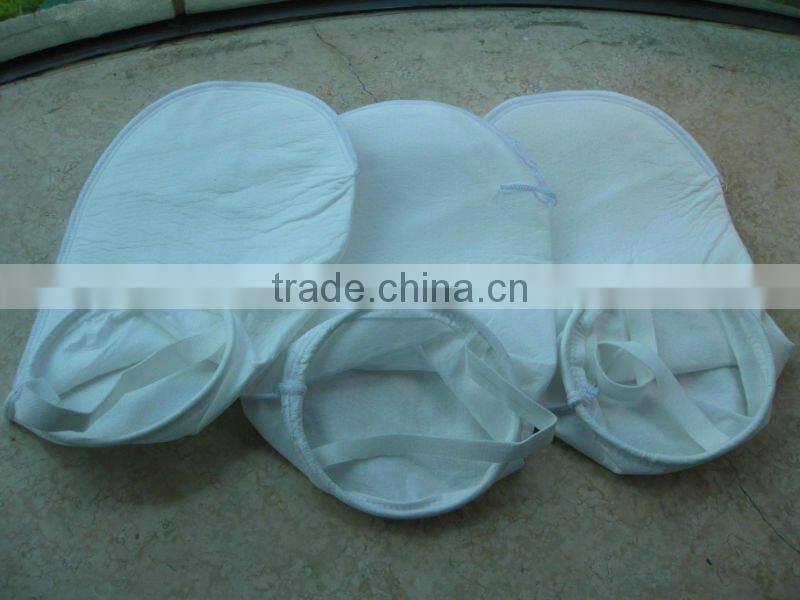

PE needle felt liquid filter bag

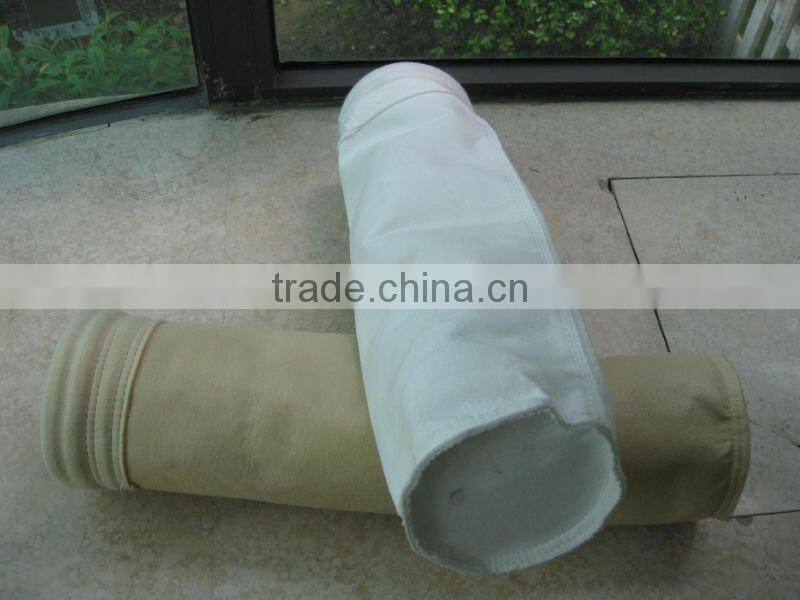

pp needle felt Dust collector filter bag, air filter
Shangshai shangshai Bolting cloth manufacturing co., Ltd is a professional manufacturer for all kinds of filter cloth or bags, PP, PE, NMO, needle felt are adopted as material. These bags are widely used in medical, biology, food, brewage, steel, shipping, electricity, paint, ceramic, tobacco and water treatment system etc.
Material introduction:
PP/PE needle felt microns: 1(12500mesh),5(2500mesh),10(1250mesh),15(800mesh),25(500mesh),50(280emsh),100(140emsh),150(100mesh),200(76mesh),300(50mesh)
NMO: 35(400mesh),50(270 mesh),80(200 mesh),100(140 mesh),125(120 mesh),150(100 mesh),200(76 mesh),250(60 mesh),300(50 mesh),400(40 mesh),600(30 mesh),800(15 mesh),1000(7 mesh)
Specifications
Name |
PP |
PE |
NMO |
Fibre |
100%PE |
100%PP |
100%NMO |
Weight |
600-350g/m2 |
600-350g/m2 |
70-120g/m2 |
thickness |
2.3-1.7mm |
2.3-1.7mm |
0.08-0.2mm |
Precision/ density |
0.5-400μm |
0.5-400μm |
15-2000μm |
Air-permeability |
15-300L/dm2.min |
15-300L/dm2.min |
75-800L/dm2.min |
Break strength -longitude |
≥1200 N/5cm |
≥1200 N/5cm |
≥1000 N/5cm |
Break strength - Horizontal |
≥1500N/5cm |
≥1500N/5cm |
≥1200N/5cm |
Elongation@200N/5cm- longitude |
≤5% |
≤5% |
≤6% |
Elongation@200N/5cm- Horizontal |
≤5% |
≤5% |
≤5% |
Heat shrinkage @ 150 deg C, 90min |
≤1% |
≤1% |
≤2% |
bursting strength |
≥300 N/cm2 |
≥300 N/cm2 |
≥300 N/cm2 |
Series working Temperature |
100°C |
130°C |
130°C |
Instant working Temperature |
130°C |
150°C |
150°C |
aftertreatment |
Heat shape,cire |
Heat shape,singeing |
hot-pressing shape |
craftwork |
Needle felt |
Needle felt |
woven |
Bag size
Type |
Dia.& length(mm) |
Max flow M3/H |
Filter area |
Volume (L) |
1# |
180*140 |
20 |
0.25 |
8 |
2# |
180*820 |
40 |
0.5 |
17 |
3# |
100*230 |
10 |
0.15 |
1.3 |
4# |
100*420 |
18 |
0.2 |
2.5 |
5# |
152*520 |
12 |
0.18 |
8 |
Craft: full jointing; full seam; bottom heat melt with ring seam, bottom seam with ring heat-melt, bottom seam with ring joint

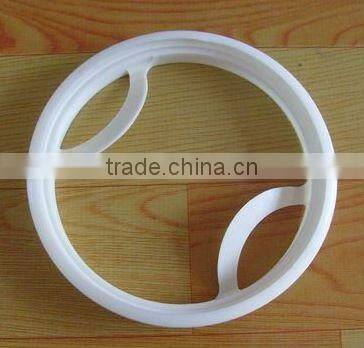

material |
Ring material |
Precision |
Applied bags |
PP |
SS, galvanized, PP |
1.5.10.25.50.100.200 |
1#~5# |
PE |
SS, galvanized, PP |
1.5.10.25.50.100.200 |
1#~5# |
NMO |
SS, galvanized, PE |
25.50.80.100.125.150.200.250.300.400.600.800 |
1#~5# |
other bags
